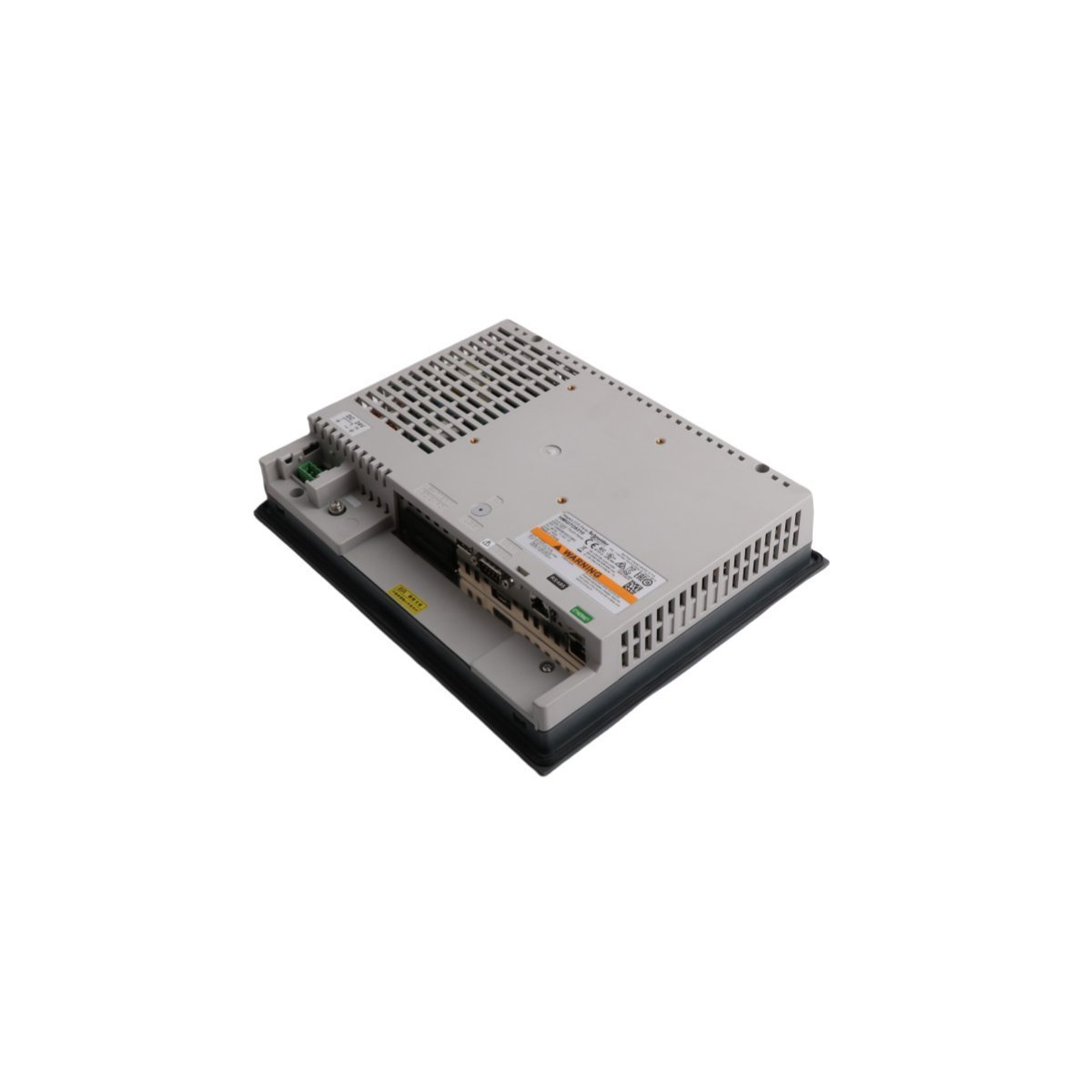

Schneider Electric HMIGTO5310 Magelis GTO Advanced Touchscreen

Product Overview

The Schneider Electric HMIGTO5310 drives the visualization strategy for the Magelis GTO range. This 10.4-inch color TFT touchscreen provides a high-performance window into industrial processes, enabling operators to control systems and visualize complex data in real-time. By combining a high-resolution VGA display with extensive connectivity, the HMIGTO5310 optimizes machine performance and streamlines diagnostic tasks in automated environments.

Core Functional Capabilities

• Renders High-Clarity Graphics: The 10.4-inch TFT LCD screen delivers a 640 x 480 pixel resolution (VGA) and supports 65,536 colors. These features ensure that operators view sharp process graphics, trend graphs, and alarm notifications under diverse lighting conditions.
• Accelerates Data Processing: The unit utilizes 96 MB of flash memory and 512 kB of internal RAM to manage complex HMI projects and high-speed data logging. This hardware prevents screen transition delays and maintains consistent system responsiveness.
• Expands Memory via SD Architecture: An integrated SD/SDHC card slot accommodates up to 32 GB of external storage. This allows the HMI to archive large alarm histories, recipe data, and project backups without consuming internal resources.
• Orchestrates Multi-Protocol Communication: Built-in Ethernet (10/100BASE-TX), RS232C (COM1), and RS485 (COM2) ports facilitate high-speed data exchange with numerous PLCs. The module supports Modbus and Modbus TCP natively while also communicating with third-party systems from Siemens, Rockwell, and Mitsubishi.
• Defeats Industrial Stressors: The front panel meets IP65 standards, which shields the internal electronics from dust and pressurized water jets. This rugged construction allows the HMIGTO5310 to thrive in wash-down areas and harsh manufacturing zones.

Technical Specifications

• Brand: Schneider Electric
• Model: HMIGTO5310
• Product Series: Magelis GTO
• Display: 10.4-inch Color TFT LCD
• Resolution: 640 x 480 Pixels (VGA)
• Touch Technology: Resistive Film (Single-touch)
• Input Voltage: 24 VDC
• Communication Interfaces: 1x Ethernet, 1x RS232C, 1x RS485, 2x USB (Mini & Type A)
• Net Weight: 1.9 kg
• Physical Dimensions: 27.25 cm x 21.45 cm x 5.7 cm
• Manufacturing Origin: France

Industrial Implementation

Engineers integrate the HMIGTO5310 into sectors that demand intuitive control and robust data management, including food and beverage, pharmaceutical packaging, and water treatment. Because the HMI utilizes Vijeo Designer software, developers build sophisticated interfaces that include remote monitoring via web servers. This capability allows maintenance teams to access HMI screens from tablets or PCs, which drastically reduces the time needed to diagnose and resolve field issues.
