  4. Schneider Electric HMIGTO6310 Harmony GTO Advanced Touchscreen
Sale!
SKU: HMIGTO6310

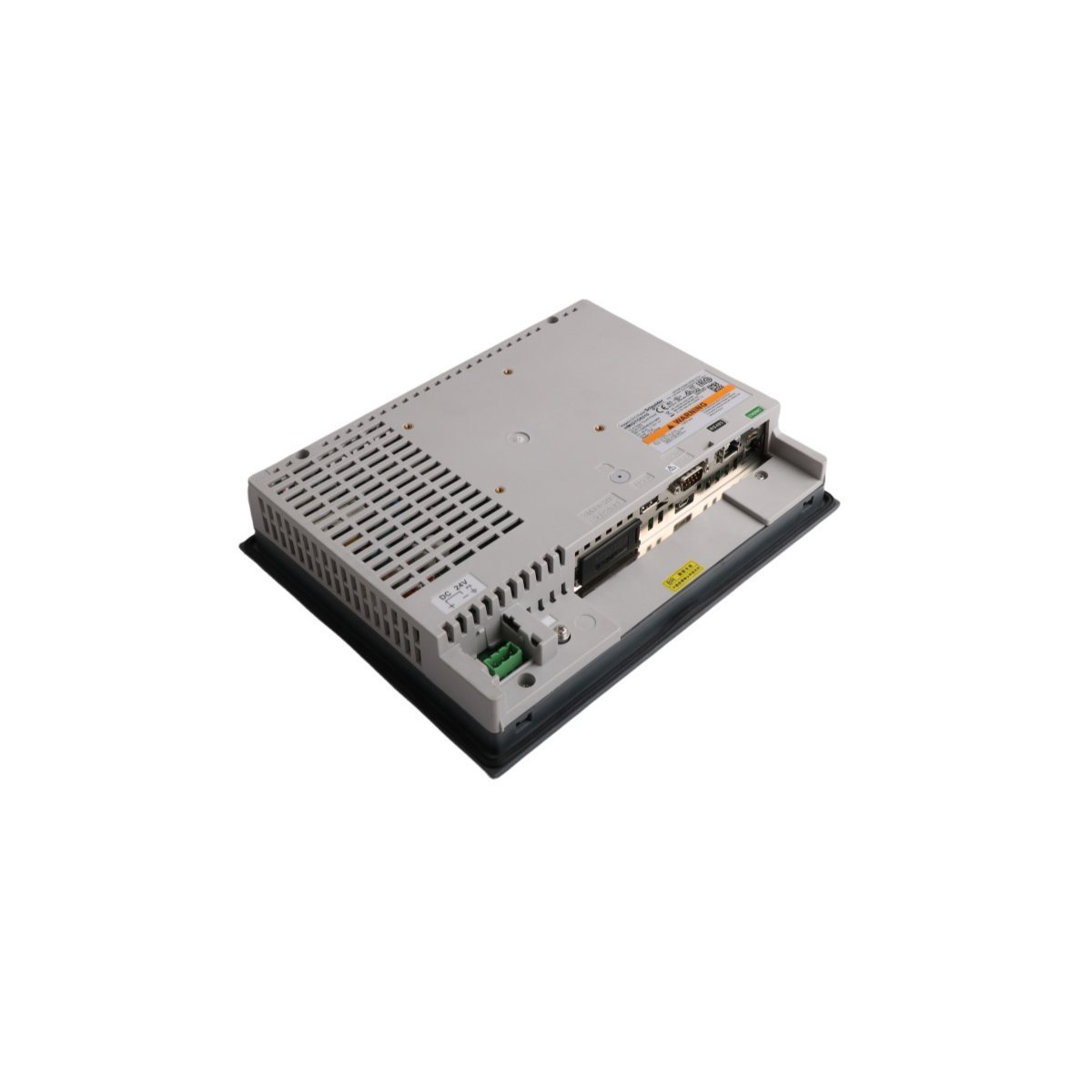

Schneider Electric HMIGTO6310 Harmony GTO Advanced Touchscreen

The Schneider Electric HMIGTO6310 is a high-performance 12.1-inch Harmony GTO advanced touchscreen. It delivers SVGA resolution with 65,536 colors, features 96MB of Flash memory, and supports Ethernet/IP and Modbus protocols. This French-manufactured industrial panel provides the large-scale visualization and data retention required for complex PLC-driven automation systems.

Request a Quote

Product Overview

The Schneider Electric HMIGTO6310 serves as a premium operator interface within the Harmony (formerly Magelis) GTO series. This 12.1-inch color TFT touchscreen anchors industrial visualization strategies by providing a large, high-resolution SVGA display. By utilizing a 65,536-color palette and a precision 1024×1024 touch zone, the HMIGTO6310 empowers operators to monitor complex automated systems with superior clarity and tactile accuracy.

Core Functional Capabilities

  • Powering High-Definition Visualization: The 12.1-inch TFT display renders 800 x 600 SVGA resolution. This capability ensures that operators see vivid graphics and detailed process data even in high-glare industrial environments.
  • Managing Robust Data Backup: The unit utilizes 96MB of Flash EPROM for project storage and 512KB of internal RAM for data backup. An integrated lithium battery maintains SRAM data for up to 100 days, which prevents data loss during extended power cycles.
  • Handling Extreme Power Dynamics: The HMI accepts a 24V DC input (range 19.2 to 28.8V) and manages an inrush current of up to 30A. This electrical resilience allows the panel to operate stably within panels containing high-power switching components.
  • Resisting Environmental Stress: The hardware withstands temperatures from 0°C up to 55°C and operates in non-condensing humidity up to 90%. Its rugged French-engineered chassis defeats vibration and shock, ensuring reliability on the factory floor.
  • Simplifying Protocol Integration: The HMI supports standard industrial protocols like Modbus, Modbus TCP, and Ethernet/IP. Consequently, developers can connect the HMIGTO6310 to a wide range of PLCs and field devices without complex custom coding.

Technical Specifications

  • Brand: Schneider Electric
  • Model Designation: HMIGTO6310
  • Product Range: Harmony GTO (Magelis)
  • Screen Size: 12.1-inch Color TFT LCD
  • Resolution: 800 x 600 Pixels (SVGA)
  • Memory: 96 MB Flash / 512 KB RAM
  • Supply Voltage: 24 VDC
  • Communication Interfaces: 1x Ethernet, 1x RS232C, 1x RS485, 2x USB
  • Weight: 2.5 kg
  • Physical Dimensions: 31.5 cm x 24.1 cm x 5.6 cm
  • Origin: France

Industrial Implementation

Engineers specify the HMIGTO6310 for large-scale automation projects in manufacturing, energy management, and process control. Because the panel integrates seamlessly with Vijeo Designer software, system integrators build sophisticated user interfaces that include alarm management, trend analysis, and remote web-server access. This connectivity allows maintenance teams to view real-time HMI screens from mobile devices, which significantly reduces the mean time to repair (MTTR) for critical machinery.
