SKU: 2711P-T15C22D9P

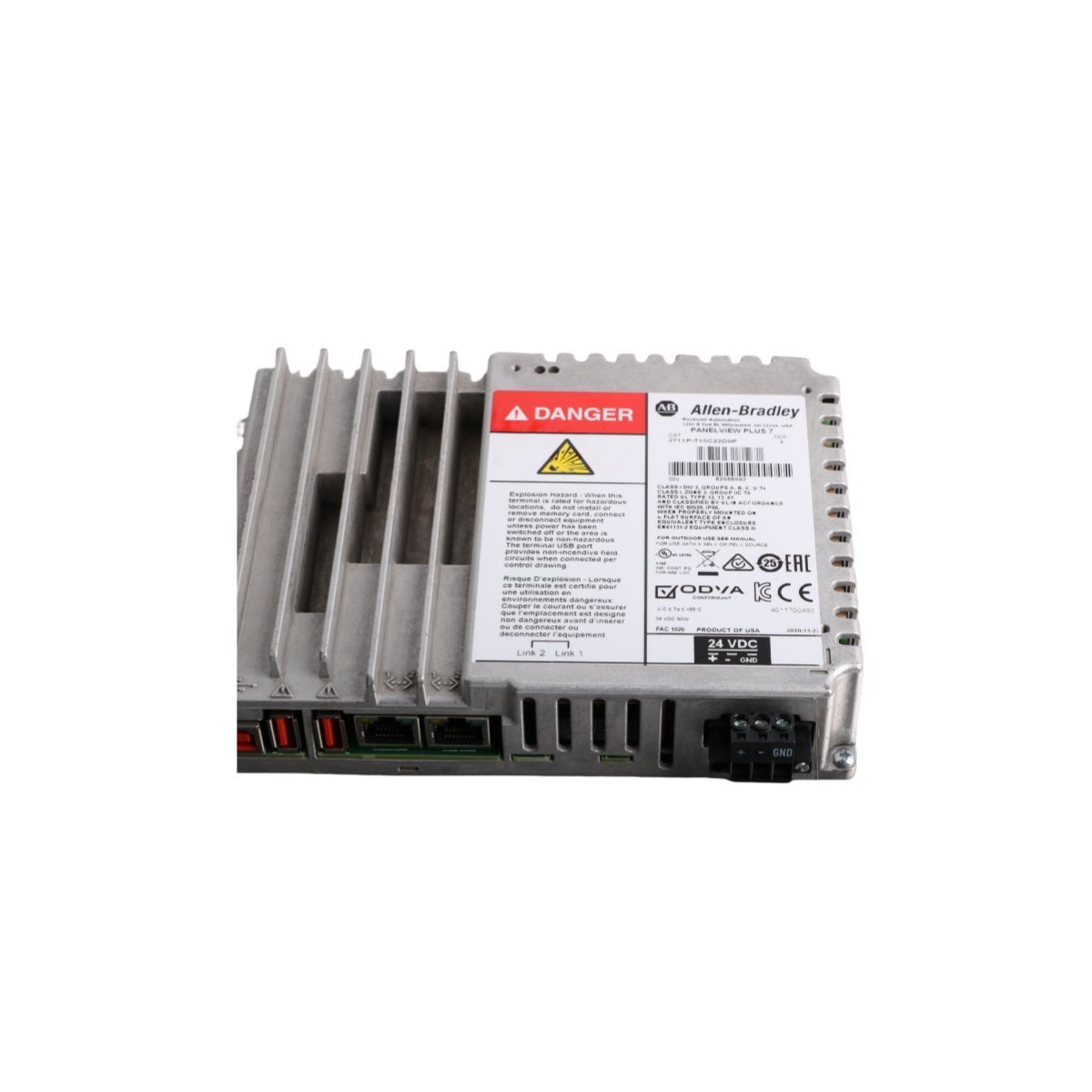

Allen Bradley 2711P-T15C22D9P PanelView Plus 7 Performance HMI Terminal

The Allen Bradley 2711P-T15C22D9P is a 15-inch PanelView Plus 7 Performance graphic terminal featuring a high-resolution touchscreen, dual Ethernet ports for DLR support, and a Windows 10 IoT Core OS for advanced industrial visualization.

Request a Quote

Product Overview

The Allen Bradley 2711P-T15C22D9P functions as a premier Human-Machine Interface (HMI) within the PanelView Plus 7 Performance series. Specifically, this terminal facilitates advanced visualization and streamlined control for complex industrial automation systems. By utilizing a 15-inch color touch display, the unit allows operators to monitor real-time data while managing machine health across the plant floor. Furthermore, because it integrates seamlessly with Logix-based controllers, this device serves as a critical node for data exchange and process management in EtherNet/IP environments.

Technical Capabilities and Hardware

  • Display Performance: The 15-inch XGA TFT color display features a resistive touchscreen interface, providing a resolution of 1024 x 768 to ensure high-clarity graphics. Consequently, users can monitor detailed process trending with ease.
  • Processing Power: Equipped with a 1.5 GHz dual-core processor and 2 GB of RAM, the terminal executes demanding FactoryTalk View Machine Edition (ME) applications. As a result, the system handles complex animations with minimal latency.
  • Network Architecture: Regarding connectivity, the dual Ethernet ports support multiple network configurations. For instance, the hardware enables Device Level Ring (DLR) for enhanced media redundancy, in addition to supporting standard linear and star topologies.
  • Operating System: Beyond standard HMI functions, the unit operates on Windows 10 IoT Core. This platform provides additional versatility, such as VNC support and web browsing, while also offering integrated PDF viewing for digital manuals.
  • Environmental Resilience: With an IP66 and NEMA 4X rating, the front bezel resists ingress from water and dust. Therefore, the terminal remains reliable even when installed in rigorous washdown environments.

Primary Applications

Industrial facilities typically deploy the 2711P-T15C22D9P in sectors requiring large-scale visualization and high-speed data processing. For example, it excels in food and beverage processing, chemical manufacturing, and complex packaging lines. Moreover, the terminal’s ability to handle high-tag counts makes it an ideal solution for centralized SCADA integration, particularly where multiple machine states must be supervised simultaneously.

Technical Specifications

  • Manufacturer: Allen Bradley / Rockwell Automation
  • Model Number: 2711P-T15C22D9P
  • Input Type: Analog Resistive Touch
  • Display Size: 15-inch Wide
  • Power Input: 24V DC
  • Memory Configuration: 2 GB RAM / 4 GB Storage
  • Communication Interface: Dual Port EtherNet/IP
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
