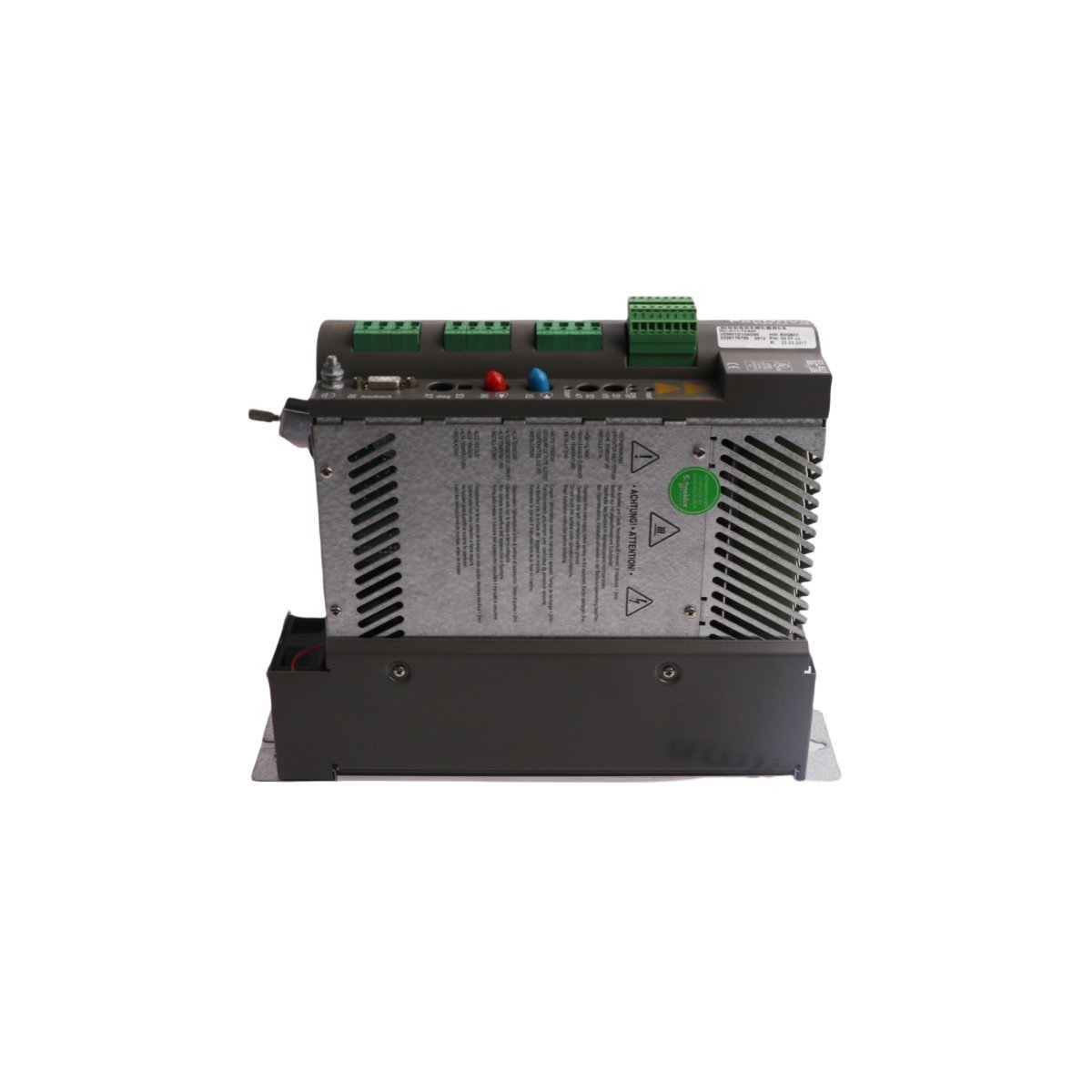

Schneider Electric MC-4/11/10/400 (HW: E0R603 SW:V00.12.XX) AC PacDrive

Product Overview

The Schneider Electric MC-4/11/10/400 operates as a high-performance servo drive controller within the specialized PacDrive™ automation system. Specifically designed for the rigorous demands of packaging machinery, this unit coordinates complex motion tasks across multiple axes. It utilizes a robust hardware platform (HW: E0R603) and optimized firmware (SW:V00.12.XX) to bridge the gap between central logic controllers and individual servo motors. By centralizing motion intelligence, the MC-4 ensures that high-speed production lines maintain perfect synchronization and maximum throughput.

Functional Capabilities

• Coordinates Multi-Axis Motion: The drive manages up to 40 axes of motion when integrated into the PacDrive ecosystem. Consequently, it enables complex mechanical movements, such as electronic camming and robotic kinematics, within a single synchronized environment.
• Executes Real-Time Communication: This module utilizes the SERCOS interface to maintain a 4MBaud real-time bus communication rate. By doing so, it guarantees that command signals reach servo motors with sub-millisecond precision, which is vital for high-speed jitter-free operation.
• Facilitates Network Integration: The MC-4 supports various fieldbus standards, including PROFIBUS-DP and CANopen. Therefore, it allows the packaging machine to exchange critical data with factory-level supervisory systems and peripheral hardware seamlessly.
• Supports Remote Diagnostics: Integrated Ethernet ports allow the unit to communicate via the TCP/IP protocol. As a result, engineers can perform remote troubleshooting and firmware updates, significantly reducing the need for on-site maintenance visits.
• Simplifies Programming: The drive interfaces directly with the EPAS-4 programming environment. Following IEC 61131-3 standards, this allows developers to write and deploy motion profiles using standardized industrial languages, which speeds up the commissioning phase.

Technical Specifications

• Manufacturer: Schneider Electric
• Model Number: MC-4/11/10/400
• Hardware Version: E0R603
• Software Version: V00.12.XX
• Module Type: AC PacDrive Servo Drive
• Communication Bus: SERCOS, PROFIBUS-DP, CANopen
• Programming Standard: IEC 61131-3 (EPAS-4)
• Weight: 3.54 kg
• Dimensions: 6.8 x 24.5 x 31.0 cm

Primary Applications

Process engineers and machine builders routinely integrate the MC-4/11/10/400 into high-availability environments. For example:

• High-Speed Packaging: It drives the precise movements of filling, capping, and wrapping machines where timing errors of a few milliseconds can result in significant product waste.
• Labeling Systems: The module coordinates the high-speed application of labels onto moving containers, ensuring perfect alignment even at variable conveyor speeds.
• Robotic Pick-and-Place: It powers the multi-axis delta robots used for secondary packaging, allowing for rapid and gentle handling of delicate goods.
• Legacy Machine Upgrades: Because this unit maintains backward compatibility, it serves as an ideal replacement part for older PacDrive systems that require a hardware refresh without changing the existing control logic.
