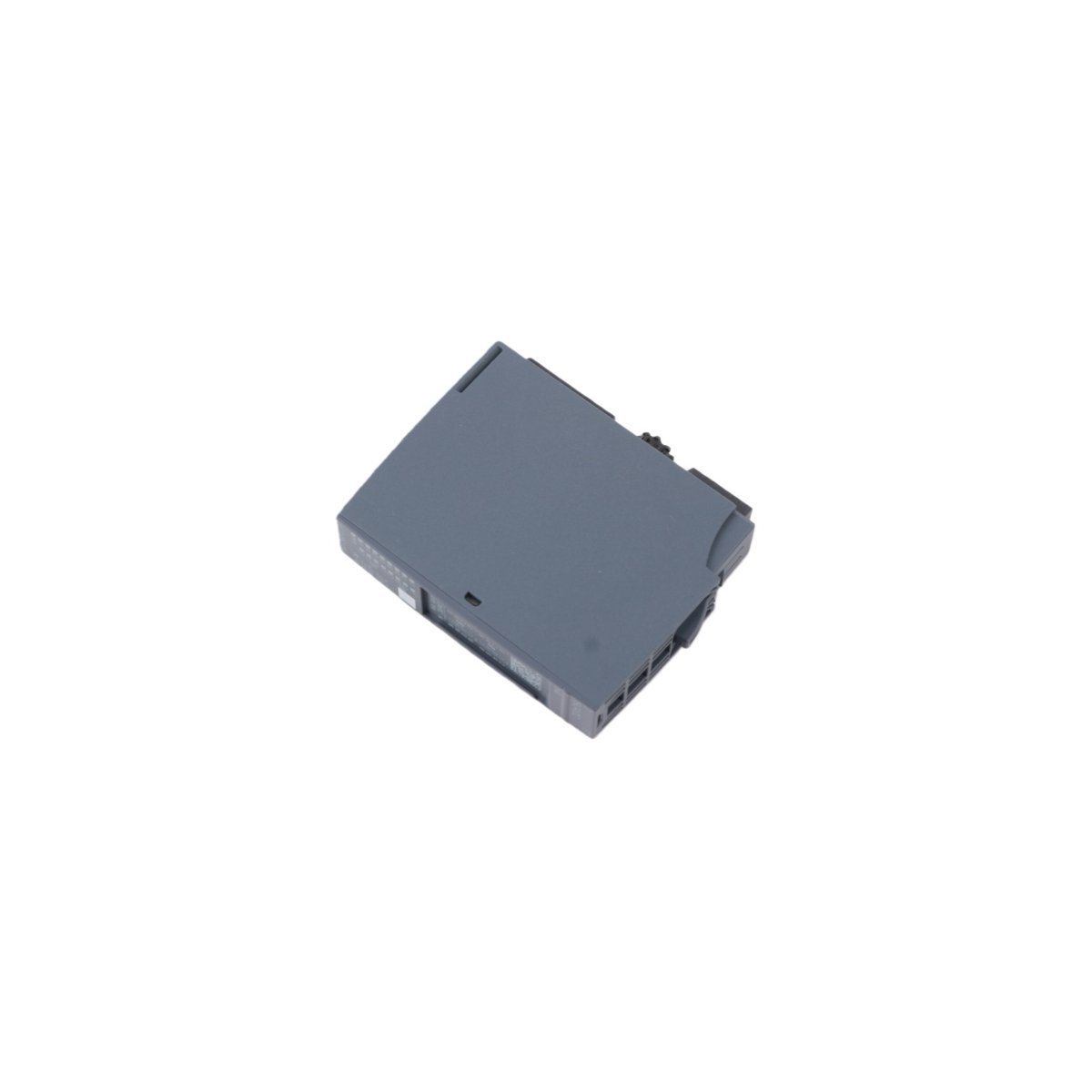

The Siemens 6ES7131-6BH01-0BA0 is a 16-channel digital input module for the SIMATIC ET 200SP system. It features 24V DC Type 3 inputs, adjustable signal filtering, and comprehensive diagnostics in a compact 15mm wide form factor.
The Siemens 6ES7131-6BH01-0BA0 belongs to the high-performance SIMATIC ET 200SP distributed I/O family. This specific electronic module provides 16 digital input channels designed for 24V DC signals, following the “Standard” (ST) functional class. By utilizing a high-density design, it allows engineers to monitor up to 16 separate field devices—such as sensors, switches, or limit contacts—while occupying a mere 15mm of width on the rail. Furthermore, the module employs sink input (PNP) logic and complies with IEC 61131 Type 3 requirements, ensuring reliable signal detection even in electrically noisy industrial environments.
Control system designers prefer the 6ES7131-6BH01-0BA0 because it actively simplifies maintenance through integrated diagnostic interrupts. For instance, the module detects a lost supply voltage or a wire break and immediately reports these faults to the CPU via the backplane bus. Moreover, the hardware supports Identification & Maintenance (I&M) data (I&M0 to I&M3), which enables digital tracking of serial numbers and installation dates. Because the module allows for the adjustment of input filter times, users can effectively eliminate signal “chatter” from mechanical contacts or high-speed interference from nearby power cables.
