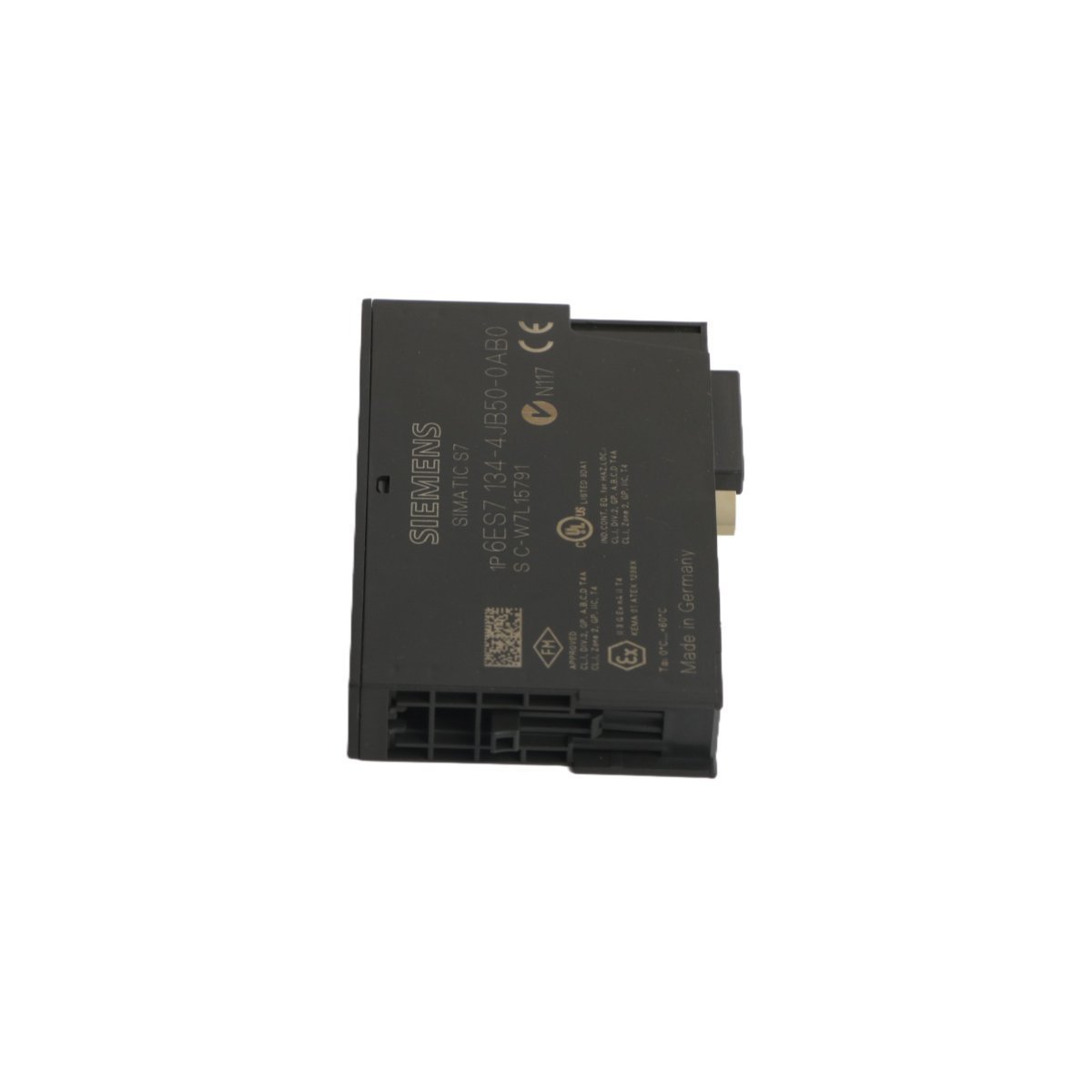

Siemens 6ES7134-4JB50-0AB0 Analog Input Module

The Siemens 6ES7134-4JB50-0AB0 is a 2-channel RTD analog input module for ET 200S. It supports Pt100/Ni100 sensors with 15-bit precision.

The Siemens 6ES7134-4JB50-0AB0 is a specialized expansion unit for the SIMATIC ET 200S distributed I/O system. This module provides two high-resolution channels for resistance-based temperature sensing. It integrates seamlessly into PROFIBUS and PROFINET networks via the interface module. Consequently, engineers can monitor critical thermal processes across large industrial facilities. The unit features a slim 15mm design to save valuable space inside control cabinets.

This analog input module converts signals from resistance thermometers into digital values for the CPU. It supports various sensor types and resistance ranges for maximum flexibility. Furthermore, built-in diagnostics help operators identify wiring faults or sensor failures immediately. This ensures high system availability in automated production lines and processing plants.

Technical Specifications and Operating Data

Feature	Specification Details
Brand	Siemens
Product Family	SIMATIC DP / ET 200S
Order Number	6ES7134-4JB50-0AB0
Module Type	Analog Input (RTD)
Number of Channels	2
Measurement Resolution	15 bits + sign
Cycle Time	110 ms per channel
Sensor Support	Pt100, Ni100, Resistance (150Ω, 300Ω, 600Ω)
Module Width	15 mm
Weight	0.04 kg (Net weight)

Functional Capabilities

High-Resolution Temperature Measurement

The 6ES7134-4JB50-0AB0 utilizes a 15-bit resolution to capture minute temperature fluctuations. This precision makes it suitable for demanding thermal applications. It supports standard and climatic versions of Pt100 and Ni100 sensors. Therefore, the module provides accurate data for both ambient and high-heat environments.

Advanced Diagnostic Feedback

Safety and reliability remain central to the design of this Siemens module. An integrated group fault LED alerts personnel to operational errors. The software also provides detailed diagnostics regarding wire breaks or overflow conditions. As a result, maintenance teams can resolve issues without extensive manual testing.

Noise Suppression and Signal Integrity

Industrial environments often contain significant electromagnetic interference. This module includes robust noise suppression features to protect signal integrity. It filters common-mode interference and power line frequencies effectively. Consequently, the PLC receives clean data even when cables run near high-voltage equipment.
