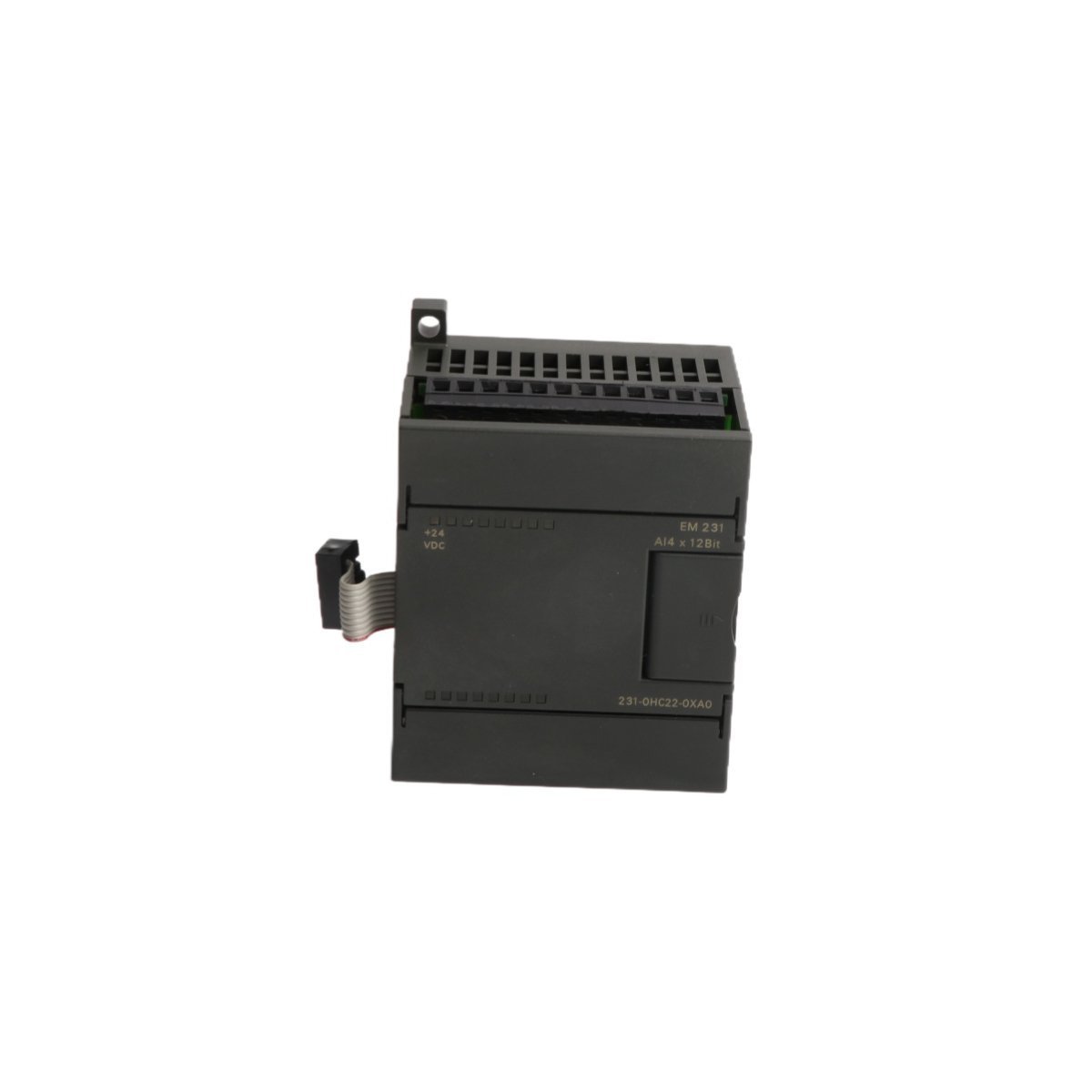

Siemens 6ES7231-0HC22-0XA0 EM231 Analog Input Module
Sale!
SKU: 6ES7231-0HC22-0XA0 EM231
Siemens 6ES7231-0HC22-0XA0 EM231 Analog Input Module
The Siemens 6ES7231-0HC22-0XA0 is a 4-channel analog input module for S7-200 PLCs. It features 12-bit resolution and supports 0-10V or 0-20mA signals for precise industrial data acquisition and process monitoring.
The Siemens 6ES7231-0HC22-0XA0 is a precision EM 231 analog expansion module. This hardware specifically enhances the SIMATIC S7-200 PLC system capabilities. It enables the controller to process continuous physical variables from the field. Furthermore, the module converts analog signals into digital values for the CPU. Its compact 4-channel design allows for efficient I/O expansion. Engineers choose this module for its high resolution and fast conversion times. Consequently, it remains a vital component for legacy S7-200 automation architectures.
Functional Characteristics
This analog input module supports various voltage and current ranges. Users can configure the input types via DIP switches located on the unit. Additionally, the module features high-quality noise suppression for signal integrity. The 6ES7231-0HC22-0XA0 provides exceptional galvanic isolation between the PLC and the process. This protection prevents electrical surges from damaging the central processing unit. Moreover, the integrated status LEDs provide immediate feedback on the module health. Because of its robust internal filtering, it delivers stable data in electrically noisy environments.
Technical Specifications
Feature
Details
Manufacturer
Siemens
Order Number
6ES7231-0HC22-0XA0
Module Series
SIMATIC S7-200 / EM 231
Input Channels
4 Analog Inputs
Signal Ranges
0-10V, 0-20mA (Configurable)
Resolution
12-bit A/D Conversion
Power Consumption
20 mA from Backplane / 60 mA from 24V DC
Weight
0.18 kg
Dimensions
71 x 80 x 62 mm
Industrial Applications and Installation
Monitoring temperature sensors and pressure transmitters in processing plants.
Measuring flow rates in water treatment and chemical systems.
Capturing level sensor data for storage tank management.
Tracking motor speeds and valve positions in assembly lines.
