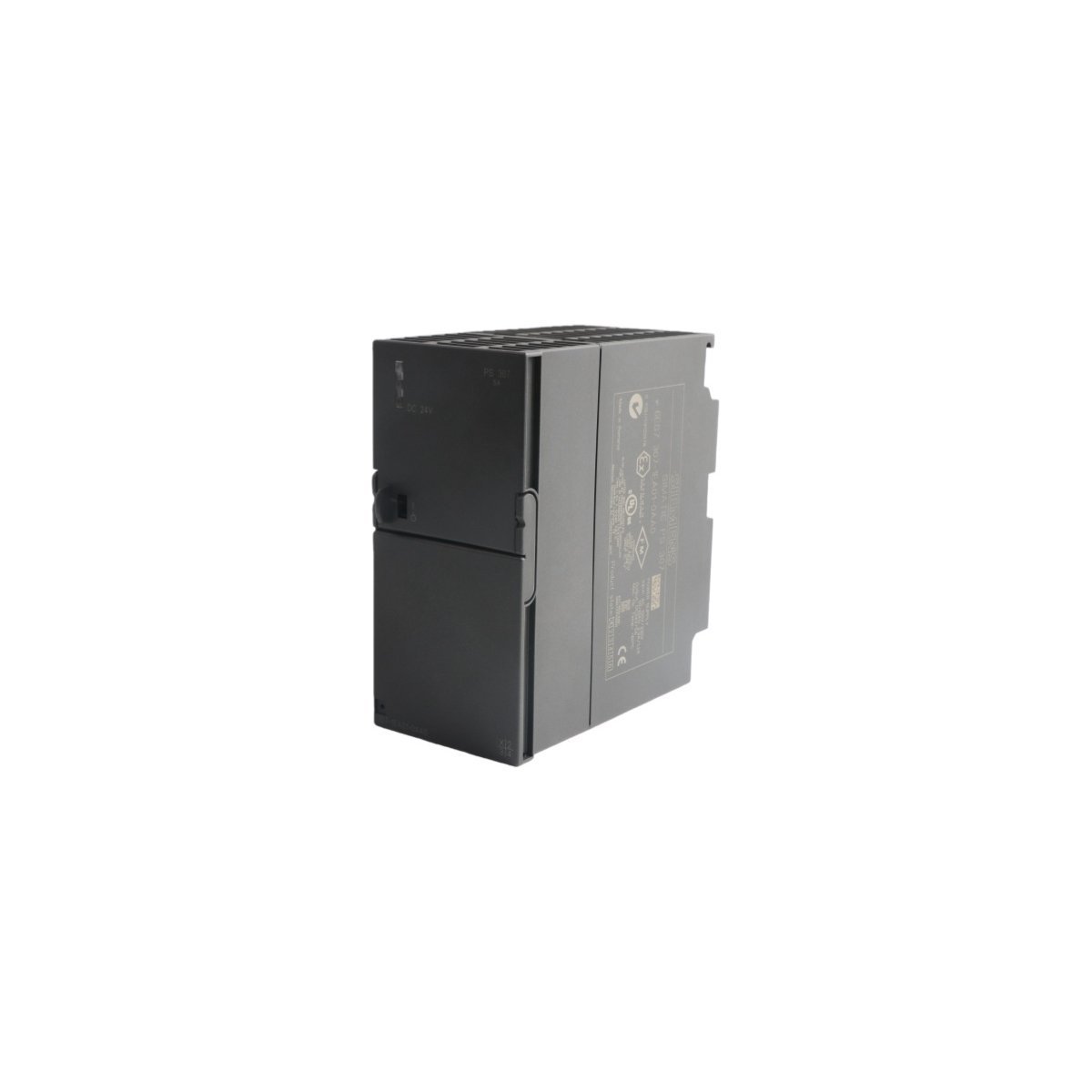

The Siemens 6ES7307-1EA01-0AA0 is a high-performance 5-Ampere PS-307 power supply designed for the SIMATIC S7-300 series. Featuring auto-ranging 120/230 VAC input and stabilized 24 VDC output, this compact rail-mounted module provides reliable energy distribution and integrated short-circuit protection for industrial PLC applications.
The Siemens 6ES7307-1EA01-0AA0 operates as a specialized Load Power Supply within the SIMATIC S7-300 PLC ecosystem. This module functions as the primary power source for the S7-300 backplane and the connected I/O modules, converting a single-phase AC input into the stabilized 24 VDC required for industrial logic. Because it utilizes a compact 60mm housing, the PS-307 integrates seamlessly onto the standard S7 rail alongside the CPU and signal modules. By delivering a consistent 5-Ampere output, this power supply provides sufficient energy for medium-density automation racks while maintaining high efficiency and low heat dissipation.
The 6ES7307-1EA01-0AA0 manages electrical stability by employing advanced primary switched-mode technology. To facilitate global usage, the module features an auto-ranging input that accommodates both 120 VAC and 230 VAC power grids. Furthermore, the unit incorporates a “static-power” boost capability, which allows it to handle brief inrush currents from capacitive loads without triggering a system shutdown. Moreover, since the PS-307 features comprehensive electronic short-circuit protection, it automatically resets once a field fault is cleared, minimizing downtime for maintenance teams.
To further increase system reliability, the module provides galvanic isolation between the primary and secondary circuits, effectively shielding the PLC hardware from line-side electrical surges. In addition to its power conversion tasks, the unit features a front-panel LED to indicate the status of the 24 VDC output at a glance. Consequently, this visual diagnostic tool helps technicians quickly verify power health during troubleshooting. As a result, the 6ES7307-1EA01-0AA0 serves as a foundational component for ensuring the uptime of automated systems in manufacturing, automotive assembly, and water management sectors.
