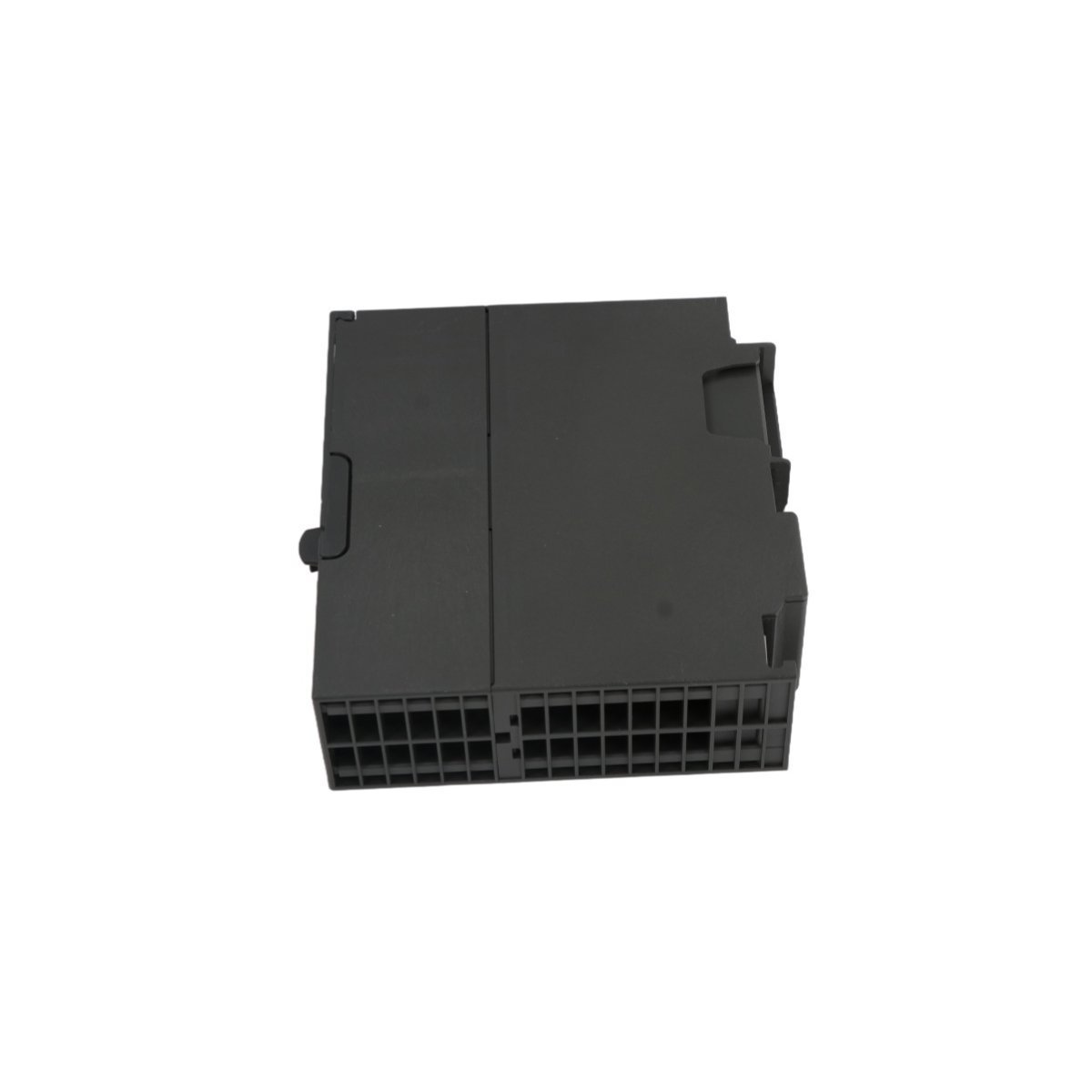

Siemens 6ES7314-1AG14-0AB0 CPU Processor Module

The Siemens 6ES7314-1AG14-0AB0 is a robust central processing unit designed for mid-range automation tasks. This CPU 314 module delivers the necessary logic for medium-scale factory installations. It features a high processing speed of 0.06 microseconds for bit operations. Furthermore, the controller manages up to 128 KB of integrated work memory. This capacity allows for efficient handling of complex program structures. Engineers typically deploy this module in manufacturing and material handling systems. Its proven architecture ensures stable performance within the popular SIMATIC S7-300 ecosystem.

Networking and Communication Capabilities

This processor module facilitates seamless data exchange through an integrated MPI interface. This port supports programming, HMI connectivity, and simple network structures. While it focuses on essential connectivity, it maintains compatibility with extensive S7 communication services. Consequently, the unit integrates easily into broader plant architectures. The CPU also coordinates local and distributed I/O modules effectively. This flexibility allows for easy system expansion as production requirements increase. Therefore, the 6ES7314-1AG14-0AB0 serves as a versatile hub for machine-level control logic.

Hardware Configuration and Safety

The compact design of the CPU 314 saves significant space on the S7 rail. It requires a SIMATIC Micro Memory Card (MMC) for permanent data storage. This card protects your program and configuration during power loss. Moreover, the unit operates on a standard 24V DC power supply. It features high resistance against industrial electromagnetic interference. The module also includes comprehensive diagnostic LEDs for rapid status assessment. These indicators help maintenance teams identify errors quickly during operation. Such reliability is crucial for reducing downtime in intensive production environments.

Technical Specifications

Diverse Industrial Applications

This controller excels in applications requiring high processing power and fast response times. It is particularly effective for packaging machinery and specialized machine tools. Because it supports diverse instruction sets, it handles both binary and floating-point math. This versatility enables precise control over various automated sequences. The module also functions reliably across standard industrial temperature ranges. By choosing this processor, facilities ensure long-term availability for their automation hardware. It remains a cornerstone for dependable and cost-effective industrial control.
