  4. Siemens SITOP Smart 10A 6EP1334-2BA01 Stabilized Power Supply
Sale!
SKU: 6EP1334-2BA01

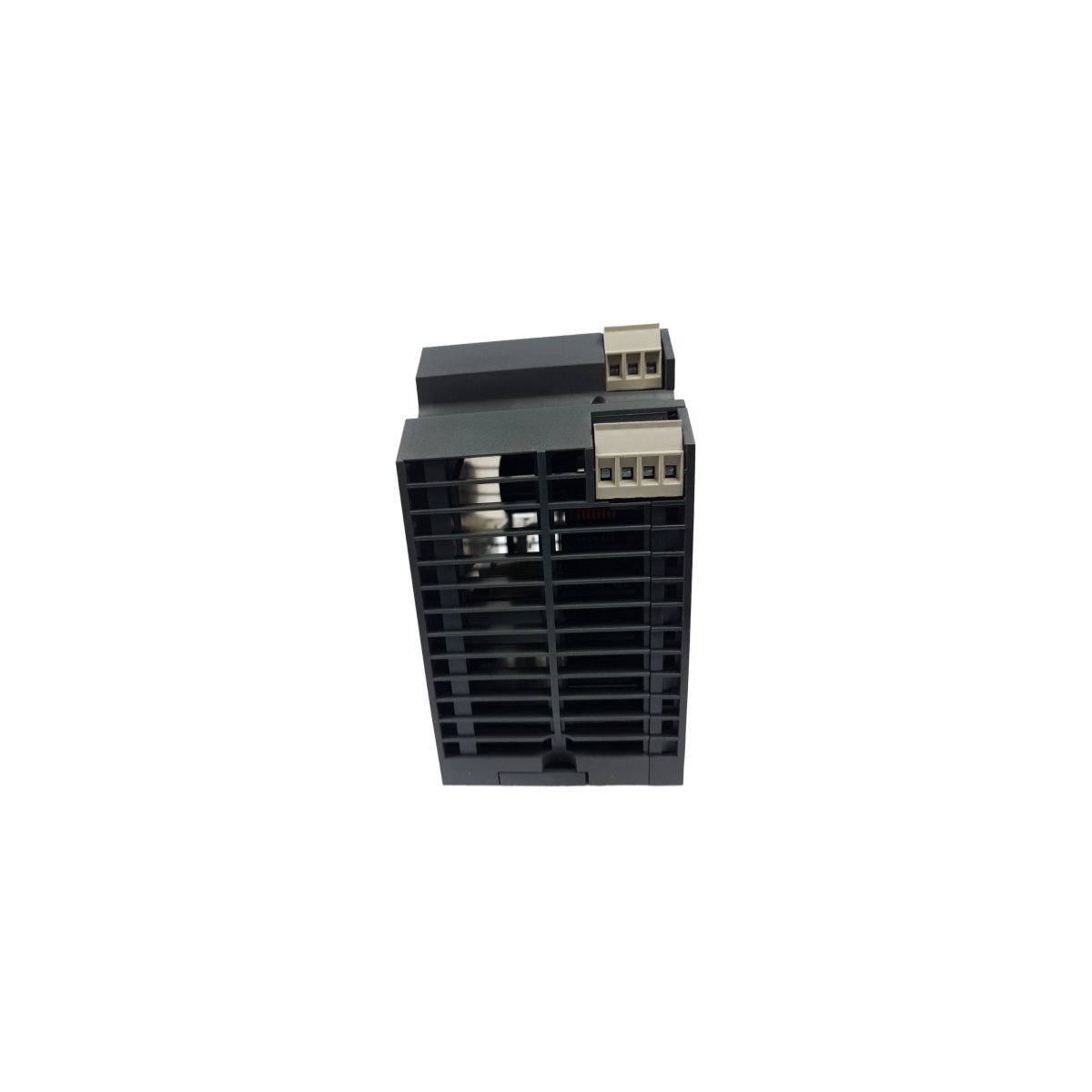

Siemens SITOP Smart 10A 6EP1334-2BA01 Stabilized Power Supply

The Siemens 6EP1334-2BA01 delivers 240W of reliable power for industrial PLC systems. This 24V 10A SITOP Smart power supply features active PFC, automatic voltage adaptation, and a compact DIN rail design.

Request a Quote

Product Overview

The Siemens 6EP1334-2BA01 anchors the high-performance SITOP Smart product family, providing a steadfast 24V DC power source for rigorous industrial automation environments. This 240-watt stabilized power supply unit generates a consistent 10A output, making it the perfect choice for driving PLCs, sensors, and actuators. While its compact housing saves valuable cabinet space, its robust internal architecture delivers the high-overload capacity necessary for starting motors or high-capacitance loads.

Superior Electrical Engineering

This unit actively masters a wide range of input voltages, seamlessly operating between 85V AC and 264V AC without any manual switch adjustments. To maximize energy efficiency, Siemens engineers integrated active Power Factor Correction (PFC), which effectively suppresses harmonic distortion and ensures compliance with global power quality standards. Furthermore, the power supply enforces precise voltage regulation even during intense load fluctuations. This constant vigilance ensures that sensitive electronic components always receive clean, stable power.

Durability and System Protection

The 6EP1334-2BA01 thrives in harsh industrial conditions thanks to its advanced thermal management. It maintains peak performance in elevated ambient temperatures typically found in dense control panels. To protect your equipment, the unit executes several critical safety protocols:

  • Overload Protection: Prevents internal damage during excessive current draws.
  • Short-Circuit Protection: Instantly isolates electrical faults to safeguard connected circuitry.
  • Overvoltage Protection: Blocks potential voltage spikes from reaching downstream devices.

Practical Industrial Application

System integrators frequently deploy the 6EP1334-2BA01 in automotive assembly lines, food and beverage processing, and complex material handling systems. Because this module guarantees a dependable power infrastructure, it serves as a primary defense against production downtime. Maintenance teams favor this unit because its standardized DIN rail mounting accelerates the installation process and simplifies system upgrades.

Technical Specifications

  • Manufacturer: Siemens
  • Order Number: 6EP1334-2BA01
  • Product Series: SITOP Smart
  • Input Voltage: 120/230 V AC (Automatic Range 85-132 / 170-264 V AC)
  • Output Voltage: 24V DC (Stabilized)
  • Output Current: 10 A
  • Rated Power: 240 W
  • Energy Efficiency: 91%
  • Unit Weight: 0.95 kg
  • Standard Dimensions: 70 mm x 125 mm x 125 mm
  • Operating Range: 0°C to +60°C
