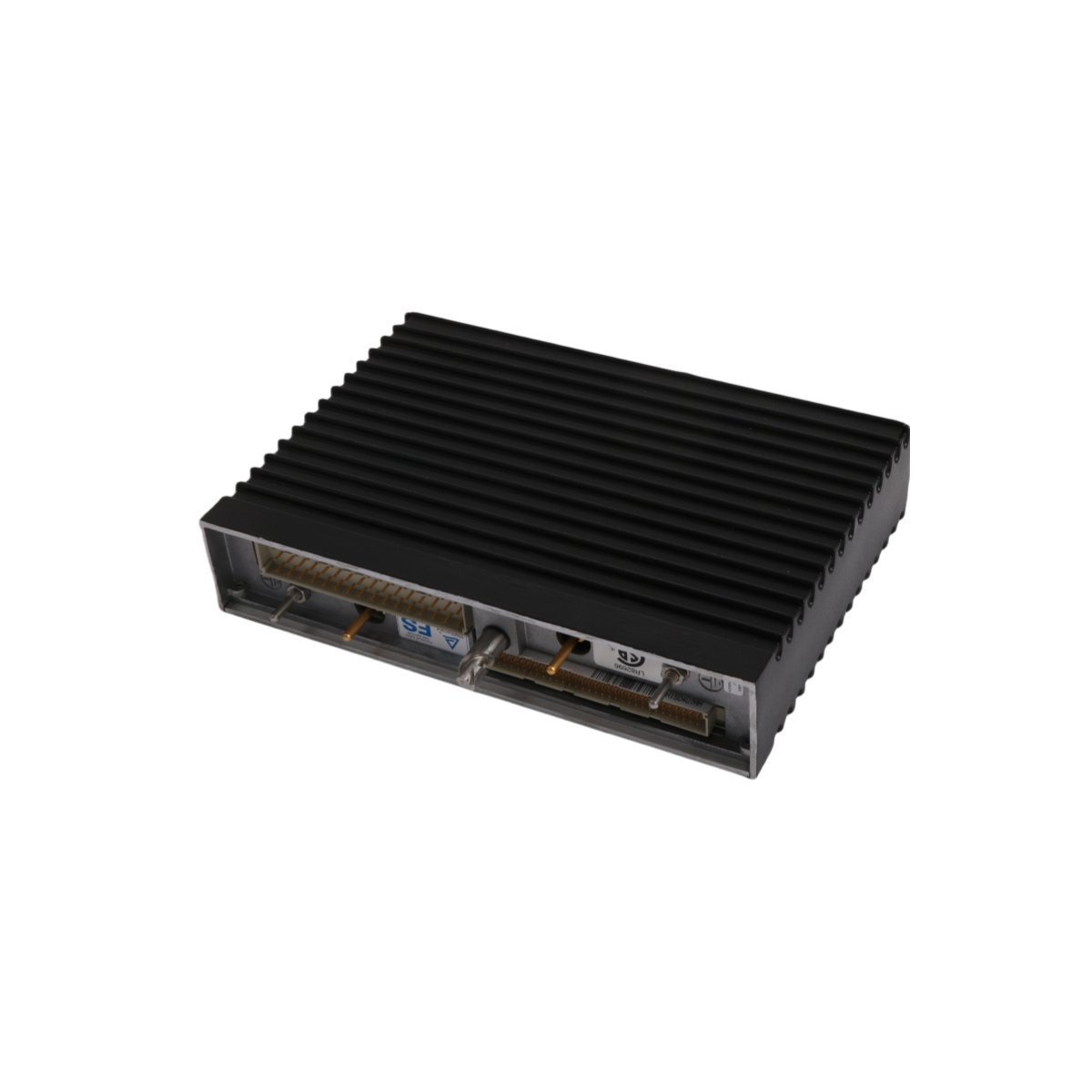

The Triconex SDO 3411 is a 16-channel supervised relay output module designed for TMR safety systems. Featuring SIL 3 certification, integrated 2oo3 voting, and comprehensive field wiring diagnostics, this 24 VDC module ensures maximum fault tolerance and reliability for critical industrial shutdown applications.
The Triconex SDO 3411 serves as a high-integrity relay output interface within the Tricon Triple Modular Redundancy (TMR) system architecture. This module executes critical safety commands by utilizing three independent, parallel output circuits for every channel. By routing signals through this redundant path, the system performs an internal two-out-of-three (2oo3) vote to determine the final state of the output. Consequently, the SDO 3411 eliminates single points of failure and maintains process safety even if a hardware component within one of the branches malfunctions. This fail-safe operation makes the module an essential choice for high-risk applications such as Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.
To ensure the readiness of final control elements, the SDO 3411 incorporates sophisticated “Supervised” (SDO) diagnostic features. The module continuously monitors the continuity of the field wiring and the health of the internal relay contacts, even when the outputs are in a de-energized state. Furthermore, the unit performs periodic “glitch” tests to verify the switching capability of the output voters without disrupting the connected process equipment. Because the module reports these diagnostic results back to the main processors in real-time, maintenance teams can proactively identify open circuits or stuck-on relay conditions. This transparency significantly enhances the Safety Integrity Level (SIL 3) of the entire control loop.
Schneider Electric has engineered the SDO 3411 to withstand the rigorous environmental conditions found in refineries, offshore platforms, and chemical plants. The module provides 16 isolated channels, which effectively prevents electrical noise or transients from compromising the system backplane. Additionally, the hardware supports “Hot-Swap” functionality, allowing technicians to replace a module while the system remains online and active. This feature ensures that critical safety functions continue without interruption during routine maintenance. By combining this physical resilience with high-resolution diagnostic LEDs, the SDO 3411 provides a reliable and maintainable interface for controlling solenoid valves, motor starters, and other critical actuators.
