  4. UFB700 A01 ABB HIET404238R0001 UNITROL Series Control Circuit Board
Sale!
SKU: HIET404238R0001 UFB700 A01

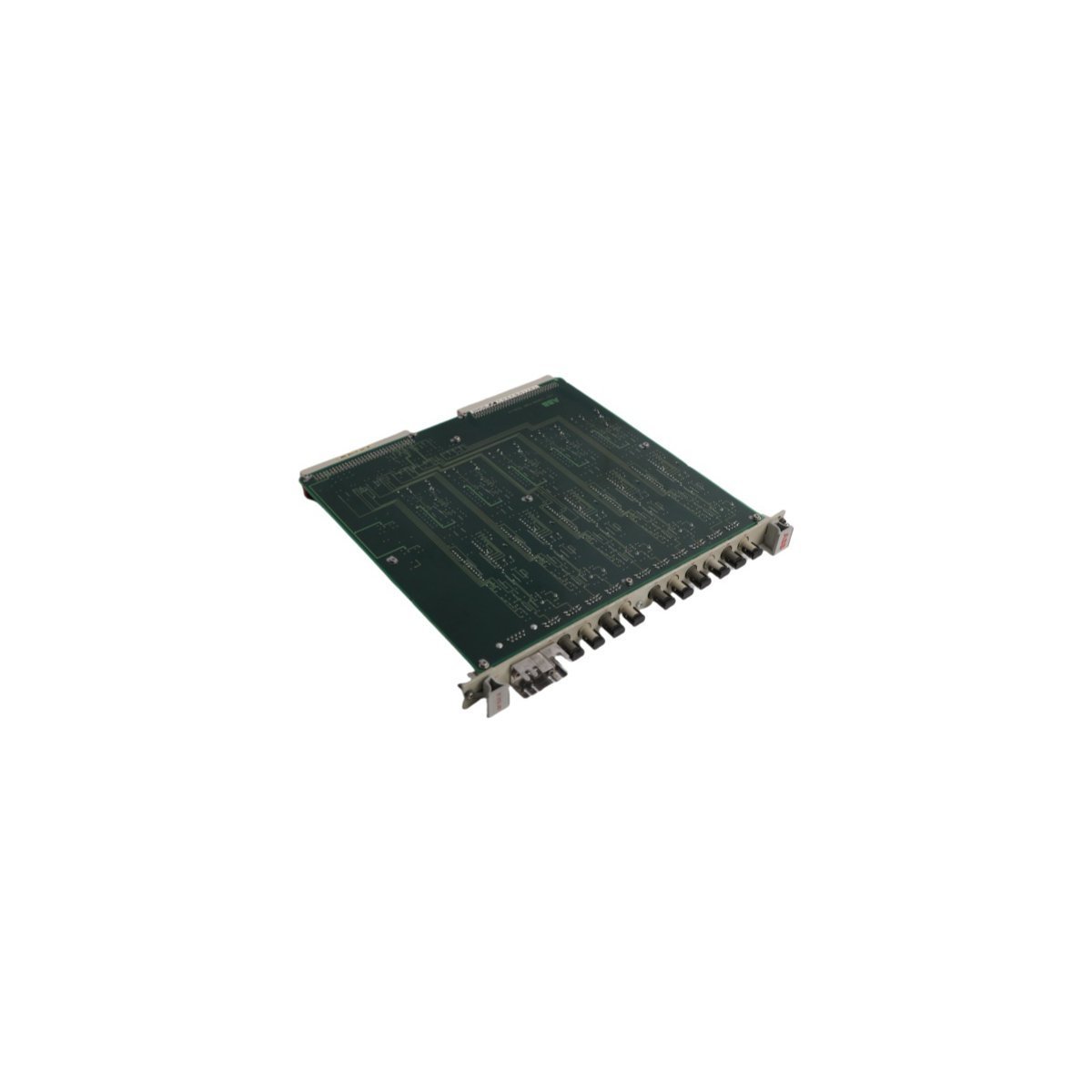

UFB700 A01 ABB HIET404238R0001 UNITROL Series Control Circuit Board

The ABB HIET404238R0001 UFB700 A01 is an industrial-grade circuit board for UNITROL excitation systems. It provides high-speed processing, robust communication interfaces, and DCS compatibility to ensure precise generator control and system reliability.

Request a Quote

Product Overview

The ABB HIET404238R0001 UFB700 A01 is a high-performance control and interface circuit board specifically engineered for the UNITROL excitation series. This module facilitates precise regulation and rapid data acquisition within complex Distributed Control Systems (DCS) to maintain generator stability.

Technical Functionality and Design

The UFB700 A01 serves as a critical link in industrial automation, processing high-speed signals to execute sophisticated control logic. ABB designed this board with a compact footprint to maximize cabinet space while maintaining industrial-grade durability.

  • Advanced Processing Architecture: The board features high-speed computation capabilities and expanded memory, allowing it to manage complex algorithms required for UNITROL excitation systems.
  • Thermal Resilience: This circuit board maintains consistent operational stability across extreme temperature gradients, making it suitable for rigorous power generation and industrial environments.
  • Seamless Network Integration: Equipped with a versatile communication interface, the module supports Ethernet-based routing and integrates effectively with ACS880 inverter drive systems.
  • Space-Efficient Geometry: The miniature design allows for high-density installation in standardized control racks without sacrificing cooling efficiency or accessibility.
  • System Synergy: While optimized for excitation control, the board’s architecture ensures full compatibility with ABB’s broader DCS ecosystem, streamlining system upgrades and maintenance.

Technical Specifications

AttributeSpecification
ManufacturerABB
Model NumberUFB700 A01
Order NumberHIET404238R0001
Product RangeUNITROL Series
Module TypeControl / Interface Circuit Board
Weight0.4 kg
Dimensions2.0 x 24.6 x 26.1 cm
System CompatibilityDCS / ACS880 Drives
OriginSweden

Application Scope

The HIET404238R0001 UFB700 A01 is essential for sectors requiring high-availability power regulation. Primary applications include:

  • Excitation control for synchronous generators in hydroelectric and thermal power plants.
  • Interface management for high-power ACS880 inverter drive configurations.
  • Critical signal processing within ABB Distributed Control Systems.
  • Industrial automation networks requiring reliable Ethernet-capable routing modules.
