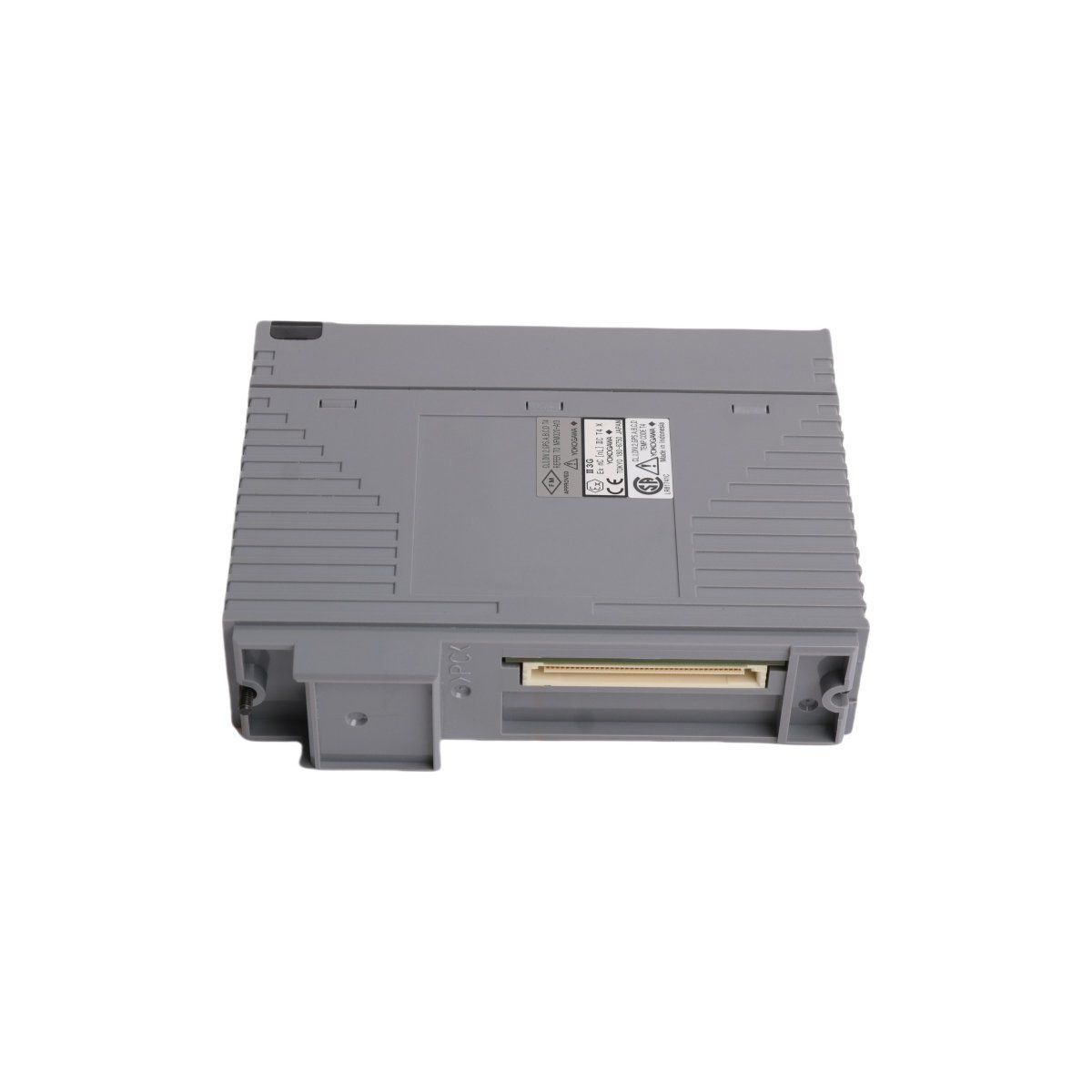

The Yokogawa AAP135-S50 is an 8-channel Pulse Input Module designed for the CENTUM VP DCS. It accurately processes high-speed pulse signals for flow totalization and speed monitoring, providing reliable isolation and precise data integration for safety-critical industrial processes.
The Yokogawa AAP135-S50 operates as a high-precision pulse signal processing interface within the CENTUM VP Distributed Control System (DCS). This module accepts pulse train signals from field devices—such as flowmeters and tachometers—and converts them into digital data that the Field Control Station (FCS) can process. Because accurate rate and accumulation data are vital for custody transfer and process control, the AAP135-S50 utilizes advanced counting logic to ensure zero-loss signal integration.
Furthermore, this module features significant flexibility in signal handling, as it supports both frequency-based measurements and pulse accumulation. It incorporates built-in signal conditioning to filter out industrial noise and contact bounce, which prevents false readings in electrically “noisy” environments. Since the AAP135-S50 resides within the FIO (Field network I/O) architecture, it facilitates rapid data updates to the controller, thereby allowing for real-time monitoring of high-speed rotating equipment and precise volumetric flow rates.
Key Technical Characteristics
Manufacturer:Â Yokogawa Electric Corporation
Model Identification:Â AAP135 (Suffix S50)
Module Category:Â Pulse Input Module
Channel Configuration:Â 8-channel isolated inputs
Input Signal Type:Â Supports dry contact, voltage pulse, and two-wire current pulse signals
Frequency Range:Â Capable of processing high-speed pulse trains for varying industrial sensors
System Integration:Â Compatible with CENTUM VP and CENTUM CS 3000 systems
Isolation:Â Individual channel-to-system isolation protects the backplane from field-side surges
Accuracy:Â High-resolution counting for precise totalization and flow rate calculation
Update Timing:Â Synchronized with FCS control cycles for real-time response
Industrial Applications
The AAP135-S50 serves as a critical link in many specialized measurement loops. Consequently, it is frequently applied in the following scenarios:
Flow Totalization:Â Connecting to turbine or PD flowmeters to calculate total volume in liquid or gas transfer.
Speed Monitoring:Â Interfacing with proximity sensors or encoders to measure the RPM of turbines, motors, and pumps.
Batch Control:Â Providing the precision pulse counting required for high-accuracy chemical dosing and batching operations.
Energy Management:Â Integrating with utility meters that output pulse signals to track electricity or steam consumption across a facility.
