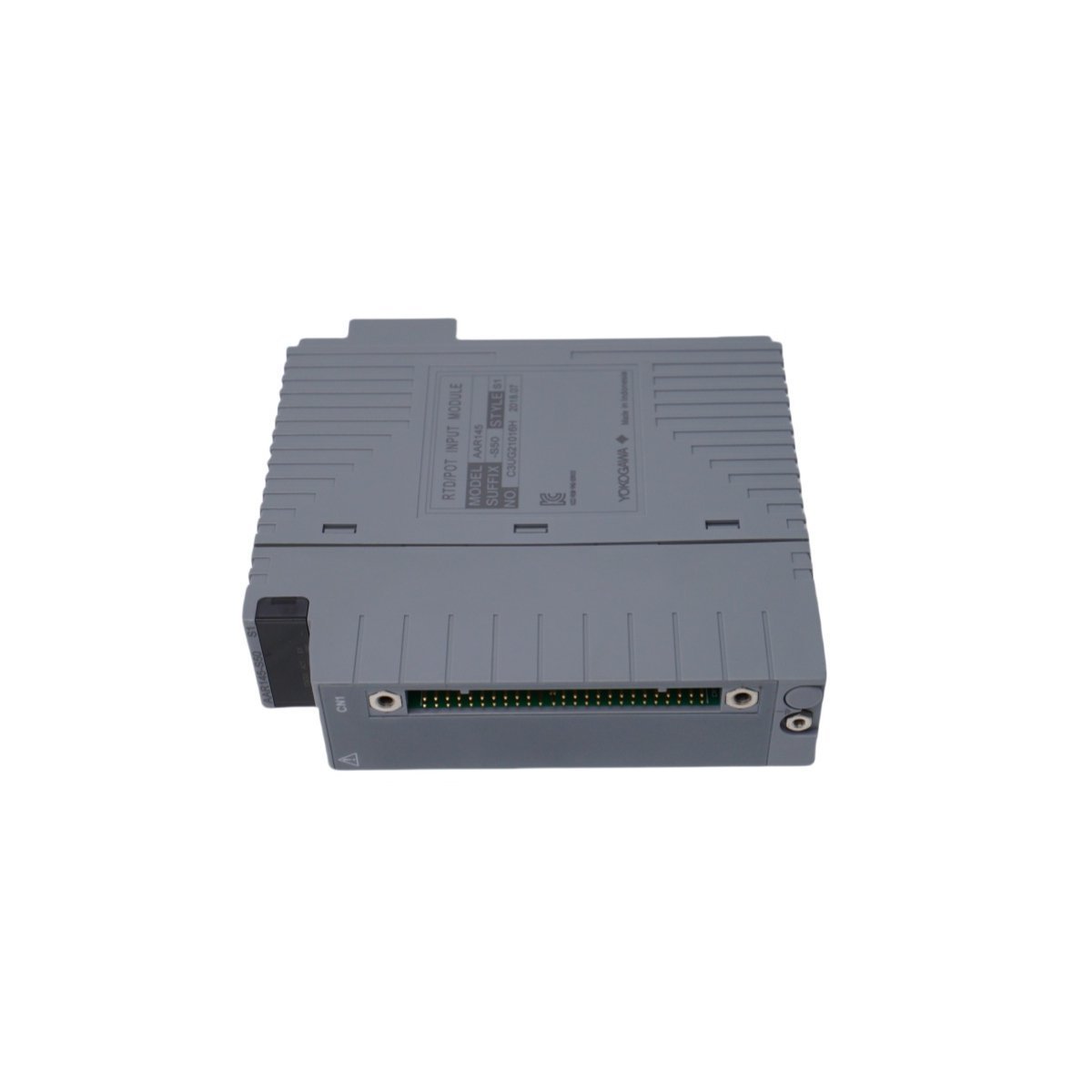

Yokogawa AAR145-S50 TC/RTD Input Module

The Yokogawa AAR145-S50 serves as a multi-functional analog interface for distributed control systems. This module processes diverse signal types including millivolt signals, thermocouples, and resistance temperature detectors. Furthermore, it supports potentiometer inputs for specialized position sensing applications. The hardware design features extensive electrical isolation between the field and the system. Individual channel-to-channel isolation also prevents cross-talk and ensures superior measurement precision.

Functional Characteristics and Design

This module incorporates 16 isolated relay outputs for versatile control capabilities. Users can utilize these outputs for alarm signaling or direct device actuation. The AAR145-S50 hardware facilitates hot-swapping during active system operation. Consequently, maintenance teams can replace units without triggering a process shutdown. This capability significantly enhances the availability of critical industrial control loops.

Diagnostic tasks become simpler with integrated LED status indicators on the front panel. These lights provide real-time feedback regarding the health of each input loop. Moreover, the unit meets international safety standards like IEC 61010-1 and CE requirements. The compact DIN-rail mounting architecture allows for high-density installation in control cabinets. Robust internal circuitry protects the module against electromagnetic interference in heavy industrial zones.

Industrial Applications

The AAR145-S50 performs reliably in the oil and gas sector for temperature monitoring. Chemical processing plants use these modules to track reactor thermal profiles accurately. Power generation facilities implement them for turbine bearing protection and steam temperature measurement. Additionally, the module handles complex sensor arrays in pharmaceutical manufacturing environments. Its ability to manage multiple signal types makes it a cost-effective solution for diverse plant needs.
