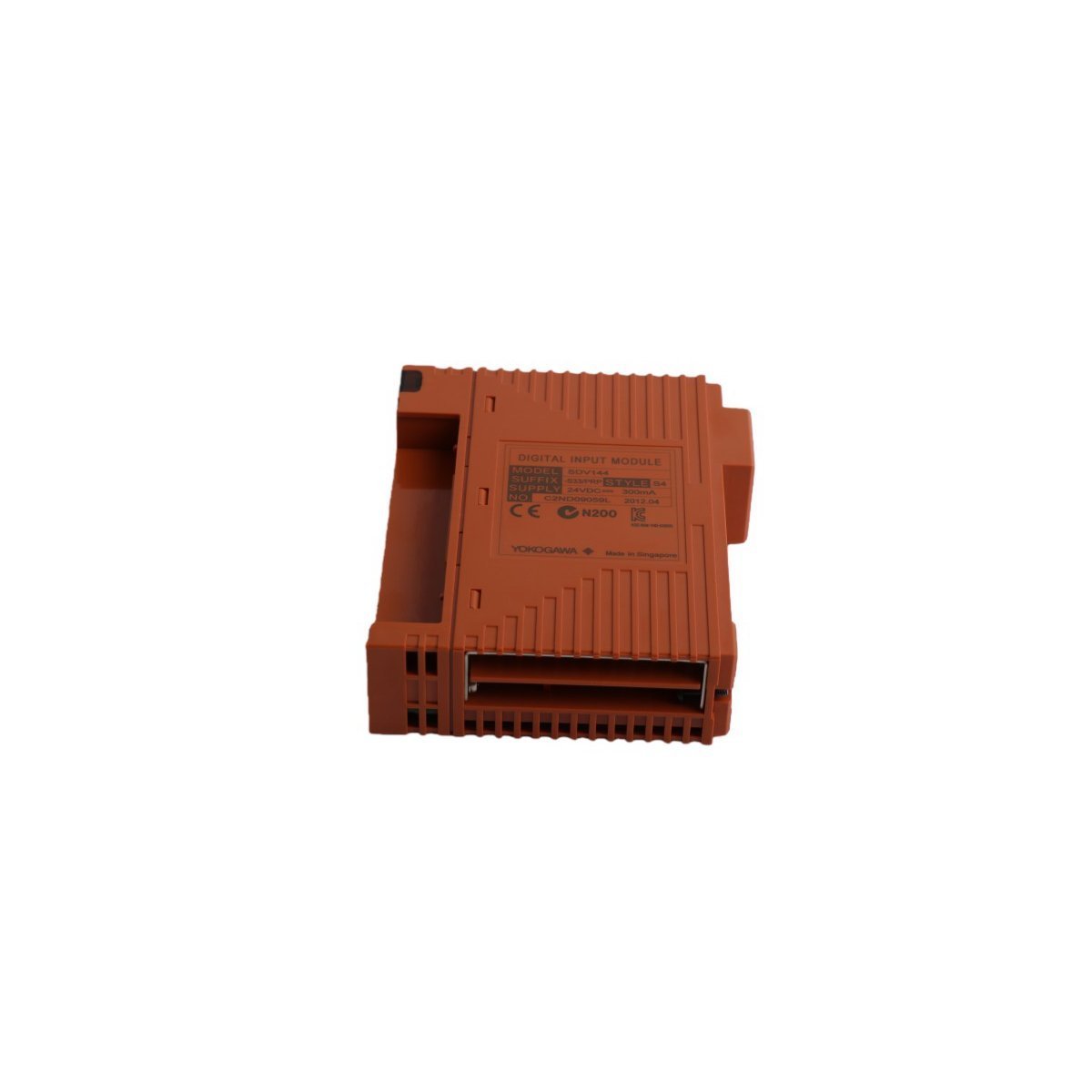

Yokogawa SDV144-S33 Digital Input Module

The Yokogawa SDV144-S33 is a high-performance digital input module designed for the ProSafe-RS safety instrumented system. This module provides 16 channels for capturing non-voltage contact signals from field equipment. It serves as a critical interface in Distributed Control Systems (DCS) and safety environments. Each channel features individual isolation to prevent electrical interference across the system.

Functional Role and Applications

This module facilitates secure data acquisition for safety-critical industrial processes. It monitors the status of emergency shutdown switches, pressure switches, and limit sensors. Engineers typically deploy the SDV144-S33 in oil and gas, chemical processing, and power generation plants. The unit ensures that field data reaches the logic solver without corruption. It supports high-integrity functions where failure is not an option.

Technical Specifications and Performance

The hardware utilizes advanced circuitry to maintain signal integrity under harsh conditions. It supports rapid state detection to meet strict safety response times.

• Input Channels: 16 isolated channels
• Input Type: Non-voltage contact signals
• Rated Voltage: 24V DC
• Input Current: 6mA at 24V DC
• ON Detection Resistance: Less than 1 kΩ
• OFF Detection Resistance: Greater than 100 kΩ
• Response Time: Faster than 40 milliseconds
• Dielectric Strength: 2kV AC for one minute
• Operating Temperature: -20°C to +70°C
• Installation: DIN rail mounting
• Wiring Options: Pressure clamp, MIL cable, or signal adapters

Reliability and Integration Features

The SDV144-S33 offers exceptional electrical protection through robust isolation technology. This design shields the internal system logic from field-side voltage spikes. The module remains compatible with various termination units for flexible wiring. Its compact form factor allows for high-density installation in control cabinets. Despite the availability of newer versions, this module remains a standard for maintaining legacy safety systems.
