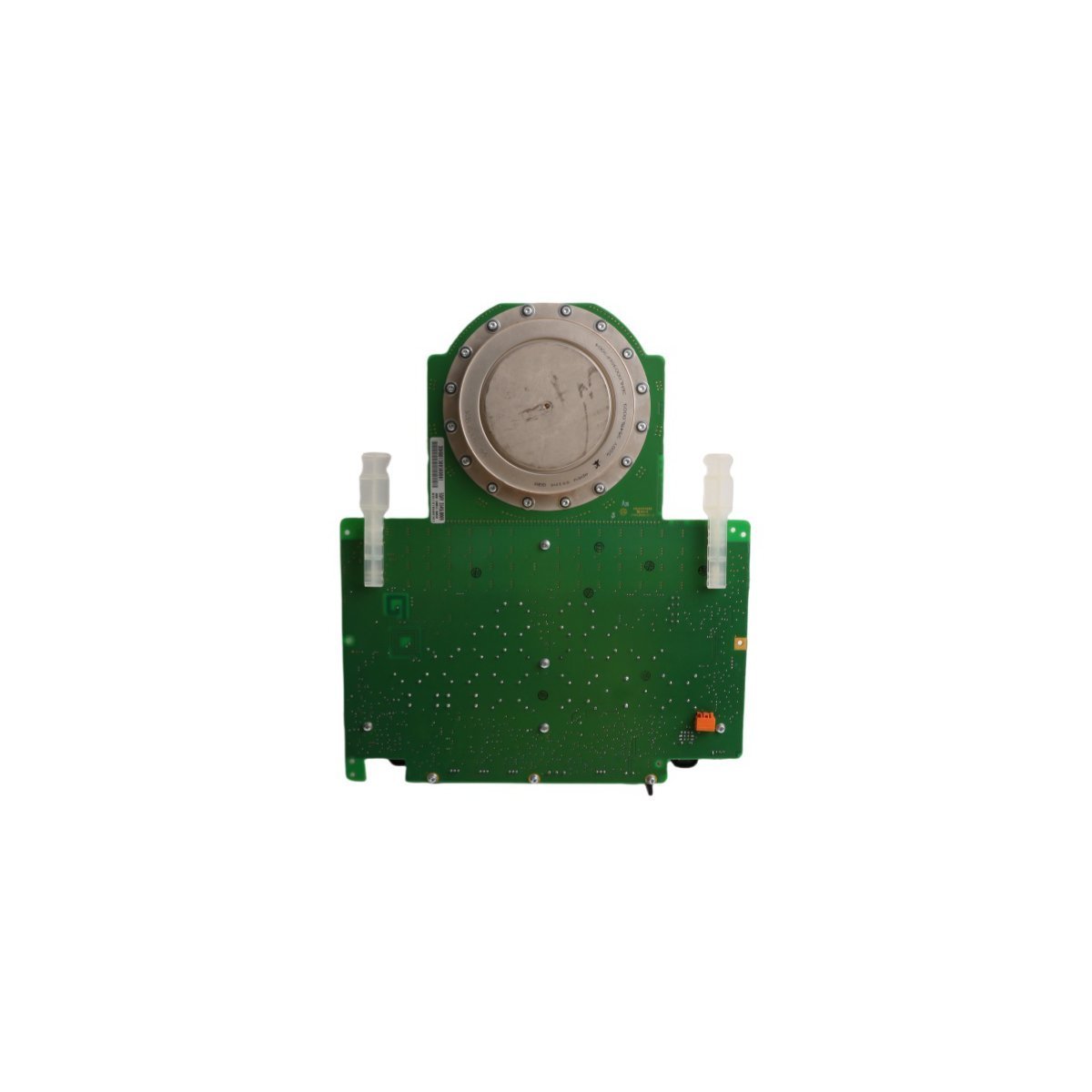

ABB 3BHB013088R0001 5SHY3545L0010 3BHE009681R0101 GVC750 GE101 IGCT Module

The ABB 5SHY3545L0010 is a high-capacity Integrated Gate-Commutated Thyristor (IGCT) module designed for medium-voltage power conversion. This component integrates a high-power semiconductor with a dedicated gate driver unit to ensure precise switching control. It functions as a core switching element in large-scale power electronics systems. The 3BHB013088R0001 module manages high current and voltage levels with minimal thermal loss. Its integrated design reduces electromagnetic interference and simplifies the overall circuit architecture. This module provides superior reliability for critical infrastructure and heavy industrial machinery.

Key Performance Characteristics

• Nominal Blocking Voltage: 4500V
• Continuous Current Rating: 3500A
• Peak Surge Current: 30kA (1ms duration)
• Typical On-State Voltage Drop: 2.5V
• Switching Speed: 1.5μs turn-on and turn-off time
• Maximum Operating Junction Temperature: 125°C
• Critical Rate of Rise of On-State Current (di/dt): 1000A/μs
• Control Interface: Integrated gate driver with fiber-optic communication

Industrial Applications

Engineers specify the GVC750 GE101 module for high-demand electrical environments. It serves as a primary component in High-Voltage Direct Current (HVDC) transmission systems. The module also powers large Variable Frequency Drives (VFDs) for mining and marine propulsion. It stabilizes power grids through Static Var Compensators (SVCs) and Flexible AC Transmission Systems (FACTS). Industrial facilities use this IGCT for soft-start systems in high-power motor applications. Its robust construction supports continuous operation in harsh electrolytic and metallurgical processing plants.

Mechanical and Installation Data

The 3BHE009681R0101 assembly features a compact form factor for easy integration into DCS and Advant OCS cabinets. It weighs approximately 2.66 kg and occupies a physical footprint of 35x29x6 cm. The module utilizes specialized cooling interfaces to maintain thermal stability during high-frequency switching. Its Swedish manufacturing origin ensures compliance with international quality standards for power semiconductor devices. This unit remains an active part of the ABB power electronics portfolio for modern grid modernization projects.
