ABB 3BHB030310R0001 5SHY4045L0006 IGCT Module

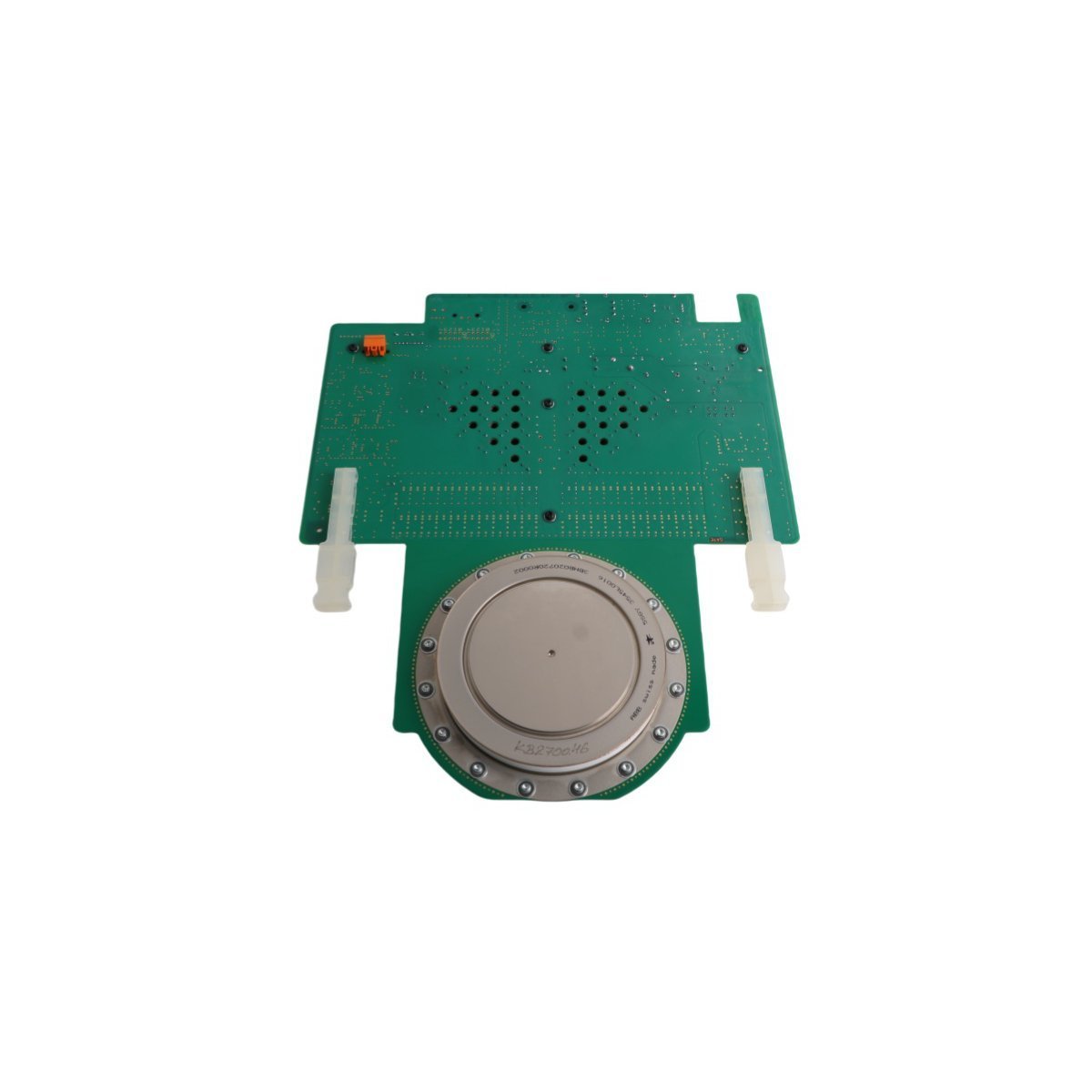

The ABB 3BHB030310R0001 5SHY4045L0006 functions as an Integrated Gate-Commutated Thyristor for medium-voltage applications. This power semiconductor manages high-current switching within Advant OCS and 800xA control architectures. It combines the high-speed switching of a transistor with the low conduction loss of a thyristor. Consequently, the module provides superior efficiency for large-scale energy conversion. The integrated gate drive ensures rapid transition times during peak load demands. Modern power electronics rely on this component for stable and precise current regulation.

Critical Technical Specifications

Thermal Management and Structural Design

This IGCT module utilizes a robust press-pack housing for enhanced mechanical stability. The 2.64 kg assembly features low thermal resistance for effective heat dissipation. Furthermore, the specialized materials withstand extreme thermal cycling in heavy-duty cycles. The compact Swedish design integrates the gate unit directly onto the semiconductor frame. This proximity reduces stray inductance and improves overall switching performance significantly. Additionally, the module maintains high electrical isolation integrity under thousands of volts. These features ensure the module operates reliably in the most demanding industrial climates.

Heavy Industrial and Infrastructure Applications

Engineers install the 5SHY4045L0006 in massive motor drives like the ACS 2000 series. It performs reliably in steel mill rolling machines and deep-well mining hoists. Moreover, the module supports large-scale renewable energy inverters for solar and wind farms. Traction systems in high-speed rail networks utilize this technology for efficient propulsion control. Static VAR compensators also use these modules to stabilize regional power grids effectively. The component’s 500Hz frequency support makes it ideal for specialized industrial process controls.

Maintenance and System Integration

The modular 3BHB030310R0001 allows for straightforward replacement during scheduled facility outages. This brand-new semiconductor arrives with full technical documentation for immediate installation. Because it follows standard ABB form factors, it simplifies the retrofitting of older drive systems. The hardware meets international safety standards for high-voltage industrial equipment. Technicians can monitor the integrated gate unit to assess the health of the power loop. Therefore, it serves as a long-term investment for facilities requiring high power density and uptime.
