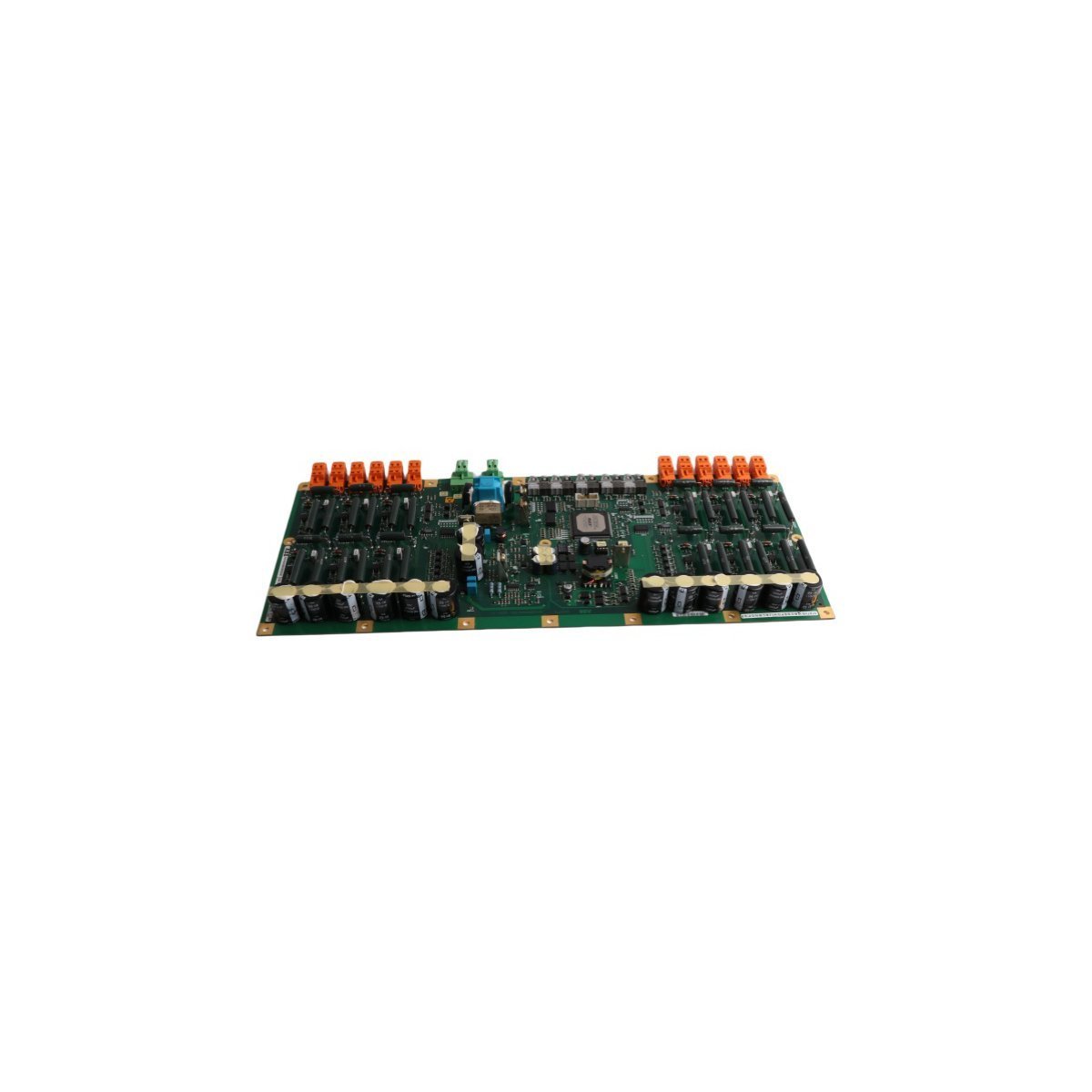

ABB 3BHE006805R0001 DDC779BE01 Digital Input Output Module

The ABB 3BHE006805R0001 DDC779BE01 is a combined digital input/output module for UNITROL excitation systems. It provides high-performance signal control and flexible RS485/CANopen communication for power generation.

Request a Quote

The ABB DDC779BE01 3BHE006805R0001 serves as a high-performance combined I/O interface for UNITROL excitation systems. This versatile module manages both digital input and output signals within a single hardware footprint. It provides the essential link between the central processor and primary field equipment. Because it handles high-voltage and high-current signals with precision, it ensures stable generator excitation. Furthermore, the unit supports critical real-time control logic for power generation applications. This efficiency remains vital for maintaining grid stability in large-scale utility operations.

Flexible Integration and Communication

Engineering teams can easily customize the module to meet specific operational requirements. The hardware utilizes standard communication interfaces including RS485 and CANopen protocols. Consequently, it integrates seamlessly into existing DCS architectures or new automation projects. The module supports flexible programming options for diverse control strategies. Because it maintains high signal integrity, it prevents data loss during transmission. This robust connectivity simplifies the deployment of complex power electronics systems.

Durable Design for Harsh Climates

This module features a rugged construction specifically for demanding industrial environments. It operates reliably across a broad temperature range in diverse global climates. Additionally, the compact physical design allows for efficient installation in crowded control cabinets. The lightweight architecture simplifies handling during routine maintenance or system upgrades. ABB manufactures this unit in Sweden to ensure the highest quality standards. Therefore, it offers long-term durability and consistent performance for mission-critical infrastructure.

Performance Optimization

The 3BHE006805R0001 enhances overall system transparency through integrated diagnostic capabilities. It allows operators to monitor I/O status in real time. This visibility helps identify potential electrical faults before they cause system downtime. Furthermore, the module optimizes power handling to reduce internal thermal stress. This design choice extends the functional life of the circuit board. By streamlining signal processing, the unit contributes to faster system response times.

Key Technical Specifications

FeatureDetails
BrandABB
Model NumberDDC779BE01
Order Number3BHE006805R0001
Product TypeDigital Input Output Module
Product RangeUNITROL Excitation Systems
Operating Temperature-25°C to +60°C
Storage Temperature-40°C to +85°C
Module Dimensions45 x 19.5 x 3.5 cm
Net Weight0.86 kg
