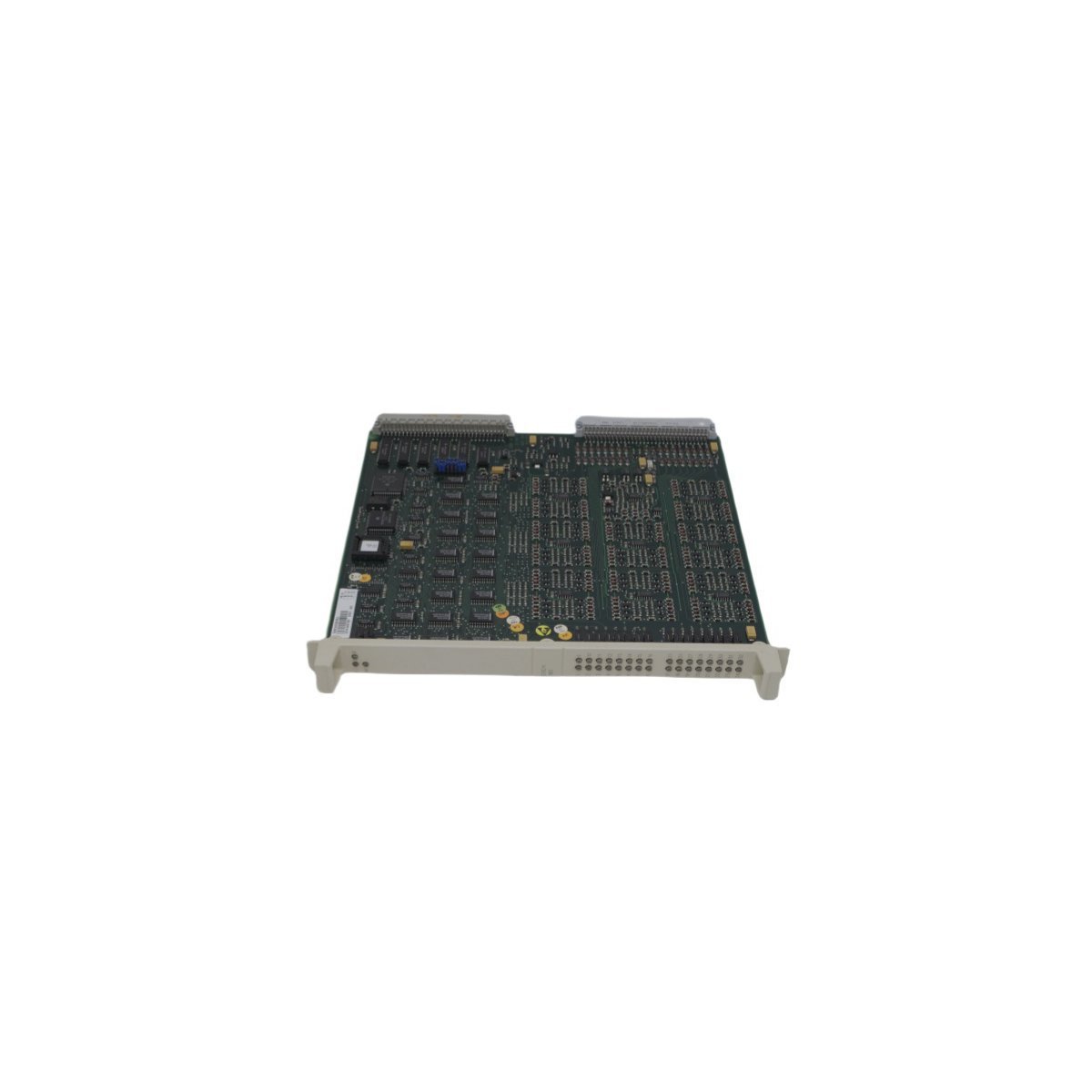

ABB DSDX180 3BSE003859R1 Digital Input/Output Module

Technical Overview

The ABB DSDX180, identified by part number 3BSE003859R1, functions as a high-density digital interface within the S100 I/O system and MasterPiece 200 environments. This board manages discrete signals between the central processing unit and field-level equipment. Because the module incorporates 16 dedicated input channels and 16 output channels, it provides a balanced solution for monitoring sensor states and driving actuators simultaneously. Engineers primarily deploy this board in Advant Controller systems to maintain high-speed signal processing and localized logic execution.

Operational Features and Integration

This digital I/O board utilizes a 24V DC operating voltage to ensure compatibility with standard industrial power supplies. To further enhance system reliability, the hardware design prioritizes signal isolation and noise immunity, which protects the core control logic from electrical interference. Although the unit occupies a compact physical footprint, it manages a significant number of I/O points, thereby allowing facility managers to maximize cabinet space.

The DSDX180 supports integration with established networking protocols such as DeviceNet and EtherCAT through appropriate bus controllers. Consequently, users can integrate this module into existing ABB DCS architectures with minimal configuration overhead. Moreover, the board includes onboard status indicators that provide immediate visual feedback regarding channel activity, which significantly accelerates the commissioning and maintenance phases.

Primary Applications

• Controlling motor starters and solenoid valves in heavy manufacturing lines.
• Monitoring limit switches and proximity sensors for safety interlocking.
• Managing discrete process signals in chemical and water treatment facilities.
• Interfacing with MasterPiece 200 systems for legacy hardware migrations.

Specifications and Physical Properties

• Manufacturer: ABB
• Model: DSDX180
• Order Number: 3BSE003859R1
• I/O Configuration: 16 Inputs / 16 Outputs
• Signal Voltage: 24V DC
• Product Family: S100 I/O
• Environmental Rating: IP20
• Country of Manufacture: Sweden
• Net Weight: 2.72 kg
• Dimensions: 23.7 x 21.8 x 8.7 cm
