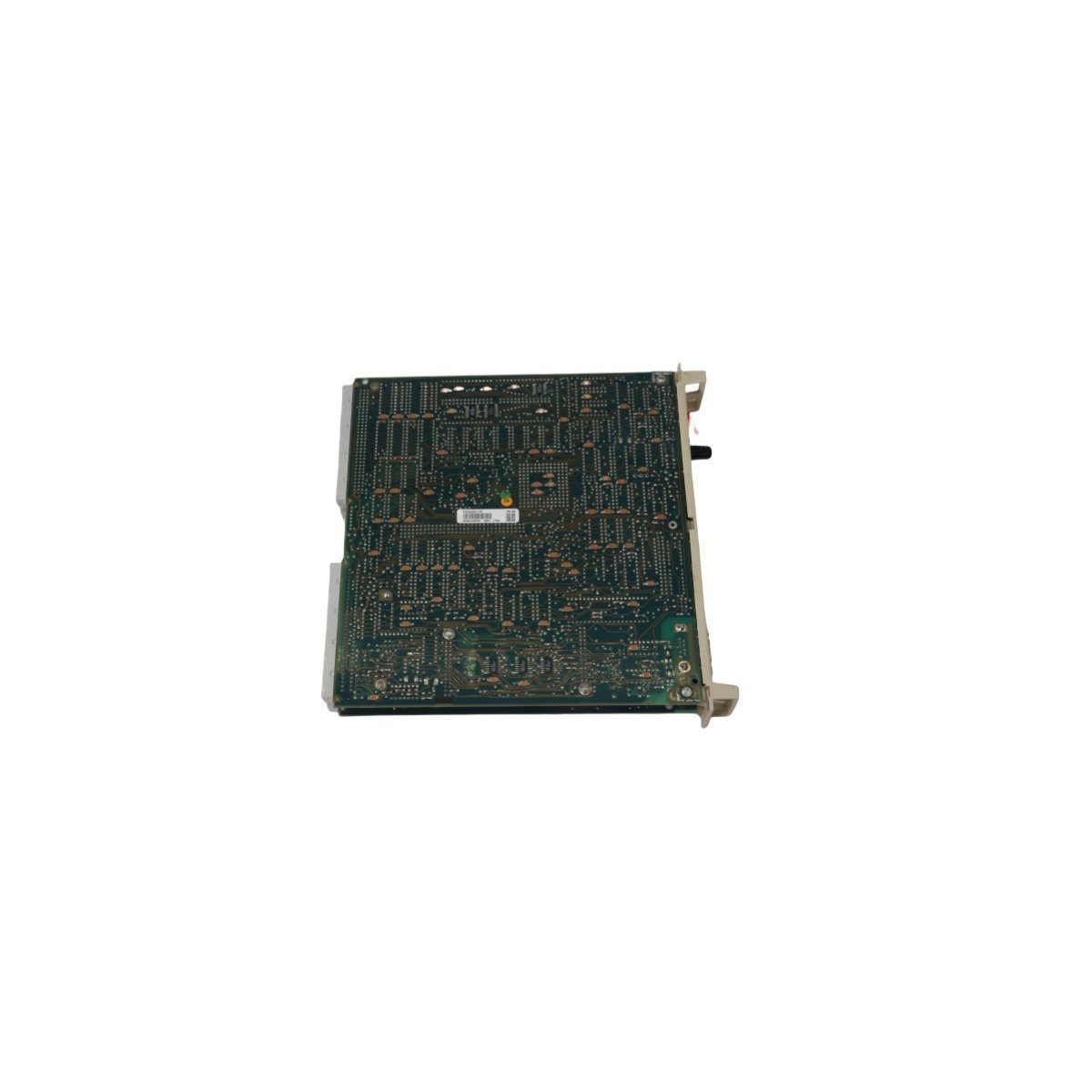

ABB DSPC172H 57310001-MP Processor Unit

The ABB DSPC172H, part number 57310001-MP, functions as a primary central processing unit for the MasterPiece series. This processor board manages critical logic execution within distributed control systems (DCS). It provides the computational power necessary for complex automation tasks. Furthermore, the unit maintains stable performance during continuous industrial operations. Its architecture specifically targets high-availability environments. Consequently, it ensures that process control remains uninterrupted in demanding sectors.

Key Technical Specifications

• Manufacturer: ABB
• Series: MasterPiece
• Model Number: DSPC172H
• Order Code: 57310001-MP
• Module Function: Master CPU / Processor Unit
• Power Consumption: 15 Watts typical
• Unit Weight: 1.1 kg
• Dimensions: 41 x 250 x 244 mm
• Origin: Sweden

Communication and Network Integration

This processor unit supports a variety of proprietary and standard communication protocols. It facilitates high-speed data exchange across local automation networks. Therefore, the module bridges the gap between field devices and supervisory control levels. The design includes dedicated interfaces for Ethernet routing and sub-network management. Because it handles heavy data traffic efficiently, it prevents bottlenecks in large-scale systems. This capability allows for real-time monitoring of analog and digital process variables.

Durability for Challenging Environments

ABB engineered the DSPC172H 57310001-MP to endure rigorous factory conditions. It operates effectively across a broad temperature range. The hardware components resist the effects of vibration and electrical noise common in power plants. Additionally, the compact board design allows for straightforward integration into existing DCS cabinets. Its energy-efficient 15W profile minimizes heat buildup within the enclosure. This focus on thermal management extends the overall lifespan of the control hardware.
