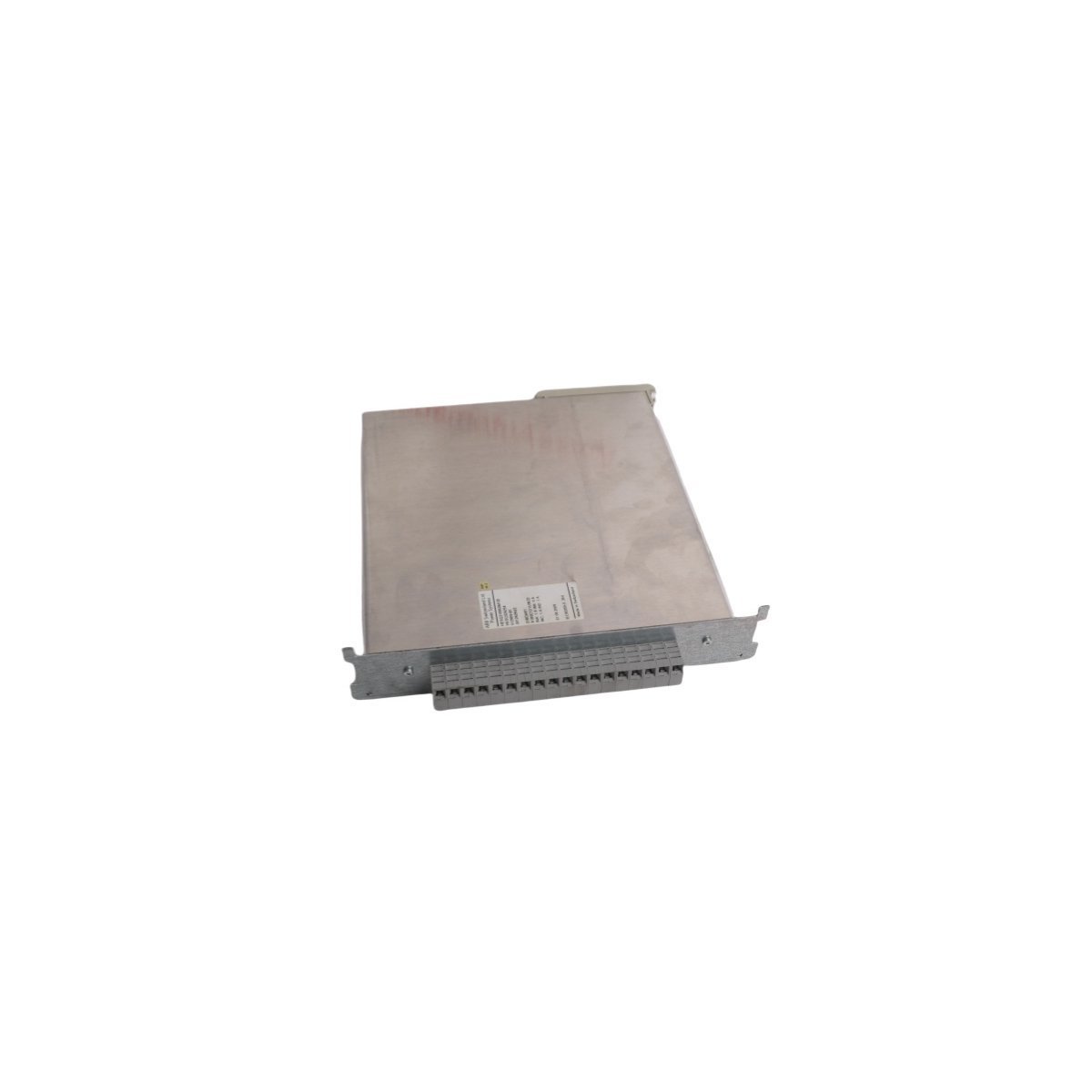

ABB HESG216850M1/D 316GW61 Procontic b Control Board

Robust Process Orchestration for Legacy Automation

The ABB HESG216850M1/D, specifically cataloged as the 316GW61, serves as a central processing control board within the Procontic b automation family. This module manages complex logic execution by acting as the primary computational hub for industrial sub-systems. Because modernizing legacy plants requires stable and precise timing, the 316GW61 utilizes a specialized 1MHz architecture to synchronize high-density I/O operations. Consequently, the board ensures that industrial processes remain consistent, even when dealing with the high-speed signaling required by contemporary DCS environments.

Detailed Technical Specifications

• Manufacturer: ABB
• Model Code: 316GW61
• Order Number: HESG216850M1/D
• Product Series: Procontic b / Advant DCS
• I/O Capacity: 40 discrete input channels and 24 output channels
• Processing Speed: 1MHz Clock Frequency
• Memory Architecture: 1MB Flash/RAM for program storage
• Power Efficiency: 10W typical consumption
• Environmental Protection: IP65-rated for dust and moisture resistance
• Weight: 2.24 kg
• Physical Dimensions: 25.0 cm x 5.3 cm x 26.5 cm
• Operating Temperature: -20°C to +70°C
• Origin: Sweden

Communication and System Integration

The HESG216850M1/D maximizes network interoperability by supporting native MODBUS and CANopen protocols. These interfaces allow the control board to communicate seamlessly with third-party sensors and motor drives, which effectively reduces the need for expensive protocol converters. Moreover, the board features a high-density I/O layout, providing 40 inputs and 24 outputs in a relatively narrow form factor. This high channel count enables engineers to consolidate control logic into fewer modules. Furthermore, despite its high computational throughput, the unit maintains a low thermal profile by consuming only 10W of power. This energy-efficient design prevents localized overheating in densely packed control cabinets, thereby extending the MTBF (Mean Time Between Failures) of the entire system.

Reliability and Harsh Environment Deployment

Maintenance teams favor the 316GW61 for its durability in extreme industrial climates. The board is encased in an IP65-rated housing, which actively shields the internal circuitry from conductive dust and water ingress. Since the module operates reliably up to +70°C, it is particularly well-suited for deployment in non-climate-controlled environments, such as offshore platforms or mining facilities. Additionally, the lightweight 0.5kg internal core facilitates easy replacement during maintenance cycles, while the sturdy 2.24kg external assembly provides the mechanical protection necessary for long-term vibration resistance.
