SKU: 1756-A13

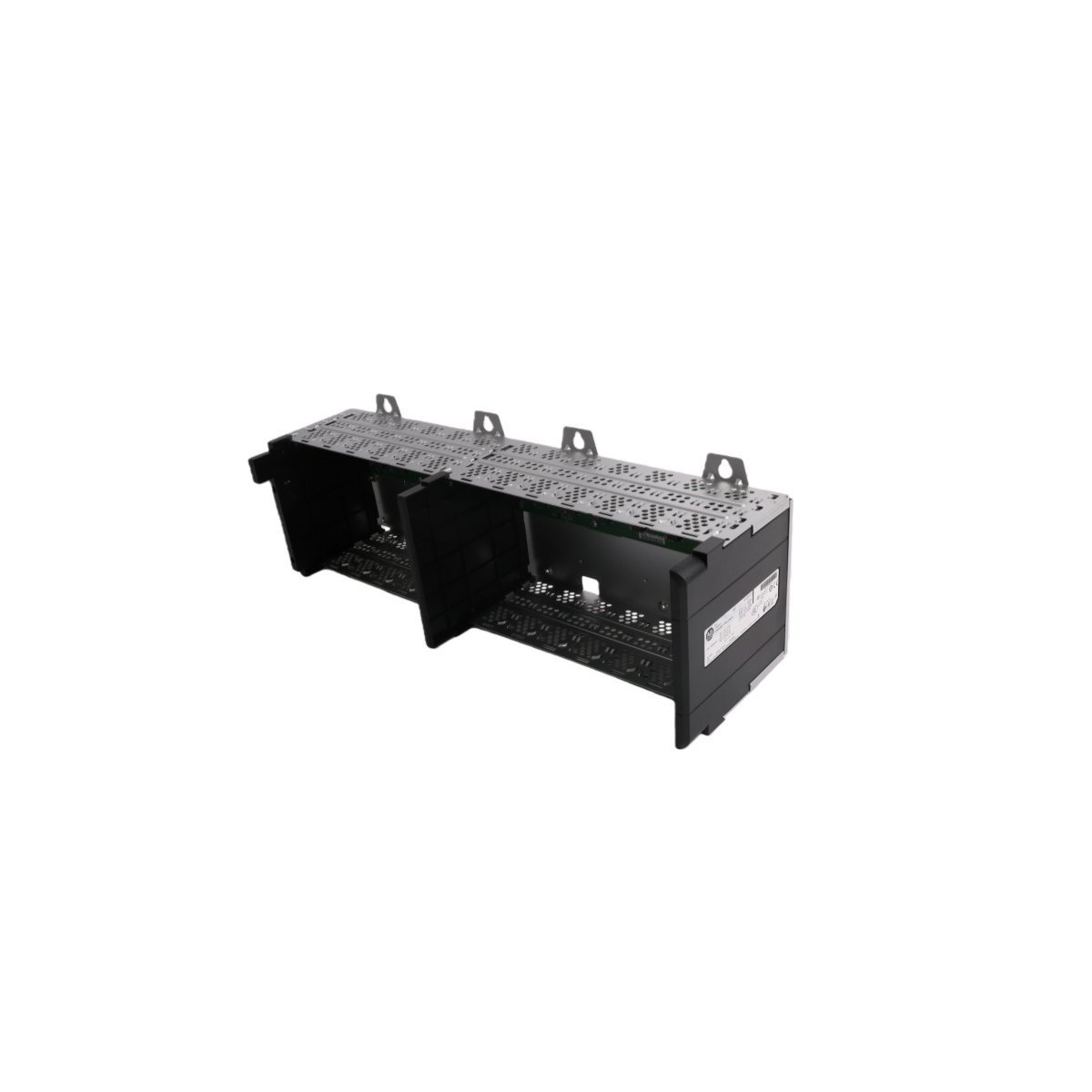

Allen-Bradley 1756-A13 ControlLogix 13-Slot Backplane Chassis

The Allen-Bradley 1756-A13 is a 13-slot ControlLogix chassis designed for high-speed data exchange and robust module housing. Featuring RIUP capability and multi-voltage backplane support, this chassis provides a reliable foundation for Logix 5560/70/80 controllers. Its durable construction supports extreme temperatures and high-vibration environments in industrial PLC setups.

Product Description

The Allen-Bradley 1756-A13 acts as the central structural and communication foundation for mid-to-large scale ControlLogix automation systems. Because complex industrial processes require multiple processors and high-density I/O, this chassis provides 13 dedicated slots to house controllers, specialized communication bridges, and I/O modules. Consequently, it creates a unified hardware environment where various components can collaborate seamlessly across a high-speed backplane.

To maintain system integrity during maintenance, the 1756-A13 supports Removal and Insertion Under Power (RIUP). This feature allows technicians to replace modules without powering down the entire rack, which significantly reduces operational downtime. Furthermore, the chassis utilizes electronic keying to prevent the accidental insertion of incorrect modules into established slots. To ensure consistent performance, the integrated backplane distributes four distinct voltage levels—1.2V, 3.3V, 5V, and 24V DC—meeting the diverse power requirements of the Logix 5560, 5570, and 5580 controller families.

Durability remains a core attribute of this American-made chassis. The unit withstands operational vibrations of up to 2g and mechanical shocks reaching 30g, making it ideal for high-impact industrial settings. Moreover, Series C models extend the operational temperature range down to -25°C, providing reliable service in extreme environments. Although Rockwell Automation officially marked this specific model for discontinuation in 2016, it remains a vital legacy component for expanding or maintaining existing ControlLogix installations. Therefore, the 1756-A13 continues to serve as a dependable platform for robust signal acquisition and logic execution.
