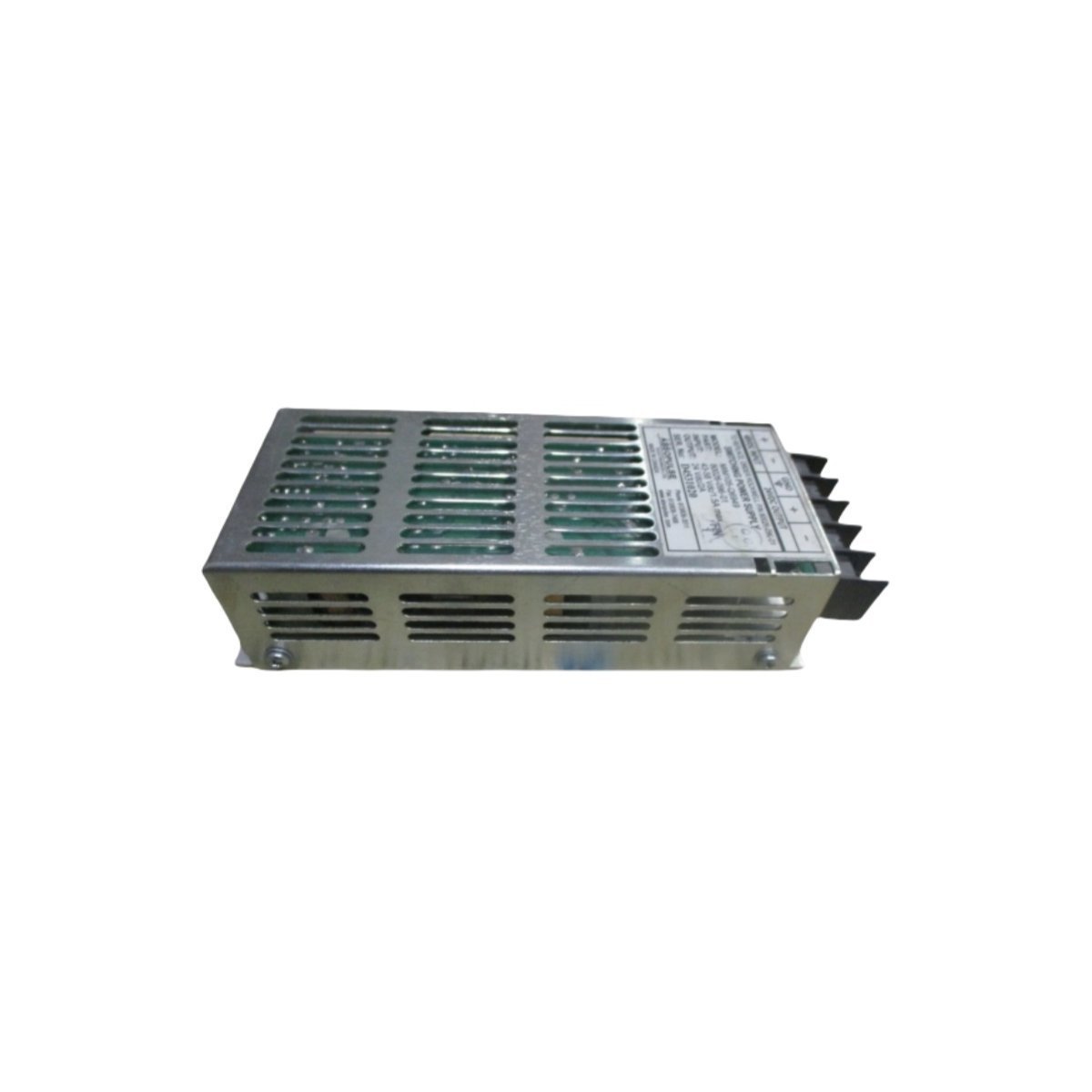

Allen-Bradley MIM105-Q6949 80026-096-01 DC/DC Power Supply Module

The Allen-Bradley MIM105-Q6949 (80026-096-01) is a professional-grade 48V to 24VDC switch-mode power supply designed for PLC systems. It delivers a stable 2A output, ensuring reliable performance for industrial automation and robotics.

Request a Quote

Product Overview

The Allen-Bradley 80026-096-01, specifically the MIM105-Q6949 model, serves as a high-performance DC-DC switching power regulator engineered for industrial automation environments. This unit converts a 48VDC input into a precise 24VDC output, providing a stable energy source for sensitive PLC components and robotics. By utilizing advanced switch-mode technology, the device minimizes heat dissipation while maximizing energy efficiency within dense control cabinets. Consequently, this power supply facilitates the seamless operation of heavy-duty machinery by protecting downstream electronics from voltage irregularities.

Key Technical Specifications

  • Manufacturer: Allen-Bradley / Rockwell Automation
  • Model Number: MIM105-Q6949
  • Part Number: 80026-096-01
  • Input Voltage: 48VDC (1.5A Maximum)
  • Output Voltage: 24VDC
  • Output Current: 2A
  • Module Category: Power Supply / DC-DC Converter
  • System Compatibility: PLC and Industrial Control Systems
  • Dimensions: 20.7cm x 5.0cm x 2.5cm
  • Weight: 0.1 kg

Operational Characteristics and Applications

The 80026-096-01 demonstrates exceptional durability, which allows it to withstand the rigorous conditions often found in manufacturing plants. Since the unit features a compact vertical profile, it integrates easily into space-restricted DIN rail setups or custom enclosures. Furthermore, the regulated output ensures that communication modules and sensors receive constant voltage, thereby preventing unexpected system downtime. Engineers frequently deploy this module in Ethernet routing applications and automated assembly lines where reliability remains the primary priority. Due to its rugged construction, the power supply maintains a long operational lifespan even when subjected to continuous industrial cycles
