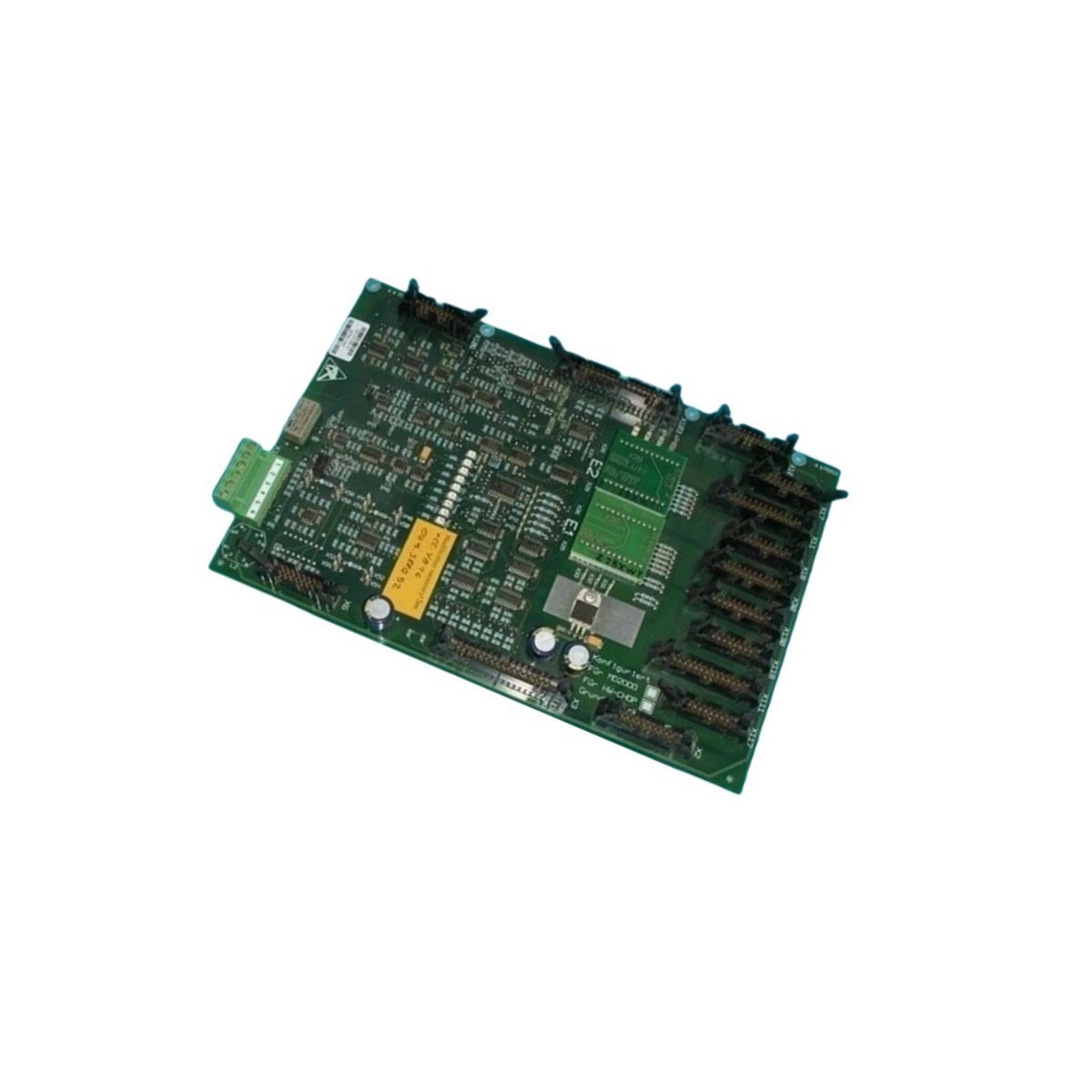

ALSTOM CPRT1 ICC Industrial Control FZE Communication Interface Module

The ALSTOM CPRT1 is a high-performance communication interface module designed for ICC Industrial Control FZE and ALSPA systems. Featuring advanced protocol bridging and galvanic isolation, it ensures reliable and deterministic data exchange for complex industrial automation and power plant networks.

Request a Quote

Primary System Role

The ALSTOM CPRT1 operates as a specialized communication and interface module within the ALSPA and integrated control architectures. Specifically, this unit facilitates the seamless exchange of data between the industrial control network and field-level instrumentation. By bridging disparate protocols, the CPRT1 ensures that the central processor receives accurate, real-time feedback from the plant floor. Because it manages high-traffic data pathways, the module utilizes dedicated processing logic to prioritize critical control packets, effectively reducing network latency in high-demand power generation or grid management applications.

Enhanced Technical Performance

  • Ensures Data Determinism: The CPRT1 utilizes high-speed buffer memory to manage incoming signal traffic. In doing so, it guarantees that time-critical process data reaches the controller without jitter or packet loss.
  • Simplifies Complex Networking: The module supports multiple industrial communication standards. As a result, engineers can integrate legacy field devices with modern digital control systems without needing extensive gateway hardware.
  • Protects System Integrity: Beyond simple data routing, the unit incorporates robust electrical isolation between its communication ports. Consequently, it prevents ground loops and electrical surges from propagating through the network and damaging the core control modules.
  • Optimizes Remote Diagnostics: The CPRT1 features embedded diagnostic routines that monitor link quality. Therefore, maintenance teams can identify degrading cables or faulty transceivers before a total communication failure occurs.
  • Supports Scalable Architectures: Finally, the modular design allows for the expansion of the I/O network. By adding additional CPRT1 units, facilities can scale their control infrastructure to accommodate new plant equipment with minimal configuration changes.

Technical Specifications

  • Model Identifier: CPRT1
  • Manufacturer Reference: ICC Industrial Control FZE / ALSTOM
  • Product Category: Communication / Interface Processor
  • System Integration: ALSPA P320 / Industrial Control Networks
  • Protocol Support: Proprietary Alspa Bus / Ethernet / Serial (Revision dependent)
  • Power Input: 24 V DC (Standard Industrial)
  • Mounting Configuration: Rack-mounted or DIN Rail (Variant dependent)
  • Diagnostic Indicators: Multi-segment LEDs for Link, Activity, and Module Status
  • Isolation Rating: Up to 1500V RMS
  • Operating Temperature: 0 °C to +55 °C
  • Housing: Industrial-grade metallic shielding for EMI/RFI protection
