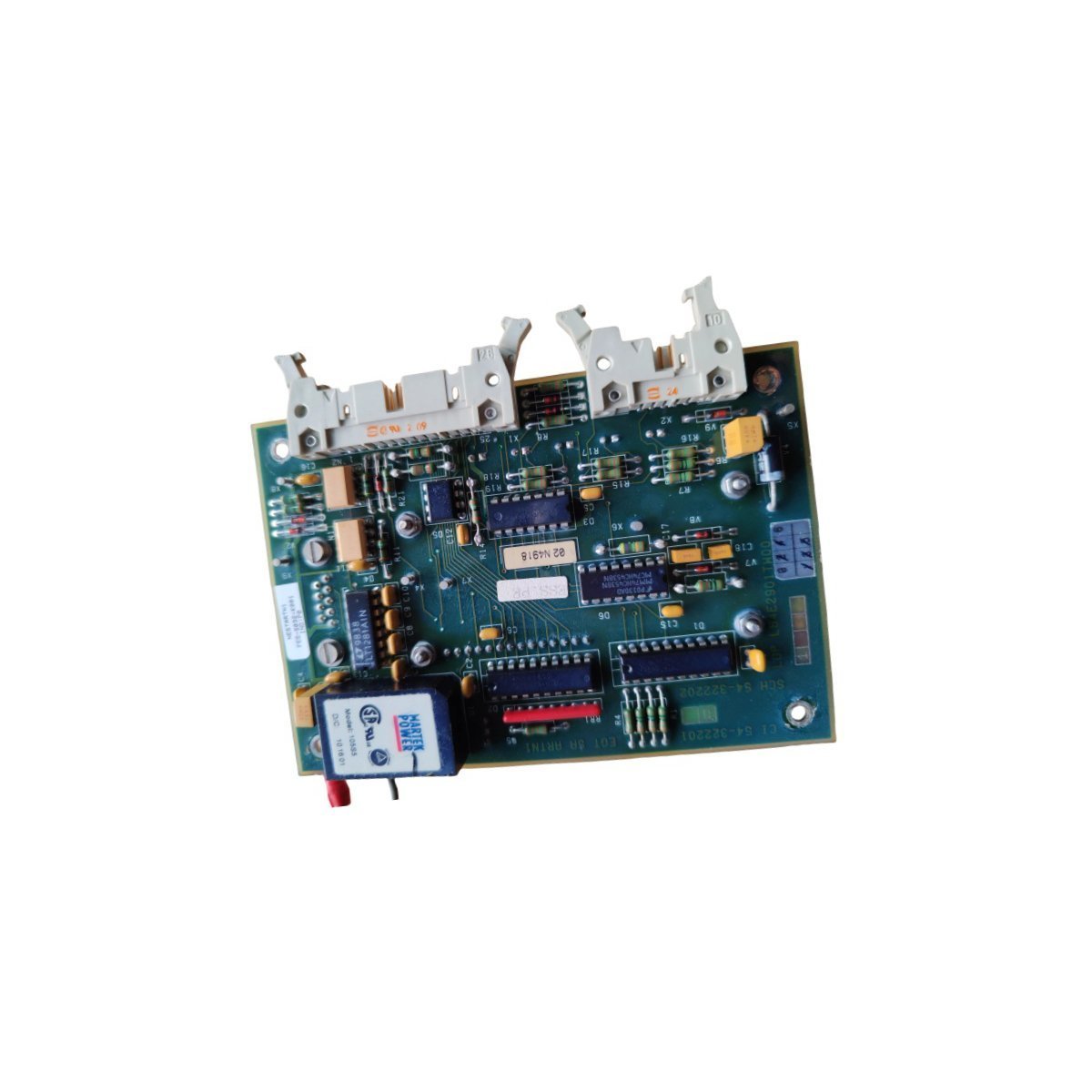

The ALSTOM ESVI1 (L54E1100BB) is a hybrid logic and analog I/O module for ALSPA control systems. Featuring isolated analog channels and discrete logic processing, this ruggedized card provides high-precision signal acquisition and deterministic control for turbine and power plant automation.
The ALSTOM ESVI1 (part number L54E1100BB) functions as a hybrid logic and analog interface card within the ALSPA and GE series control systems. This module is specifically designed to bridge the gap between discrete control logic and continuous process variables, allowing a single card to handle both binary switching and high-precision analog signals. By consolidating these functions, the ESVI1 streamlines the hardware architecture for turbine control and power plant auxiliary systems. Furthermore, this module executes local signal processing, which reduces the computational load on the central processor and ensures rapid response times for critical control loops.
Versatile Channel Configuration and Signal Integrity
Beyond its dual-purpose design, the L54E1100BB variant offers a versatile array of input and output channels tailored for demanding industrial environments. In addition to standard 4 to 20 mA analog loops, the module supports various voltage ranges and high-speed digital inputs for synchronization tasks. Because the card incorporates advanced galvanic isolation for every channel, it effectively prevents ground loops and protects the internal system bus from external electrical noise and transients. Moreover, the unit features high-resolution analog-to-digital (A/D) converters that ensure process transparency and accuracy. Consequently, this module is a reliable choice for monitoring sensitive mechanical parameters such as valve positions and fluid pressures.
Industrial Resilience and System Diagnostics
ALSTOM (now GE Power) has engineered the ESVI1 L54E1100BB for maximum reliability in high-vibration and thermally variable environments. The card is manufactured with industrial-grade components and conformal coating to resist humidity and dust accumulation. Additionally, the unit includes comprehensive onboard diagnostics that continuously monitor the integrity of each I/O path and the health of the internal logic circuits. If a signal failure or hardware anomaly is detected, the module provides immediate feedback via front-panel LED indicators and status bits sent to the central DCS. Therefore, this combination of physical robustness and real-time monitoring minimizes maintenance efforts and helps maintain continuous plant operation.
Technical Specifications
Manufacturer:Â ALSTOM (GE Power / GE Vernova)
Product Series:Â ALSPA P320 / ESVI Series
Model Number:Â ESVI1
Part Number:Â L54E1100BB
Module Type:Â Logic and Analog Input/Output Card
Analog Resolution:Â 12-bit or 16-bit (Configuration dependent)
Signal Types:Â 4-20mA, 0-10V, and Discrete Logic (24VDC/48VDC)
Isolation:Â Galvanic isolation between channels and system backplane
Power Consumption:Â Typically supplied via rack backplane
