Order the ABB DSDX451L Expansion Module. 100% Brand New, Original Stock with Global Shipping. Features robust S400 I/O density scaling and fieldbus connectivity.

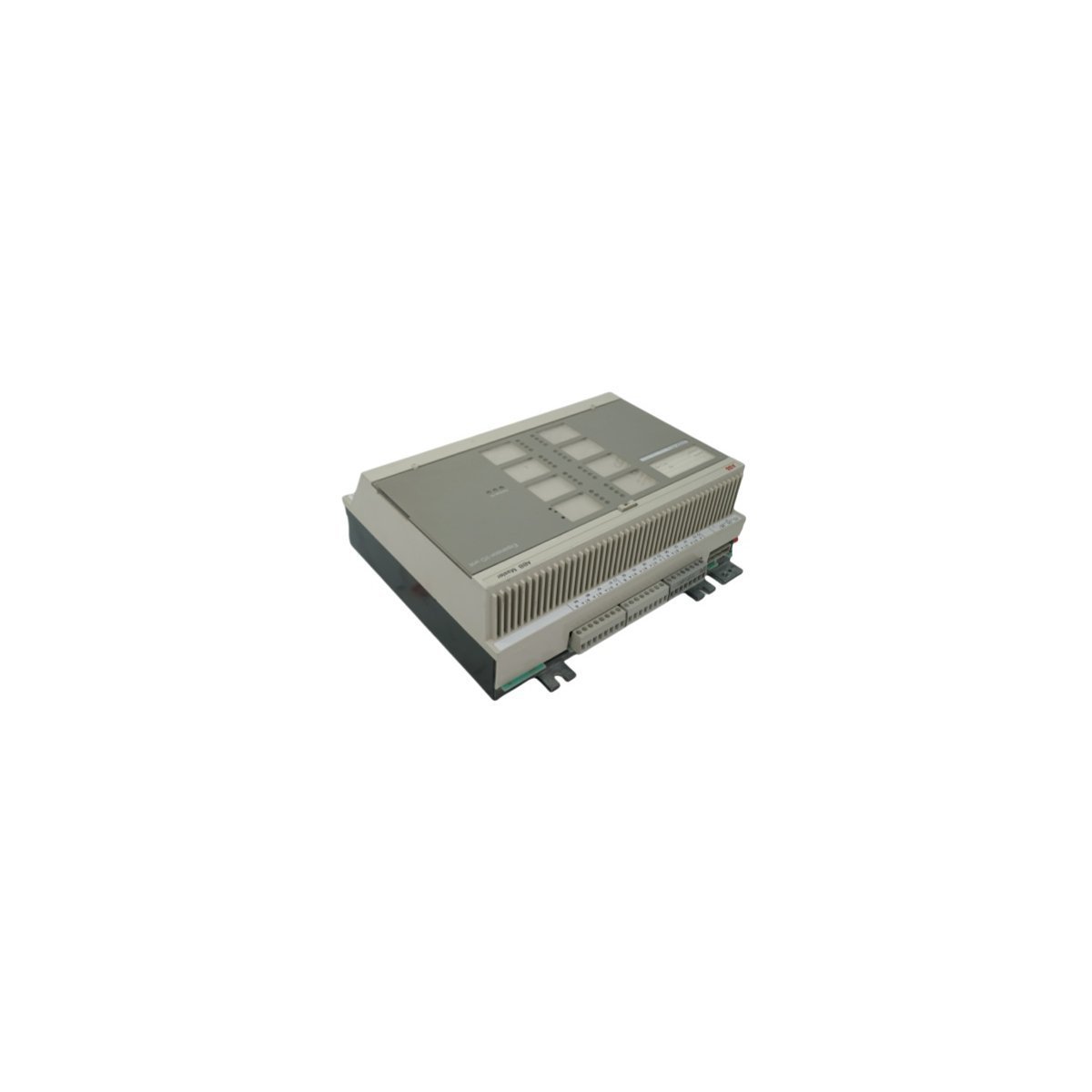

The ABB DSDX451L, also cataloged as the DSDX451L Expansion Unit, operates as a dedicated hardware component for I/O density scaling within S400 I/O platforms. Configured for remote input/output expansion in DCS infrastructures, the hardware provides direct physical interface expansion to manage external field-side components.
Hardware Specifications
Parameter
Specification
Model
DSDX451L
Brand
ABB
Origin
Sweden
Weight
2.72 kg
Dimensions
23.7 x 21.8 x 8.7 cm
Operating Temp
0 to 55 deg C
Power Consumption
System Backplane Powered
Module Type
Remote I/O Expansion Unit
Network Protocols
MODBUS, PROFIBUS Systems
Base Platform
S400 I/O System
Communication Service
Ethernet router Interfacing
Compliance Certifications
CE, UL Standard Metrics
HS Code
8537101190
Industrial Control & Drivers
The ABB DSDX451L establishes local data processing capabilities across the primary backplane bus communication velocity pathways. It is optimized for high-density I/O scaling, linking field sensory signals directly into deterministic networks. The module infrastructure relies on fieldbus backplane communication to transfer data without introducing transmission latencies into the primary DCS controller logic. The physical assembly supports structured firmware flash compatibility across standard S400 architectures, allowing continuous module interrogation and validation under max loading limits.
Frequently Asked Questions
Q: Does the DSDX451L expansion unit require an independent external power supply?
A: No. The DSDX451L is powered directly from the system backplane bus connection matrix, drawing its internal logic operating power through the interface cable assembly.
Q: How is the network address configured on this remote expansion unit?
A: Network addressing and hardware node mapping are managed via physical jumper settings or rotative switches on the base module interface before initializing the backplane bus.
Field Installation Guidelines
Cabinet Enclosure and Thermal Profiling: Mount the unit flat against the specified enclosure chassis panel. Ensure adequate clearance around the terminal strips to prevent thermal accumulation and allow natural air convection.
Shielding and Data Line Integrity: Route all PROFIBUS or MODBUS fieldbus communication lines inside separate grounded conduits, isolated from high-voltage AC motor or drive supply wires.
Grounding Matrix Requirements: Connect the heavy-gauge grounding lug on the module chassis directly to the central cabinet earth busbar to suppress high-frequency industrial noise.
