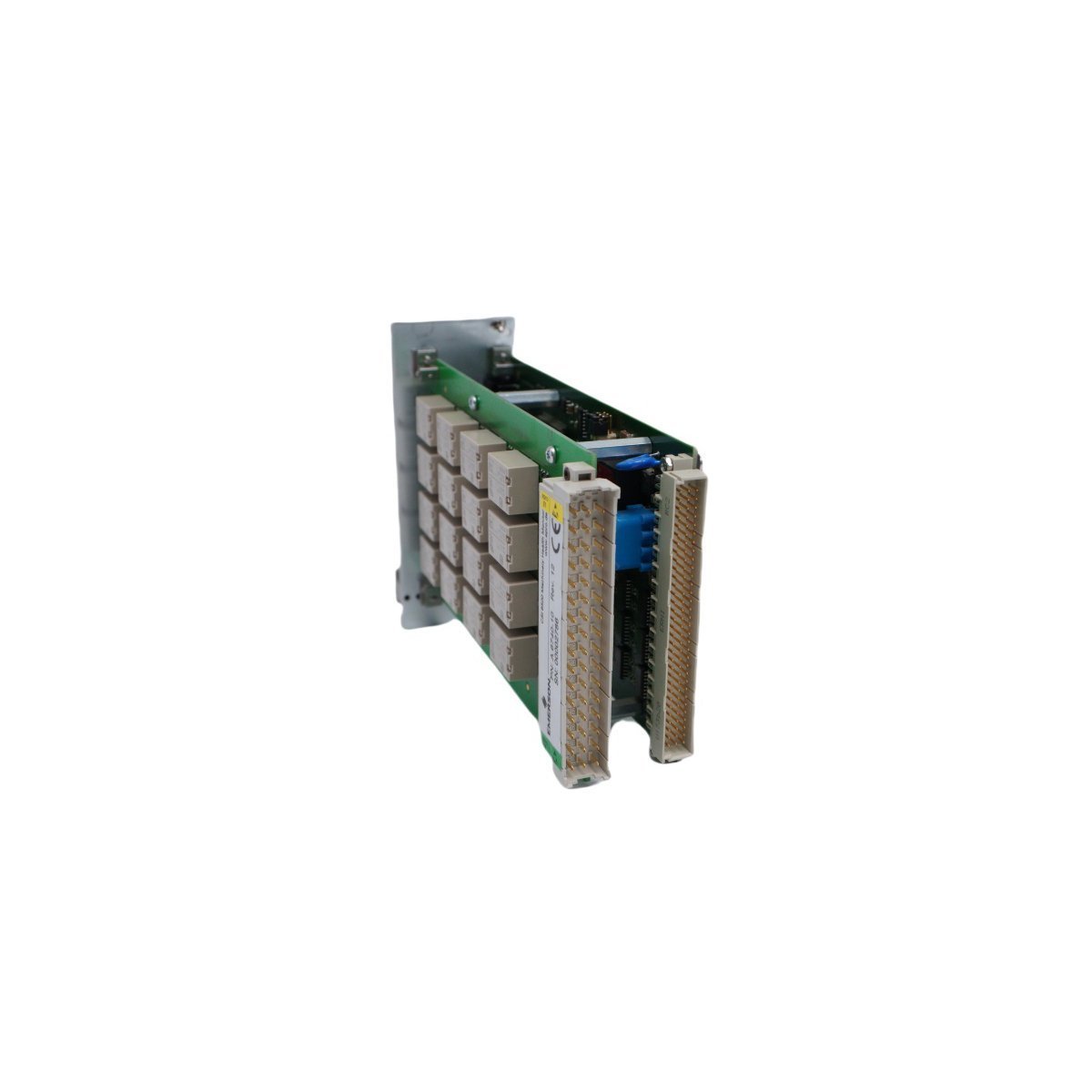

EMERSON A6740-10 AMS 6500 Output Relay Module

The EMERSON A6740-10, also cataloged as the A6740-10 Output Relay Module, operates as a dedicated hardware component for emergency shutdown and alarm state routing within AMS 6500 Machinery Health Monitor platforms. The device interfaces directly with protection rack internal logic buses to execute hardware-level trip commands, driving mechanical relays to physically open or close interlock circuits when machinery vibration or thermal thresholds are breached.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The A6740-10 integrates 16 discrete channels featuring independent channel-to-channel isolation parameters to prevent cross-talk and systemic loop grounding issues across mixed instrument cabinets. Although the module functions primarily as a binary trip execution layer, its diagnostic register map continuously pushes relay state indicators back into the overarching DCS network via standard 4-20 mA HART loop protocol routing and Modbus mapping. This ensures that the health monitor architecture registers coil discontinuity, power loss, or logic mismatches without delaying the execution of safety interlocks on critical rotating hardware assets.

Frequently Asked Questions

Q: Can individual relays on the module be configured for both normally open (NO) and normally closed (NC) physical configurations?

A: Yes. Each of the 16 channels can be mapped independently for normally open or normally closed physical logic configuration using jumper placements on the module circuit board or software configuration tables inside the AMS framework.

Q: What happens to the relay contacts if the module loses main rack backplane power?

A: The module executes its de-energized fail-safe state configuration. Depending on whether the channels are set to de-energize-to-trip or energize-to-trip, the contacts will default to their unpowered state to maintain safety interlock execution integrity.

Q: Does the discontinuation status affect the standard replacement procedures for active racks?

A: The component remains active for direct drop-in functional replacement in existing AMS 6500 chassis backplanes. No firmware modifications are required when exchanging identical A6740-10 hardware revisions.

Field Installation Guidelines

• Chassis Slot Placement and Fastener Torque: Insert the card into its designated slot in the AMS 6500 rack cage, ensuring the rear circuit edge completely seats into the backplane connectors. Hand-tighten the upper and lower front-panel retaining screws to establish permanent chassis ground continuity.
• Terminal Wiring and Cross-Talk Prevention: Route all high-voltage interlock trip lines through separate wiring slots from the low-voltage 4-20 mA or sensor input cables. Enforce standard wire stripping lengths to prevent exposed conductors from creating short circuits on adjacent terminal blocks.
• Inductive Load Suppression Barriers: When driving inductive loads such as heavy-duty external master trip solenoids or large contactor coils, install external flyback diodes (for DC loops) or RC snubbers (for AC loops) across the load terminals to eliminate voltage transients during relay break sequences.
