SKU: KJ3221X1-BA1 12P2531X062 VE4035S2B1

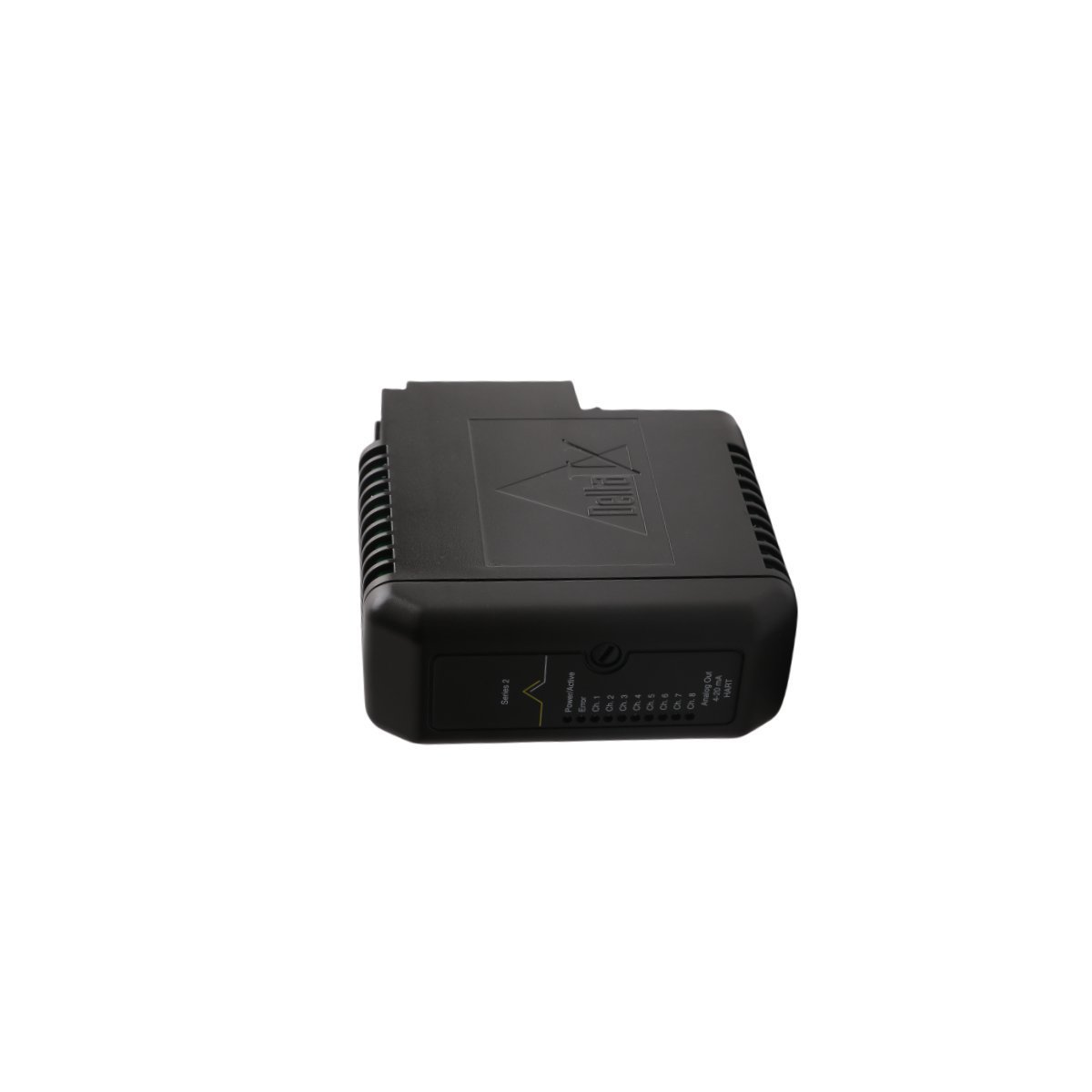

Emerson DeltaV KJ3221X1-BA1 12P2531X062 VE4035S2B1 Redundant Module

The Emerson KJ3221X1-BA1 (12P2531X062) is a high-reliability redundancy interface for DeltaV M-Series systems. Featuring G3-rated environmental protection and seamless failover logic, it enables 1:1 I/O redundancy to ensure maximum process uptime in mission-critical industrial applications.

Operational Function and Logic

The Emerson KJ3221X1-BA1 serves as the foundational communication interface for establishing high-availability I/O configurations within the DeltaV Distributed Control System (DCS). By facilitating the synchronization between a primary and secondary I/O card, this module actively prevents process interruptions caused by individual hardware failures. Once integrated into a redundant I/O carrier, the unit manages the seamless handover of field signals, ensuring that the controller maintains continuous visibility of the process. Because it utilizes a specialized redundancy bus, it allows the standby module to mirror the primary module’s state in real-time, providing a “bumpless” transfer during a failover event.

Performance Enhancements and Safety Features

Maximizes System Uptime: The module enables a 1:1 redundancy ratio for critical I/O channels. In doing so, it provides a secondary safety layer that protects against unplanned plant shutdowns due to hardware degradation or electronic faults.
Streamlines Hot-Swap Procedures: The KJ3221X1-BA1 allows technicians to replace a failed I/O module while the redundant partner maintains full control of the process. As a result, maintenance teams can perform repairs under live conditions without affecting the stability of the control loop.
Ensures High-Fidelity Signal Mirroring: By leveraging a dedicated high-speed backplane link, the module continuously verifies the health and data integrity of the redundant pair. Consequently, it ensures that the standby card is always “ready to take command” with the most current process values.
Resists Corrosive Industrial Gases: Beyond logical redundancy, the hardware is treated with a protective coating that complies with ISA-S71.04 Class G3 standards. Therefore, the module remains fully operational in harsh environments where airborne contaminants might otherwise cause silver or copper corrosion.
Enhances Fault Diagnostics: Finally, the module features sophisticated onboard monitoring that reports the redundancy status directly to the DeltaV Explorer. By providing this transparency, it allows operators to identify and resolve synchronization issues long before they escalate into a system-wide failure.
