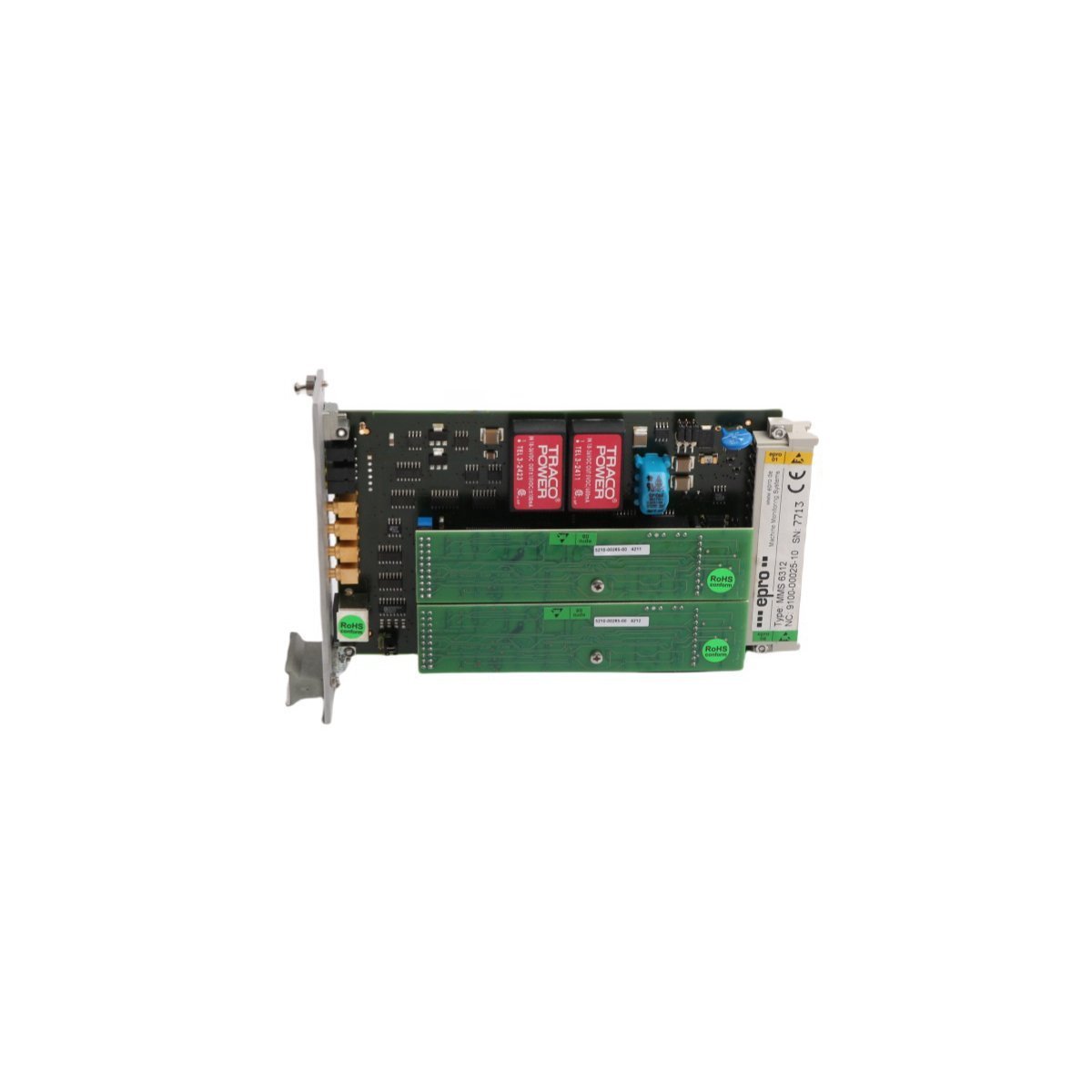

Emerson MMS6312 Dual Channel Rotational Speed Monitoring Module

Emerson MMS6312 Dual Channel Rotational Speed Monitoring Module

Technical Overview

The Emerson MMS6312 is a high-performance, dual-channel rotational speed monitor specifically engineered for the continuous supervision of turbine shafts and other critical rotating machinery. As a core component of the MMS6000 Machine Monitoring System, it processes signals from eddy current sensors or Hall-effect pickups to provide precise speed measurements, direction of rotation detection, and overspeed protection. Furthermore, by monitoring two channels simultaneously, the module ensures redundant safety and comprehensive data acquisition for industrial Distributed Control Systems (DCS).

Key Functional Characteristics

• Dual-Channel Synchronization and RedundancyThe module monitors two independent speed sensors concurrently. Because of this dual-path architecture, the system allows for the calculation of differential speeds or the implementation of 1-out-of-2 or 2-out-of-2 voting logic. Consequently, these emergency trip functions significantly enhance overall system reliability and prevent catastrophic mechanical failure.
• Advanced Signal Processing CapabilitiesUtilizing sophisticated digital filtering and high-speed algorithms, the MMS6312 delivers real-time speed data even in electrically noisy industrial environments. In addition to basic tracking, this precision is vital for identifying subtle speed fluctuations that could indicate mechanical imbalances or load instabilities.
• Robust Industrial ArchitectureEmerson has built this module to endure the rigors of power plants and refineries. Specifically, it features high-grade components that resist thermal stress and electromagnetic interference. Moreover, the hardware design facilitates high-density mounting in standard 19-inch racks, which effectively optimizes cabinet space.
• Proactive Safety and Self-DiagnosticsBeyond simple speed tracking, the MMS6312 includes built-in self-diagnostics that constantly monitor the integrity of the sensor loops and internal circuitry. As a result, operators receive immediate alerts regarding hardware faults, thereby preventing false trips and reducing unplanned downtime.

Specifications and Technical Data

• Manufacturer: Emerson (EPRO Series)
• Model Identifier: MMS6312
• Module Type: Dual-Channel Rotational Speed Monitor
• System Integration: MMS6000 / DCS / PLC
• Data Communication: Ethernet Router / RS232 Configuration Interface
• Unit Weight: 0.24 kg
• Module Dimensions: 31mm x 190mm x 129mm

Application Environment

The MMS6312 is primarily deployed in sectors requiring stringent overspeed protection, such as steam and gas turbine power generation, centrifugal compressor stations, and large-scale pumping facilities. Although Emerson officially discontinued the production of this series on December 31, 2018, the module remains a critical spare part. Therefore, it is essential for maintaining the safety compliance and operational life of existing legacy monitoring infrastructures.
