SKU: FBM222 P0926TL

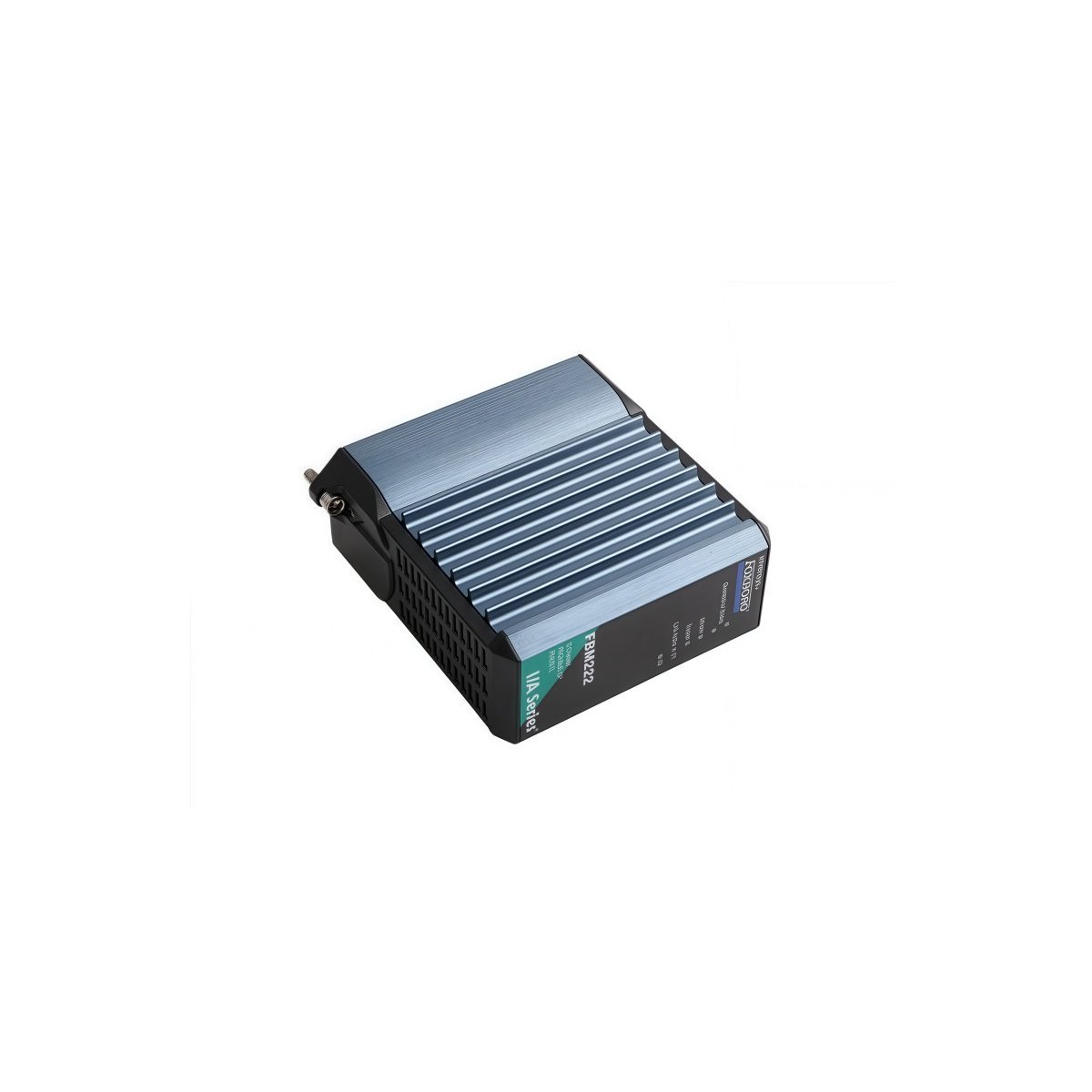

Foxboro Schneider Electric FBM222 P0926TL I/A Series PROFIBUS-DP Communication Interface Module

The Foxboro FBM222 (P0926TL) is a PROFIBUS-DP communication interface for the I/A Series DCS. It enables seamless integration of smart field devices like VFDs and MCCs into the Foxboro control environment, supporting high-speed data exchange up to 12 Mbps and advanced V1 diagnostics for optimized asset management.

Product Description

The Foxboro FBM222, identified by part number P0926TL, functions as a high-performance communication interface between the Foxboro I/A Series (or Foxboro Evo) system and PROFIBUS-DP field devices. This Fieldbus Module (FBM) acts as a gateway, allowing the Foxboro Field Control Processor (FCP) to exchange data seamlessly with motor control centers (MCCs), variable frequency drives (VFDs), and smart actuators. Because modern plants utilize diverse hardware, the FBM222 enables a unified control strategy by integrating these third-party devices directly into the DCS environment.

Furthermore, the module supports a wide range of baud rates up to 12 Mbps, ensuring high-speed data acquisition and deterministic control. The FBM222 architecture features a ruggedized, compact design that snaps onto standard FBM baseplates, supporting hot-swap capabilities for zero-downtime maintenance. Since it utilizes the advanced PROFIBUS-DP V0 and V1 protocols, the module provides not only process variables but also comprehensive diagnostic data from the field devices. Consequently, this module serves as a critical link for engineers aiming to optimize asset management and predictive maintenance workflows within a centralized Foxboro control architecture.

Key Technical Characteristics

Manufacturer: Foxboro (Schneider Electric)
Model Identification: FBM222
Part Number: P0926TL
Protocol Support: PROFIBUS-DP (Decentralized Periphery) V0 and V1
Communication Speed: Automatic baud rate detection from 9.6 kbps up to 12 Mbps
Module Type: Communication Interface (Single-width FBM)
Power Requirement: Input voltage via baseplate (typically 24 VDC)
Device Capacity: Supports up to 125 PROFIBUS slave devices (depending on configuration)
Diagnostics: Integrated LEDs for module status, network activity, and communication faults
Environmental Rating: Operating temperature range from -20°C to +70°C

Industrial Applications

Control system architects and field technicians deploy the FBM222 P0926TL to centralize the management of intelligent field equipment. Specifically, the module facilitates the following tasks:

Motor Control Integration: Monitoring and controlling VFDs and MCCs to manage pump and fan speeds in real-time.
Actuator Orchestration: Coordinating smart valve actuators in complex piping manifolds for oil and gas applications.
Power Management: Interfacing with protective relays and power meters to track energy consumption and electrical health.
Complex Sensor Networks: Gathering high-resolution data from multi-variable transmitters that utilize PROFIBUS connectivity.
