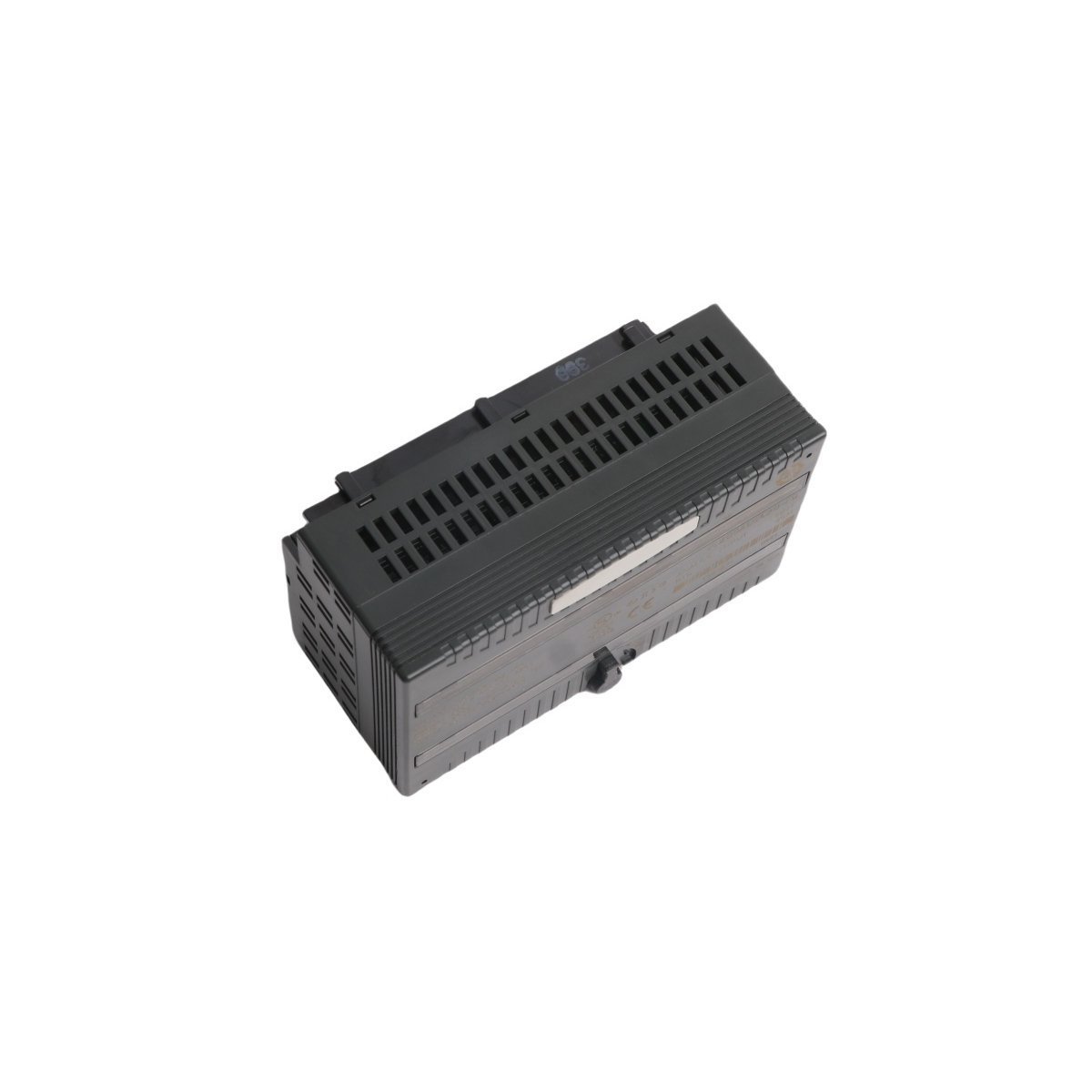

GE Fanuc IC200ALG620 VersaMax Analog RTD Input Module

The GE Fanuc IC200ALG620 is a 4-channel, 16-bit RTD input module for the VersaMax series. Supporting Platinum, Nickel, and Copper sensors in 3 or 4-wire setups, it offers high-precision temperature sensing with built-in diagnostics for open circuits and shorted inputs in a compact, isolated design.

Request a Quote

Technical Overview and Thermal Sensing

The GE Fanuc IC200ALG620 serves as a high-precision thermal interface for the VersaMax I/O system, specializing in Resistance Temperature Detector (RTD) monitoring. This module integrates four independent channels, each utilizing a dedicated 16-bit Analog-to-Digital Converter (ADC) to translate resistance into precise temperature data. Because it supports diverse sensor chemistry—including Platinum, Nickel, Copper, and Nickel/Iron—engineers can apply this module to a wide variety of industrial heating and cooling processes.

Precision Performance and Signal Processing

This module delivers exceptional accuracy, maintaining a precision of ±0.15% at 25°C. To maintain signal integrity across long cable runs, the IC200ALG620 accommodates both 3-wire and 4-wire RTD configurations, which effectively cancels out lead wire resistance. The module processes data at an update rate of 210 ms at 60Hz (or 230 ms at 50Hz), ensuring the PLC receives steady, filtered temperature updates.

Key Technical Characteristics

  • Brand: GE Fanuc / Emerson
  • Model Number: IC200ALG620
  • Input Type: RTD (Resistance Temperature Detector)
  • Number of Channels: 4 Independent Channels
  • Resolution: 16-bit
  • Supported Sensors: Pt 100/200/500/1000, Ni 120, Cu 10, Ni/Fe 604
  • Accuracy: ±0.1% to ±0.15% of full scale
  • Isolation: 250 VAC (User to Logic) / 1500 VAC (User to Frame)
  • Current Draw: 125 mA @ 5V / 125 mA @ 3.3V
  • Dimensions: 15.5 cm x 15 cm x 8.3 cm
  • Weight: 0.3 kg

Diagnostic Intelligence and Safety

Safety and uptime remain priorities for the IC200ALG620 architecture. The module continuously monitors for hardware and wiring anomalies, including open circuits, shorted inputs, and out-of-range conditions. When a fault occurs, the module instantly notifies the host controller and triggers the onboard amber LED. Furthermore, the green “OK” LED provides a quick visual confirmation of healthy module operation, while robust 1500 VAC isolation protects the sensitive backplane logic from external frame noise.
