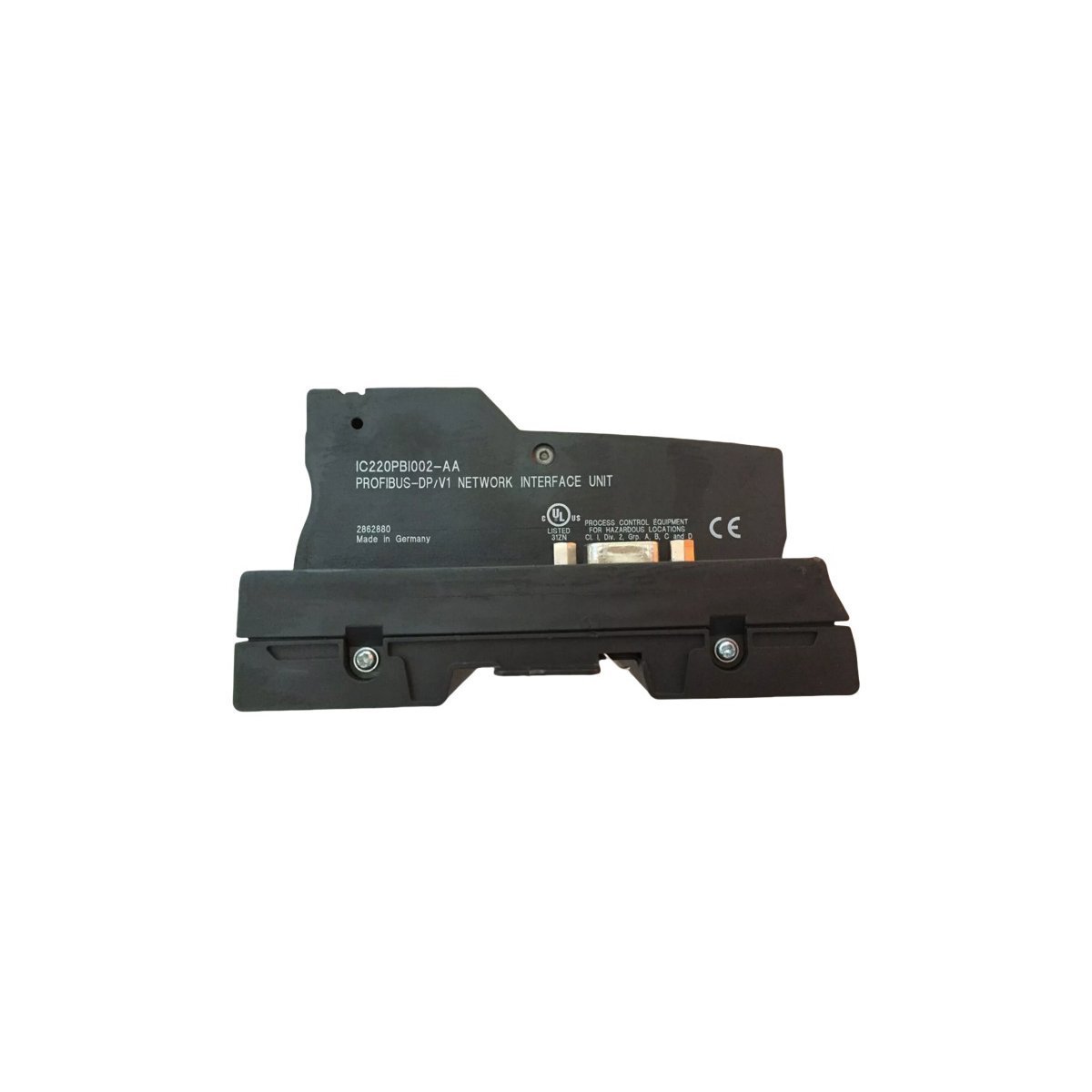

GE Fanuc IC220PBI002 VersaPoint PROFIBUS-DP Network Interface Unit

The GE Fanuc IC220PBI002 is a VersaPoint PROFIBUS-DP Network Interface Unit. This modular gateway connects up to 63 VersaPoint I/O slices to a PROFIBUS master, supporting 12 Mbps data rates and offering integrated power management for distributed automation.

Request a Quote

Technical Overview

The GE Fanuc IC220PBI002 functions as the primary communication gateway for the VersaPoint I/O system, acting specifically as a PROFIBUS-DP Network Interface Unit (NIU). This module provides the essential link between a PROFIBUS-DP master controller and a local cluster of VersaPoint I/O modules. By managing the high-speed data exchange across the internal backplane, the IC220PBI002 allows for a highly distributed automation architecture where I/O points can be placed directly at the point of sensing and control.

Functional Performance

As a slave device on the PROFIBUS network, this module handles the conversion of serial fieldbus data into the parallel bus signals required by the local I/O modules. The IC220PBI002 supports a modular “slice” architecture, where users can snap together digital, analog, and specialty modules to create a customized I/O station. It features integrated power management, providing the necessary voltage to the internal local bus and the I/O module circuitry. Furthermore, the NIU provides extensive diagnostic capabilities, transmitting module-level fault information and network status back to the central PLC for rapid system assessment.

Key Technical Characteristics

  • Manufacturer: GE Fanuc / Emerson Automation
  • Product Series: VersaPoint
  • Model Number: IC220PBI002
  • Interface Protocol: PROFIBUS-DP (Slave)
  • Maximum Data Rate: 12 Mbps (Auto-sensing)
  • Station Address: 1 to 126 (Selectable via DIP switches)
  • I/O Capacity: Supports up to 63 VersaPoint I/O modules per station
  • Connection Type: 9-pin D-sub female connector
  • Power Supply: 24 VDC input for local and segment power
  • Diagnostics: LED indicators for Bus Fail, Module Fail, and Power Status

Primary Applications

  • Distributed Automation: Implementing remote I/O clusters in large-scale manufacturing plants to minimize long-run multi-conductor wiring.
  • Machine Control: Serving as a compact communication hub for OEM machinery that requires integration into a plant-wide PROFIBUS network.
  • High-Density Monitoring: Aggregating signals from numerous digital and analog sensors into a single network node for efficient data collection.
  • Material Handling: Coordinating distributed sensors and actuators across conveyor systems and automated storage facilities.

Operational Advantages

  • Space-Saving Design: The slim, “slice-style” form factor maximizes panel space, allowing for more I/O points in smaller enclosures.
  • Rapid Deployment: The tool-free, DIN-rail mounting system and spring-terminal connections significantly reduce installation and maintenance time.
  • Deterministic Performance: Ensures reliable, high-speed synchronization between the field devices and the master controller, critical for high-speed process loops.
  • Robust Diagnostic Feedback: Detailed internal bus monitoring allows maintenance teams to pinpoint a specific failed module within a station without extensive manual testing.
