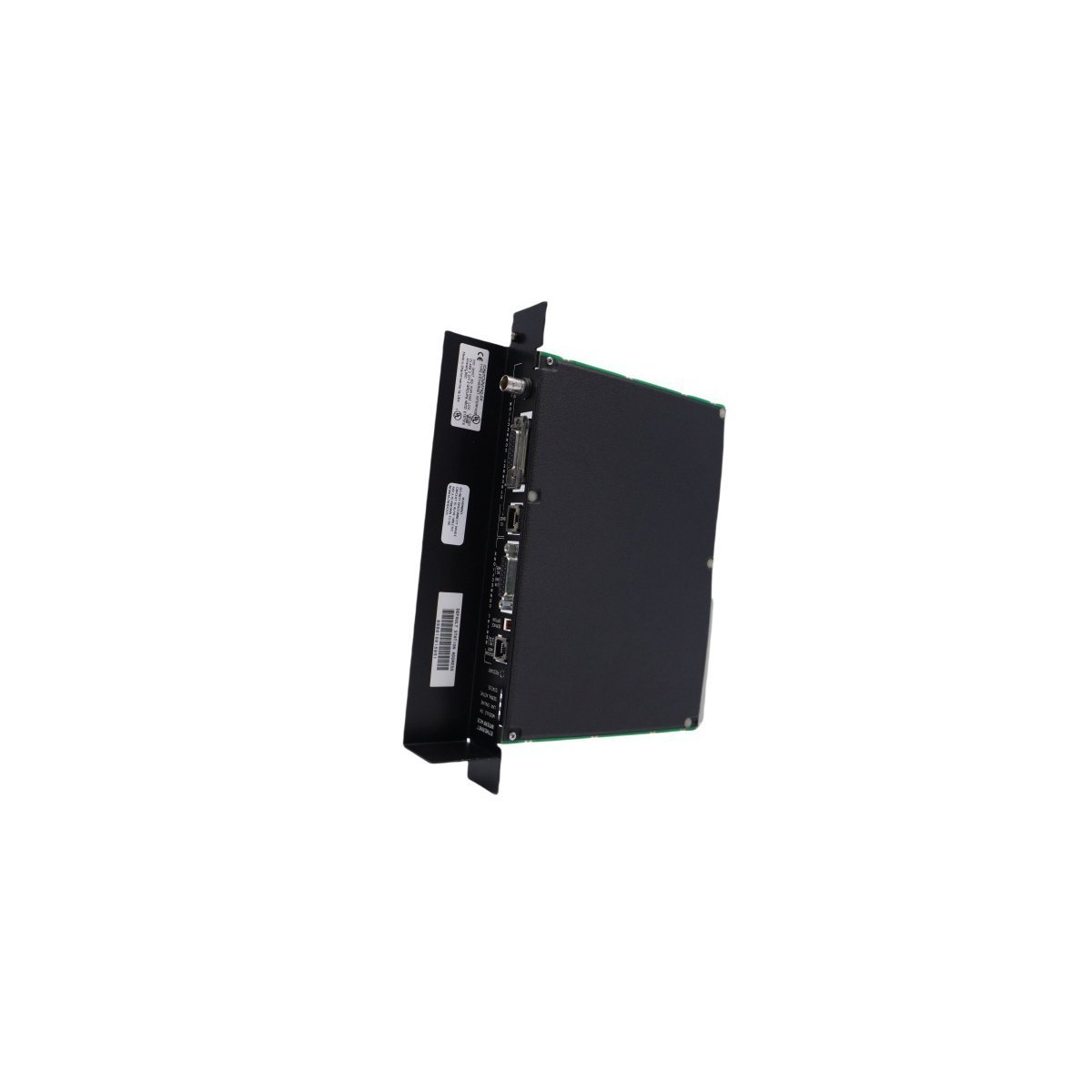

GE Fanuc IC697CMM741 Series 90-70 Ethernet Communications Controller

The IC697CMM741 is a single-slot Ethernet controller for GE Fanuc Series 90-70 PLCs. It provides robust TCP/IP and MMS connectivity, supporting high-speed data exchange and remote diagnostics for complex industrial networks.

Request a Quote

Product Overview

The GE Fanuc IC697CMM741 serves as a sophisticated communication gateway for the Series 90-70 PLC platform. Engineers utilize this module to integrate programmable controllers into high-speed industrial Ethernet environments, supporting both TCP/IP and MMS (Manufacturing Message Specification) protocols. By providing a direct link to IEEE 802.3 compliant LANs, the controller facilitates deterministic data exchange between the PLC and supervisory systems, human-machine interfaces (HMIs), or other networked controllers. Consequently, this interface acts as a mechanical necessity for large-scale automation projects where real-time process visibility and enterprise-level connectivity are mandatory.

Network Architecture and Protocol Support

The IC697CMM741 architecture simplifies network deployment by occupying only a single chassis slot, maximizing the available space for I/O modules. For connectivity, the device features a 15-pin D-type AUI connector, allowing operators to link the PLC to various Ethernet media via standard transceivers. Furthermore, the module stores its communication software and OSI/MMS firmware within RAM, which users can easily upgrade or reconfigure through the PLC backplane. To ensure system reliability, a dedicated battery backup protects the volatile memory during power outages. This safety feature preserves the resident software for up to six months, ensuring the controller resumes network operations immediately upon power restoration.

Operational Diagnostics and Management

To maintain high system uptime, the IC697CMM741 incorporates comprehensive station management and diagnostic tools. Three integrated LEDs on the front panel provide instant visual feedback regarding the operational state of the Ethernet link, software health, and internal hardware integrity. Moreover, the module supports standard network management functions, which allow engineers to monitor traffic loads and troubleshoot connection faults remotely. Because the module offloads complex communication processing from the main CPU, it ensures that the PLC maintains its primary control loop speed even during heavy network data transfers.

Technical Specifications

  • Manufacturer: GE Fanuc (Emerson)
  • Model Number: IC697CMM741
  • Product Series: Series 90-70
  • Module Type: Ethernet Communication Controller
  • Protocol Support: TCP/IP, MMS, OSI, SRTP
  • Network Interface: 15-pin AUI (D-type)
  • Data Rate: 10 Mbps (IEEE 802.3 standard)
  • Memory Protection: Battery-backed RAM (up to 6 months)
  • Operating Temperature: 0 to 60 deg C
  • Weight: 0.8 kg
  • Dimensions: 4 cm x 21.8 cm x 29.1 cm
  • Origin: USA
