SKU: DS200SHVMG1A

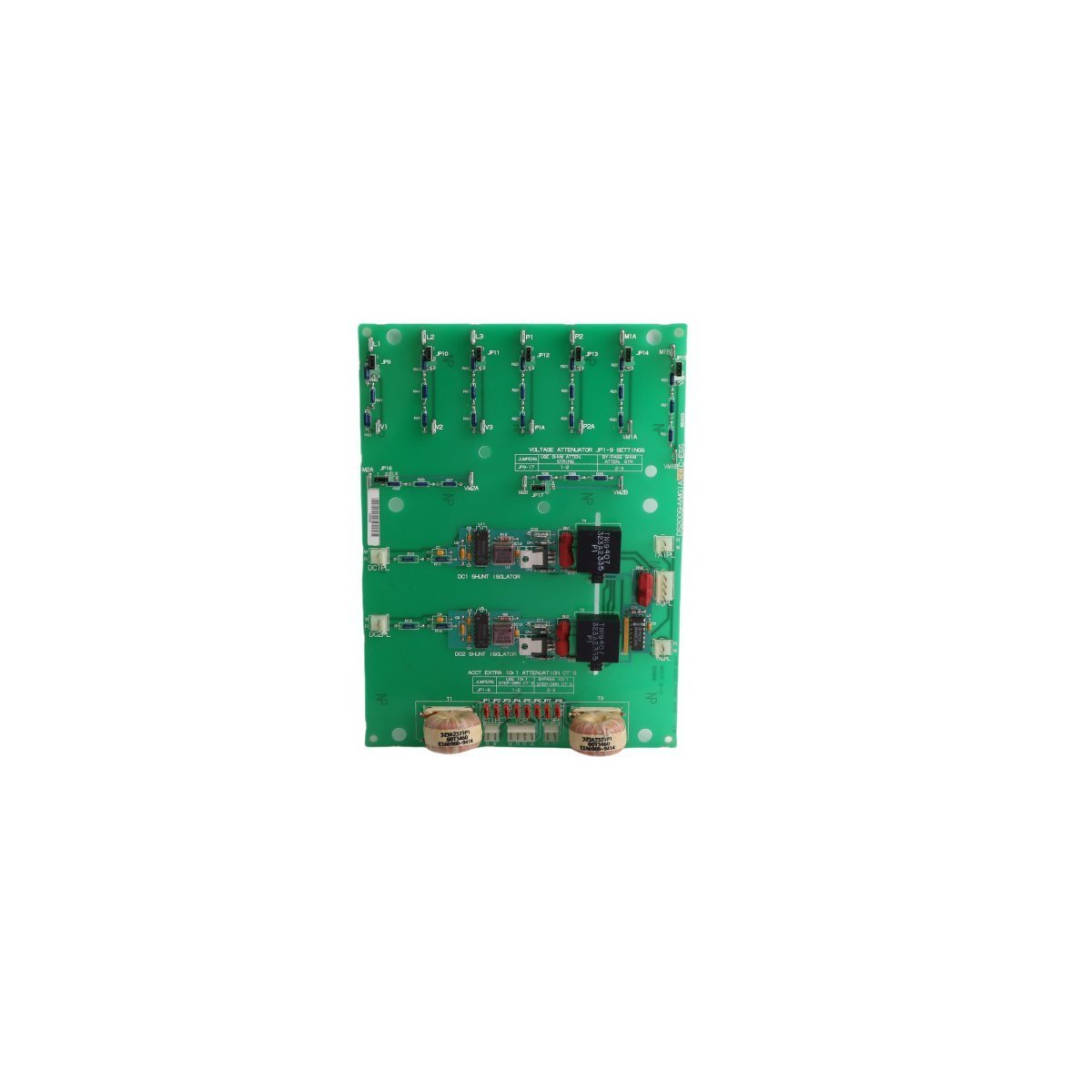

General Electric DS200SHVMG1ACC High-Voltage Analog I/O Board Mark V Speedtronic

The General Electric DS200SHVMG1ACC is an extended high-voltage analog I/O module for the Speedtronic Mark V system. By leveraging precision isolation and high-density sensing, it provides a safe and accurate interface for generator synchronization and auxiliary analog monitoring in demanding turbine control environments.

GE DS200SHVMG1ACC | Extended High-Voltage Analog I/O Board | Speedtronic Mark V

Core Architecture and Signal Logic

The GE DS200SHVMG1ACC functions as a specialized high-voltage interface designed to expand the sensory capabilities of the Speedtronic Mark V control system. By utilizing a high-density “Extended” I/O layout, the module actively captures critical feedback from power distribution networks and generator terminals. Once integrated into the system rack, the board coordinates the translation of raw high-magnitude electrical data into isolated, logic-level signals. Effectively, this hardware bridges the gap between high-power field equipment and the sensitive digital processors, allowing the DCS to manage complex electrical parameters without risking internal circuitry.

Technical Performance and Operational Safeguards

Optimizes High-Voltage Tracking Accuracy: The board incorporates precision potential transformers and attenuation networks. Accordingly, it scales high-voltage inputs down to millivolt levels with extreme fidelity; consequently, it enables the sub-millisecond tracking of phase angles and line frequency necessary for stable generator synchronization.
Suppresses Environmental Signal Noise: By leveraging differential input stages and integrated shielding, the DS200SHVMG1ACC actively neutralizes common-mode interference. As a direct consequence, the system maintains signal purity even in the high-EMI (Electromagnetic Interference) environment of a turbine deck, preventing the false trips associated with signal distortion.
Simplifies Infrastructure Expansion: The “Extended” architecture allows for the simultaneous monitoring of multiple auxiliary analog channels. Notably, this allows plant engineers to add vibration sensors or thermocouples to the existing rack; ultimately, this facilitates system scaling without requiring a complete hardware overhaul of the I/O carrier.
Ensures Galvanic Isolation and Safety: Beyond its monitoring duties, the SHVM board provides a robust dielectric barrier between field wiring and the system backplane. Therefore, it protects the central control logic from catastrophic ground faults or high-voltage surges, ensuring continuous plant uptime during electrical transients.
Accelerates Field Diagnostic Procedures: Finally, the module features accessible test points and hardware configuration jumpers.

Technical Specifications

Brand: General Electric (GE)
Model Code: DS200SHVMG1ACC
Product Series: Speedtronic Mark V
Board Category: High-Voltage / Extended Analog I/O
Isolation Voltage: Rated for 1500V DC (Galvanic isolation)
Signal Support: PT (Potential Transformer) and CT (Current Transformer) inputs
Revision Status: G1ACC (Improved thermal stability and noise rejection)
Communication Interface: Dual high-density ribbon cable headers
Coating: G3-rated conformal coating for harsh environment resilience
Temperature Limits: 0 °C to +60 °C (Operating range)
Compatible Racks: Mark V R, S, and T cores
