Purchase the ABB HIEE400659R1 GD9993B-E I/O board. Available in Brand New, Original Stock condition with Global Shipping. Features 5 A current handling, Profinet connectivity, and heavy-duty DCS optimization.

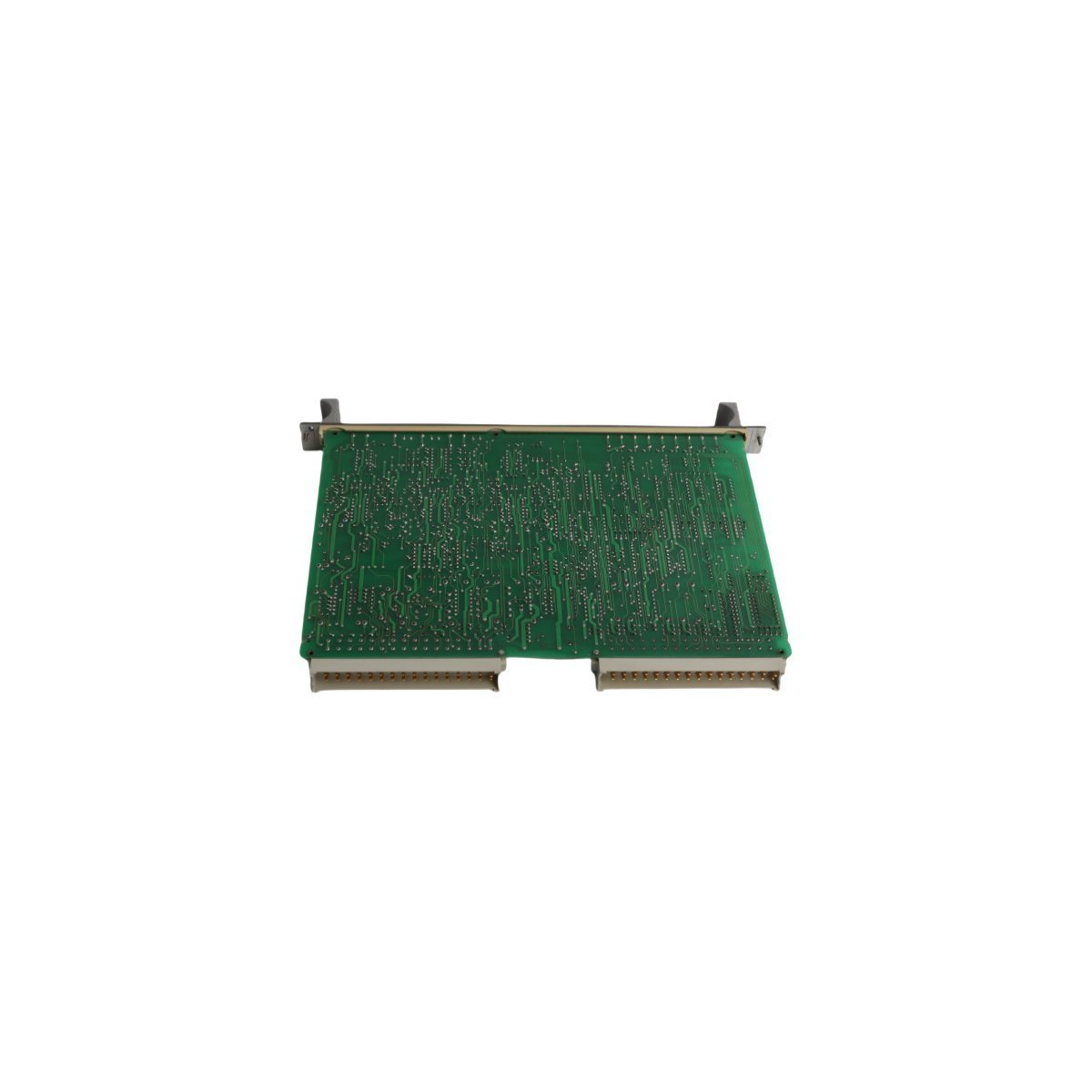

Configured for direct physical and electrical execution in UNITROL Excitation Systems networks, the ABB HIEE400659R1 GD9993B-E (HIEE400659R1 GD9993B-E Industrial I/O Module) provides direct physical/electrical execution. The hardware operates as a dedicated measurement and control board to interface feedback loops within power generation and regulation platforms.
Hardware Specifications
Parameter
Specification
Model
HIEE400659R1 GD9993B-E
Brand
ABB
Origin
Sweden
Weight
0.32 kg
Dimensions
1.8 x 19.6 x 26.1 cm
Operating Temp
-25 to +60 deg C
Power Consumption
24 VDC Input
Output Current
5 A
Network Protocols
Profinet, MODBUS TCP/IP
Application System
UNITROL Excitation Systems / DCS
Communication Service
Ethernet router Interfacing
HS Code
8537101190
Industrial Control & Drivers
The ABB HIEE400659R1 GD9993B-E maintains stable execution parameters across the system’s primary backplane bus communication velocity channels. Optimized for synchronous generator control loops, it enables high-density I/O scaling directly inside excitation circuit frames. Network traffic relies on determinism via Profinet and MODBUS TCP/IP communication layers to prevent transmission jitter during transient field changes. The core board infrastructure features standard firmware flash compatibility, allowing real-time parameter tracking and processing verification across active control topologies.
Frequently Asked Questions
Q: Does the 5 A output current capability apply across all channels concurrently?
A: No. The 5 A specification defines the maximum rated thermal current limit handled through the primary power distribution paths of the board architecture under specific load balances.
Q: Is specific field calibration required for the HIEE400659R1 GD9993B-E upon module replacement?
A: No. The module matches factory internal calibration limits. Configuration parameters are downloaded via the central application processor during system initialization and backplane bus synchronization.
Field Installation Guidelines
Chassis Alignment and Electrostatic Discharge (ESD): Wear an approved grounding wrist strap prior to handling or inserting the board. Align the board edges with the enclosure card guide rails and slide smoothly into the backplane connector block.
Wiring Separation Constraints: Run low-voltage logic wires and digital networks in distinct cable ducts separated from high-voltage excitation field lines to shield the board components from EMI.
Thermal Management: Ensure external airflow across the 1.8 cm module face meets standard cubic-feet-per-minute requirements when operating near the upper boundary limit of 60 deg C.
Configured for high-density signal distribution in DeltaV M-series I/O Subsystem networks, the Emerson KJ4001X1-BE1 12P0818X072 (KJ4001X1-BE1 8-Wide IO Carrier) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
Model
Description
KJ4001X1-BE1
DeltaV M-series 8-wide I/O carrier with integrated shielding
The KJ4001X1-BE1 acts as the physical backbone for M-series I/O card mounting and signal termination. This carrier features a shielded design to isolate backplane communications from external electromagnetic interference (EMI). It supports 8-wide module placement, facilitating high-density I/O configurations while maintaining strict electrical separation between signal loops. The carrier integrates with the DeltaV system bus to manage data throughput and power distribution across all installed I/O modules. Users must adhere to proper shielding ground practices to ensure the 4-20 mA HART loop protocol signals maintain their rated accuracy during transmission.
Frequently Asked Questions
Q: Does the carrier support hot-swapping of I/O modules?A: Yes, the DeltaV M-series backplane architecture supports the removal and insertion of I/O modules while the carrier is energized, provided the specific I/O module type allows for such operations under the defined safety and process conditions.Q: How does the integrated shielding function?A: The carrier incorporates a conductive chassis plane that connects to the system earth ground. This plane acts as an EMI shield for the underlying bus communication traces, preventing noise coupling into sensitive analog input circuits.
Field Installation Guidelines
Mount the carrier horizontally on a standard DIN-rail or chassis plate within the control cabinet.
Verify that the carrier backplane ground lug connects securely to a low-impedance earth ground to satisfy EMI protection requirements.
Ensure all I/O modules seat firmly into the connector slots to prevent backplane bus communication timeouts or intermittent signal loss.
Maintain adequate clearance above and below the carrier to facilitate heat dissipation and cabling access.
Inspect all terminal blocks for loose connections after installation to ensure low-resistance contact for all signal and power circuits.
Purchase the genuine GE IC694MDL742 PACSystems RX3i discrete sinking voltage output module. Available in brand new original stock condition with global shipping availability. Contact technical support to secure fully tested industrial control hardware.
Order the genuine GE IC200PBI001 VersaMax Profibus-DP network interface module from our factory-direct stock. This brand new, fully certified hardware is available with global shipping for immediate remote I/O node integration.
Get the genuine Allen-Bradley 1756-OB16E ControlLogix Discrete Output Module featuring 16 electronically fused points and 24 VDC sourcing outputs. Discontinued Spare, Original Surplus with Global Shipping. Minimize automation downtime now.
The GE IS220PAICH2A is a high-performance analog I/O pack for Mark VIe turbine control systems. It features 10 configurable analog inputs and 2 current loop outputs, supporting both simplex and TMR configurations for critical process control and monitoring.
The EMERSON PR6423/009-031 CON041 delivers stable eddy-current transformation for shaft dynamic tracking. Brand New, Original Stock, fully certified with Global Shipping. Minimize critical machine downtime—Request a quote now.
The GE IS200SCSAS1AEB is a Simplex Serial Communication (SSCA) I/O board for Mark VIe systems. It supports six channels of RS-232, RS-485, and RS-422 communication, featuring an on-board ID chip for automated diagnostics and flexible DIN-rail or cabinet mounting options.
The GE IS220PDIOH1A is a high-performance Mark VIe Discrete I/O module providing 24 contact inputs and 12 relay outputs. Featuring dual Ethernet redundancy and opto-isolation, it ensures reliable digital signal management for gas turbine and DCS applications.
The GE IS200TBAIS1C is a versatile Analog I/O Terminal Board for the Mark VIe series, supporting both Simplex and TMR configurations. It features three DC-37 pin connectors, an integrated ID chip for automated diagnostics, and high-precision current monitoring, making it an essential component for reliable turbine control and signal processing.
The HIMA HIMatrix F3DIO20/802 is a SIL 3-certified Remote I/O Module featuring 20 digital inputs and 8 digital outputs. Designed for decentralized safety-related automation, this module ensures high-speed data transmission over Ethernet with maximum fault tolerance. It provides a robust, German-engineered solution for emergency shutdown and process safety applications in harsh industrial environments.
The GE IS220YPROS1A is a high-speed backup protection I/O module designed for the Mark VIe control system. It provides critical overspeed monitoring and emergency shutdown logic for turbines, featuring dual-port redundancy and TMR capabilities to ensure maximum power plant safety and reliability.
The Emerson KJ4001X1-BE1 (12P0818X092) is an 8-wide I/O interface carrier with an integrated shield bar for the DeltaV M-series system.It provides a rugged, G3-certified mounting platform for 8 I/O modules, supporting LocalBus power distribution and hot-swappable expansion in hazardous industrial environments.
