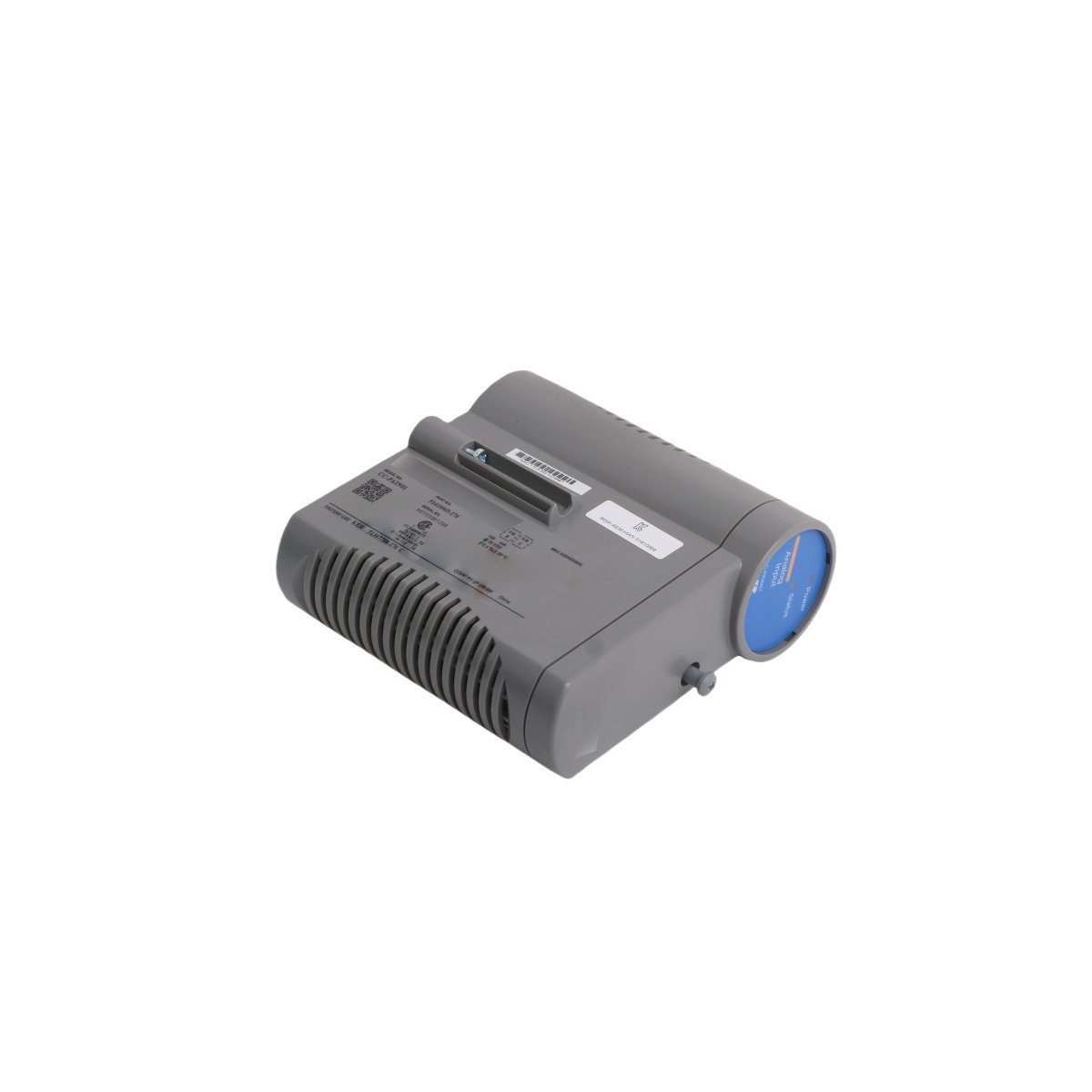

Honeywell CC-PAIN01 Analog Input Module

The Honeywell CC-PAIN01 serves as a high-density analog interface for the Experion PKS Series C platform. This module converts continuous electrical signals from field sensors into digital values for the controller. It typically processes standard current signals from transmitters measuring pressure, level, and flow. Because it integrates directly into the Series C I/O row, the module ensures low-latency data updates. This allows the DCS to maintain tight control over volatile process variables. Furthermore, the hardware provides reliable performance without the added complexity of HART communication protocols.

Technical Specifications

Industrial Durability and Design

The CC-PAIN01 features a ruggedized enclosure designed for harsh industrial environments. Its vertical orientation optimizes natural convection to prevent overheating in control cabinets. Moreover, the compact 0.3 kg frame allows for high-density installation in modern DCS racks. This design specifically reduces the overall footprint of the automation hardware. Since it lacks moving parts, the module resists the vibrations found in heavy manufacturing plants. Consequently, it delivers a long service life with minimal physical maintenance requirements.

Operational Safety and Diagnostics

Advanced onboard diagnostics monitor the health of each input channel constantly. The module identifies field wiring issues and signal out-of-range conditions immediately. Because it reports these faults to the Experion operator station, maintenance teams respond faster. This proactive monitoring prevents minor sensor errors from escalating into system-wide trips. Furthermore, the hardware supports redundant configurations to increase overall system availability. This ensures continuous process monitoring even during a single module failure.
