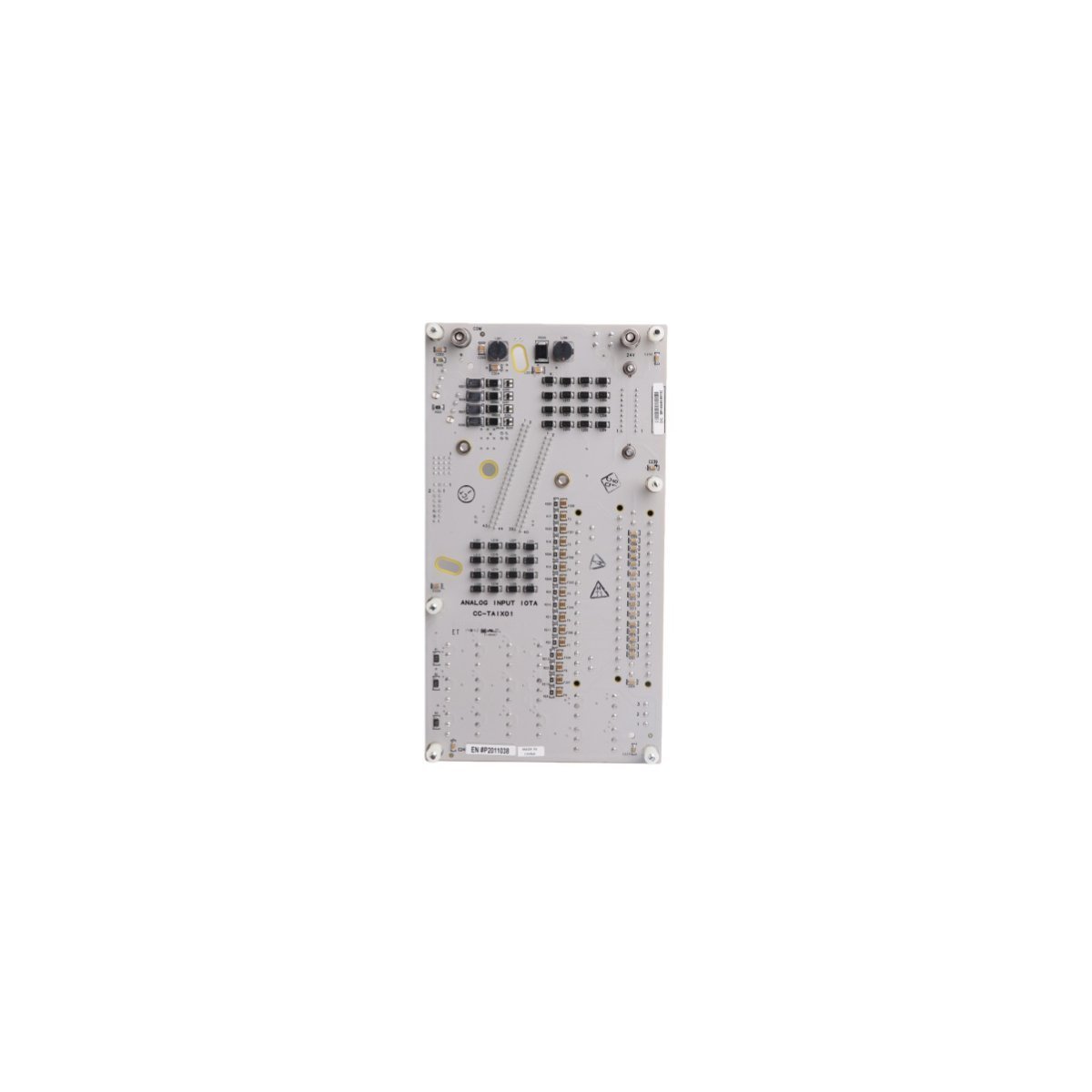

Honeywell CC-TAID01 51306733-175 Analog Input Module

The Honeywell CC-TAID01 51306733-175 is a 16-channel Analog Input IOTA for Experion PKS systems. It features 16-bit resolution, a 50ms scan rate, and supports 4-20mA or 1-5V signals. This rugged module ensures precision data acquisition in harsh industrial environments.

The Honeywell CC-TAID01, identified by part number 51306733-175, serves as a high-density Input Output Termination Assembly (IOTA). This module integrates seamlessly with the Experion PKS Series C architecture. It provides 16 channels for precise analog signal acquisition. Control engineers utilize this module to interface field transmitters with the primary controller. It supports critical industrial processes by delivering high-resolution data in real time.

Technical Specifications

Feature	Specification Details
Brand	Honeywell
Model Number	CC-TAID01
Part Number	51306733-175
Input Channels	16-Channel Differential
Signal Ranges	4-20 mA, 1-5 VDC, 0-5 VDC
Converter Resolution	16-Bit
Accuracy	±0.075% of Full Scale
Scanning Rate	50 ms (All channels)
Operating Temp	-40°C to +85°C
Physical Dimensions	7 x 14 x 14.5 cm
Origin	United States

Advanced Signal Processing and Precision

The CC-TAID01 module utilizes 16-bit resolution to capture fine process variations. Consequently, it achieves a repeatability rating of ±0.1% for consistent measurements. This hardware effectively filters electrical noise through a 70 dB common mode rejection ratio. Furthermore, a -60 dB crosstalk rating prevents signal bleeding between adjacent channels. These features ensure data remains clean in high-interference factory environments.

System Integration and Versatility

This IOTA module interfaces with both 2-wire and self-powered transmitters. Moreover, it accepts current and voltage signals without requiring external hardware changes. The design provides individual channel protection to prevent localized faults from spreading. It operates within the Experion PKS framework to facilitate rapid system configuration. The rugged construction supports deployment in extreme climates.

Operational Reliability

Honeywell engineered this module for mission-critical applications. It features a fuse-free design to simplify long-term maintenance tasks. Additionally, the fast 50 ms scan rate enables highly responsive process monitoring. This unit maintains stability during thermal fluctuations. It serves as a cornerstone for reliable data acquisition in DCS environments.
