SKU: CC-TAIX51

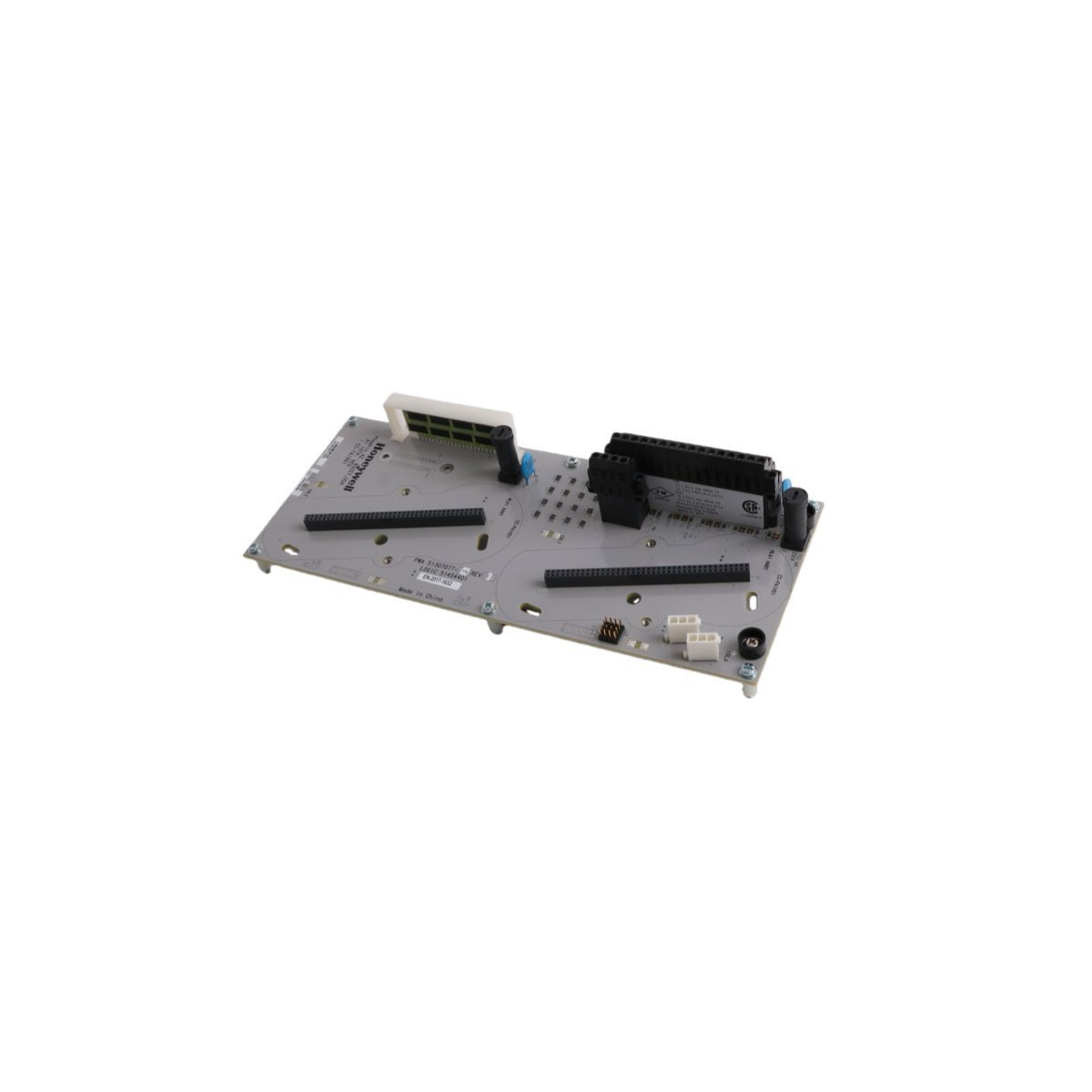

Honeywell CC-TAIX51 Analog Input Module

The Honeywell CC-TAIX51 is a 16-bit Analog Input IOTA module for the Experion PKS system. It supports 0-20mA and 0-10V signals with high-speed 100kHz sampling. This rugged 24V DC module operates from -40°C to +85°C and features Modbus TCP/RTU connectivity for advanced industrial data acquisition.

The Honeywell CC-TAIX51 serves as a high-precision interface for analog data acquisition within the Experion PKS architecture. This module utilizes advanced signal processing to convert field measurements into actionable digital data. It supports a variety of standard signal types, including 0-20mA, 0-5V, and 0-10V inputs. Consequently, it enables seamless integration with sensors across manufacturing, energy, and infrastructure sectors. The unit provides the reliability necessary for mission-critical industrial automation tasks.

Technical Specifications

Feature	Specification Details
Brand	Honeywell
Model Number	CC-TAIX51
Resolution	16-bit A/D Conversion
Sampling Rate	Up to 100 kHz
Input Types	0-20mA, 0-5V, 0-10V
Power Supply	24V DC Nominal
Power Consumption	Less than 2W
Operating Temperature	-40°C to +85°C
Humidity Range	5% to 95% (Non-condensing)
Communication Protocols	Modbus RTU, Modbus TCP

Precision Engineering and Sampling Performance

This Analog Input Module features a high-resolution 16-bit converter for superior measurement accuracy. It achieves rapid sampling rates of 100kHz to capture high-frequency process fluctuations. Therefore, operators can maintain tighter control over volatile process variables in real time. The module also incorporates Ultra Large Scale Integrated Circuit technology to enhance thermal stability. It functions consistently across an extreme temperature range from -40°C to +85°C. This ruggedness ensures long-term performance in unconditioned industrial environments.

System Connectivity and Compliance

The CC-TAIX51 offers dual-protocol support to bridge the gap between field devices and supervisory systems. It communicates effectively via both Modbus RTU and Modbus TCP interfaces. This flexibility allows for easy integration into existing Ethernet-based or serial control networks. Furthermore, the module adheres to strict international standards including CE, RoHS, and UL certifications. Its low power profile of under 2W reduces the overall thermal load within the control cabinet. These features establish the CC-TAIX51 as a versatile solution for modern DCS infrastructure.

Primary Operational Benefits

High-speed sampling captures rapid signal changes for better process visibility.
Universal input support reduces the need for multiple specialized module types.
Extreme environmental ratings permit installation in the harshest field conditions.
Low energy consumption improves the reliability and lifespan of cabinet components.
