Honeywell FC-DCOM-232/485 Safety System Interface Module

Request a Quote

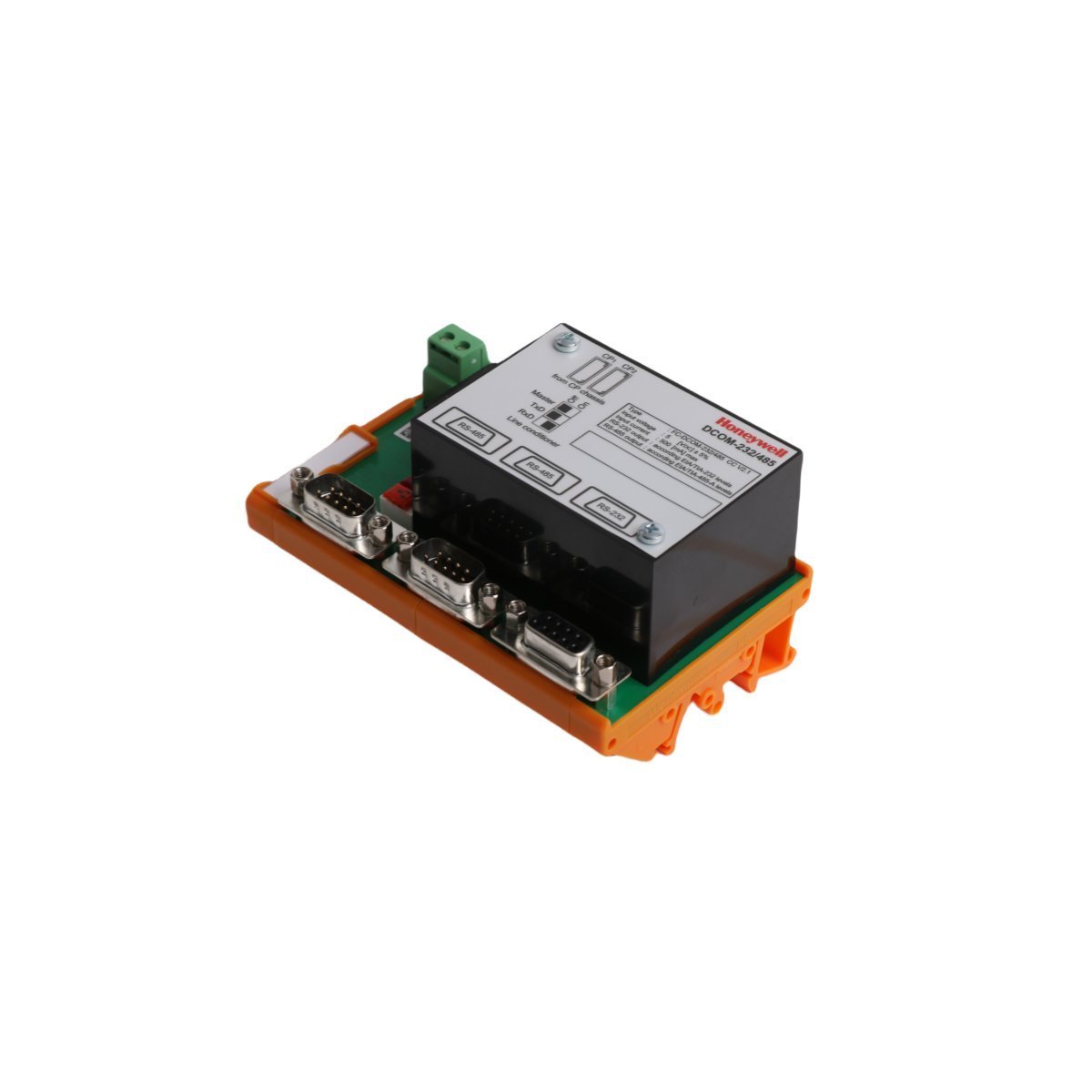

The Honeywell FC-DCOM-232/485, also cataloged as the DCOM-232/485 Interface Module, operates as a dedicated hardware component for serial protocol translation between RS-232 and RS-485 communication channels within Honeywell DCS safety system platforms.

Hardware Specifications

ParameterSpecification
ModelFC-DCOM-232/485
Base ModelDCOM-232/485
BrandHoneywell
OriginUSA
Module TypeInterface Module
Weight0.14 kg
Dimensions11 x 7 x 6 cm
HS Code8537101190
Communication ProtocolsRS-232, RS-485
Minimum Order Quantity1

Channel Isolation & Signal Conditioning

The FC-DCOM-232/485 interface module incorporates dedicated channel-to-channel isolation circuitry to mitigate common-mode voltage offsets across extended physical serial links. During serial data exchange between RS-232 point-to-point lines and multi-drop RS-485 networks, internal galvanic barriers prevent ground loop currents from propagating into central DCS backplane logic. The hardware maintains signal integrity and differential transmission levels across long-distance field cable runs without inducing loop noise or data corruption.

Frequently Asked Questions

Q: What physical interfaces are converted by the FC-DCOM-232/485 module?

A: The module performs bi-directional physical level translation between standard point-to-point RS-232 signals and differential multi-drop RS-485 serial communication lines.

Q: How does the module handle ground potential differences on long field runs?

A: Integrated channel-to-channel isolation decouples the field serial interface from internal logic circuitry, suppressing ground loop noise and protecting backplane electronics.

Field Installation Guidelines

  • Mounting and Enclosure: Install the module inside an IP54 or NEMA 12 rated protective enclosure to safeguard components from industrial airborne contaminants and ambient moisture.
  • Shield Grounding: Connect serial cable drain wires directly to the designated cabinet earth ground bar at a single point to minimize electrical interference.
  • Wiring Separation: Route low-voltage RS-232/RS-485 serial communications cabling through dedicated conduits, maintaining physical separation from high-voltage AC power lines and motor drives.
  • Terminal Engagement: Ensure all wiring terminals are secured with specified torque limits to prevent intermittent communication dropouts caused by vibration.
