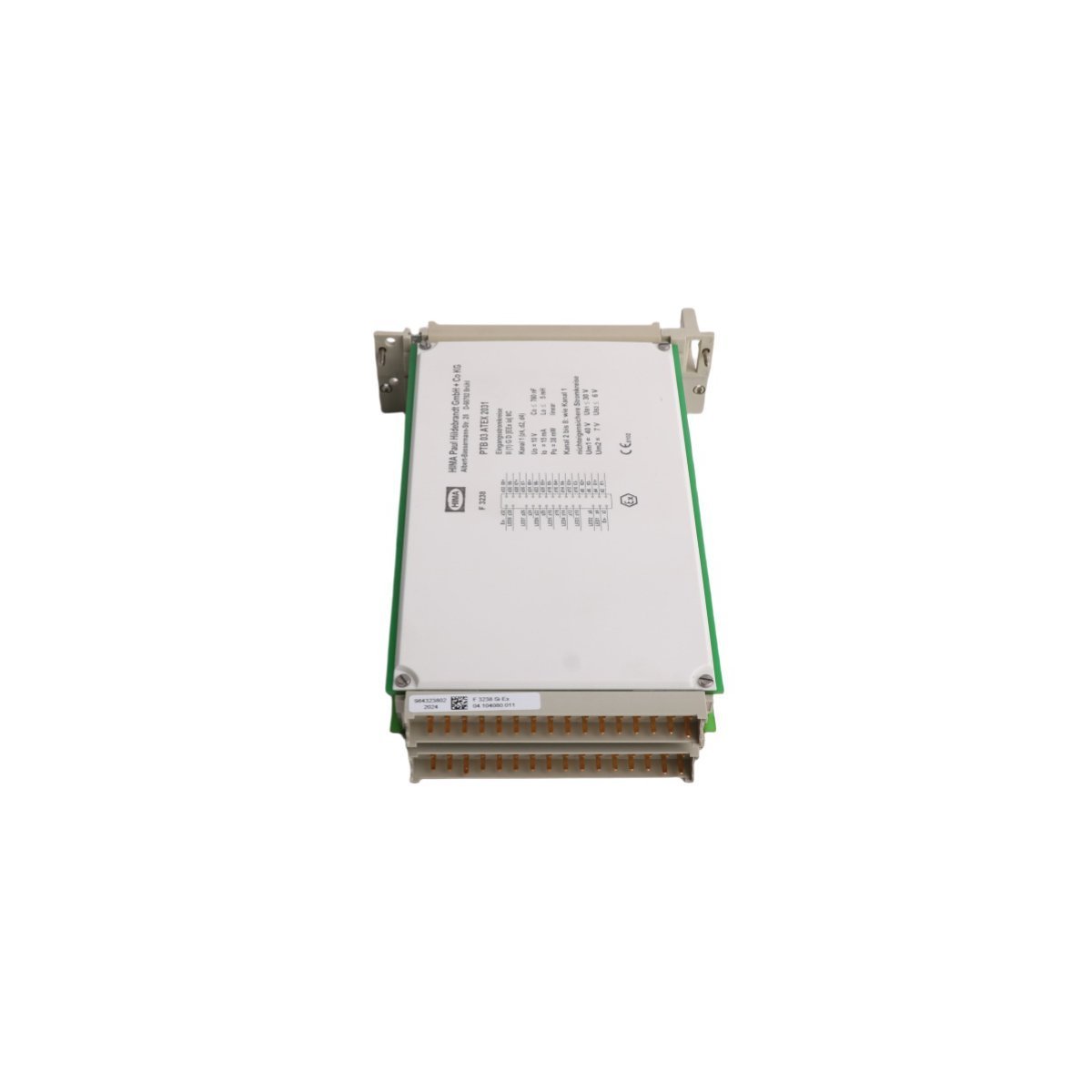

HIMA F3238 8-Channel Safety-Related Digital Input Module

The HIMA F3238 is a 8-channel safety-related digital input module designed for H41q and H51q systems. It features comprehensive diagnostics and galvanic isolation, providing reliable signal monitoring for critical emergency shutdown and fire and gas applications.

Request a Quote

Product Overview

The HIMA F3238 functions as a high-integrity digital input interface specifically engineered for the H41q and H51q safety systems. Primarily, this module monitors critical field signals by converting incoming digital data into processed information for the safety CPU. Consequently, it plays a vital role in Emergency Shutdown (ESD) and Fire and Gas (F&G) systems where signal accuracy is mandatory. By utilizing advanced internal diagnostics, the F3238 ensures that every input remains monitored for line faults, thereby maintaining the highest levels of functional safety in hazardous environments.

Technical Performance and Functional Features

  • Multi-Channel Monitoring: In addition to its safety architecture, the module provides eight independent input channels, which allows for the simultaneous supervision of various field sensors and switches.
  • Safe Signal Processing: Furthermore, the F3238 evaluates input states through a fail-safe mechanism, ensuring that any detected fault results in a defined safe state for the process.
  • Integrated Diagnostic Capabilities: To enhance reliability, the internal circuitry continuously performs self-tests to identify short circuits or open-circuit conditions.
  • Robust Galvanic Isolation: Moreover, the module incorporates electrical isolation between the field level and the logic level. As a result, it shields the central controller from transient surges and external electrical noise.
  • Broad Environmental Tolerance: Regarding physical durability, the module operates efficiently within a temperature range of -20°C to +60°C, making it suitable for standard industrial cabinet installations.

Operational Compatibility and Integration

System engineers can seamlessly integrate the F3238 into existing HIMA architectures due to its standardized plug-in design and backplane compatibility. In addition to ease of installation, the module supports hot-swapping in redundant configurations, which significantly minimizes system downtime during maintenance intervals. Moreover, because the F3238 adheres to rigorous TUV and CE safety standards, it satisfies the strict regulatory demands of the global petrochemical and energy sectors. Ultimately, these features combine to provide a reliable solution for high-demand safety instrumented functions (SIF).

Technical Specifications Summary

  • Manufacturer: HIMA
  • Model Designation: F3238
  • System Architecture: H41q / H51q Systems
  • Module Type: 8-Channel Digital Input Module
  • Input Signal Type: Safety-Related Digital Inputs
  • Operating Temperature: -20°C to +60°C
  • Protection Rating: IP20
  • Mechanical Format: Compact Plug-in Card
Tags: ,
