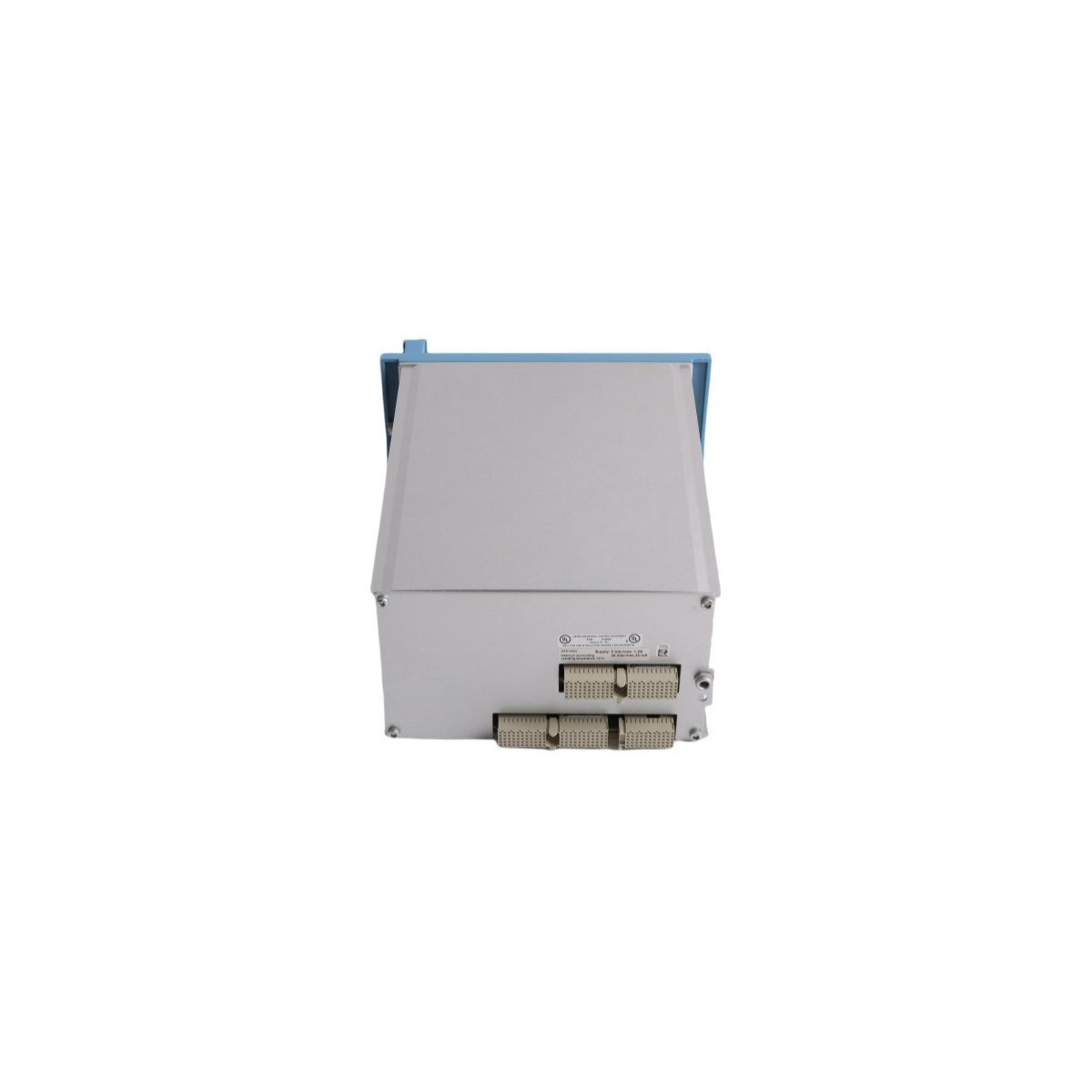

Honeywell FC-QPP-0002 V2.0 Safety Manager Quad Processor Module

Product Overview

The Honeywell FC-QPP-0002 V2.0 functions as the primary control engine for the Honeywell Safety Manager (SM) platform. This module manages complex safety-critical logic to protect high-risk industrial environments. By utilizing a quadruple processor architecture, the unit delivers high-speed execution of Safety Instrumented Functions (SIF) while maintaining a deterministic response. This version 2.0 hardware provides enhanced computational power, ensuring that the system identifies and reacts to process deviations within milliseconds to preserve the integrity of the plant and its personnel.

Technical Specifications

• Brand: Honeywell
• Part Number: FC-QPP-0002
• Hardware Revision: V2.0
• Device Category: Quad Processor Module
• System Integration: Honeywell Safety Manager / Fail-Safe Controller (FSC)
• Safety Certification: SIL 3 rated according to IEC 61508 standards
• Redundancy Level: Quadruple Modular Redundancy (QMR)
• Execution Type: Deterministic, real-time multitasking logic
• Diagnostic Features: Continuous background self-testing and LED status monitoring
• Mounting: Standard Safety Manager Chassis slot

Core Functional Capabilities

The FC-QPP-0002 V2.0 coordinates four independent processing paths to achieve exceptional fault tolerance and comprehensive diagnostic coverage. Consequently, the module can isolate internal hardware failures without interrupting the safety logic execution. Furthermore, the V2.0 firmware optimizes communication protocols, which allows for the seamless management of expanded I/O counts. If the system detects a critical internal error, it automatically triggers a fail-safe state or transfers control to a redundant partner, thereby preventing catastrophic failures and minimizing unplanned downtime.

Industrial Applications

• Emergency Shutdown (ESD): Provides rapid isolation and shutdown of critical equipment in oil refineries and offshore platforms.
• Burner Management Systems (BMS): Regulates ignition and fuel flow in high-capacity industrial boilers to mitigate combustion risks.
• Fire and Gas (F&G) Monitoring: Integrates diverse sensor inputs to trigger automated suppression and evacuation protocols.
• High-Pressure Protection: Monitors and controls pressure setpoints in chemical reactors to prevent over-pressurization events.

Strategic Operational Benefits

• Enhanced System Reliability: The QMR architecture ensures that the safety system remains operational even during a single-component failure, which maximizes plant availability.
• Rapid Execution Speeds: High-performance processing reduces scan times, allowing the system to meet stringent safety-loop response requirements for volatile processes.
• Streamlined Troubleshooting: Integrated diagnostics provide precise error codes via the front LED matrix and system software, which simplifies maintenance and reduces Mean Time To Repair (MTTR).
• Sustainable Lifecycle Support: The V2.0 module maintains backward compatibility with legacy FSC components, which protects capital investment while upgrading system performance.
