  4. Honeywell FC-USI-0001 Safety Manager Universal Safety Interface
Sale!
SKU: FC-USI-0001 V1.0

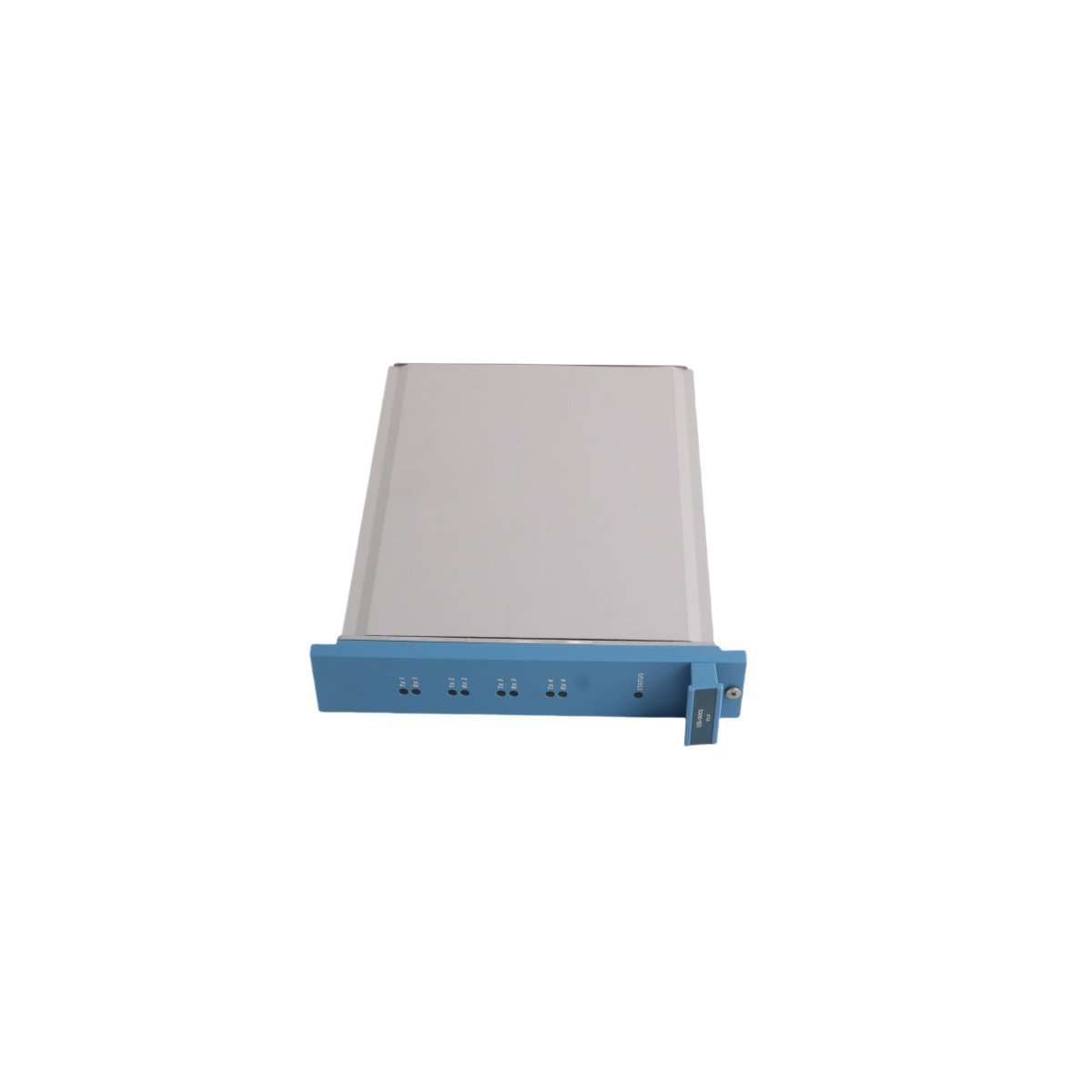

Honeywell FC-USI-0001 Safety Manager Universal Safety Interface

Request a Quote

Configured for high-integrity signal processing and data exchange within Safety Manager platforms, the Honeywell FC-USI-0001 V1.0 (FC-USI-0001 Universal Safety Interface) provides direct physical and electrical execution for safety-instrumented system communications.

Hardware Specifications

ParameterSpecification
ModelFC-USI-0001 V1.0
BrandHoneywell
OriginUSA
Weight0.72 kg
Dimensions3.5 cm x 22.5 cm x 17.4 cm
Operating TempIndustrial standard
Power ConsumptionSystem-dependent
Module TypeUniversal Safety Interface

Safety Manager System Integration

To begin with, the FC-USI-0001 serves as the primary gateway for data acquisition and protocol management in safety-critical loops. Furthermore, the architecture facilitates triple modular redundancy (TMR) 2oo3 state execution; consequently, this configuration ensures that logic solvers remain within a safe state upon the detection of input discrepancies. Additionally, galvanic isolation is implemented across all field interfaces in order to prevent noise propagation and to maintain signal integrity during common-mode transients.

Moreover, the unit performs continuous internal diagnostics to validate communication latencies and, at the same time, ensure synchronization with the primary safety processor. Subsequently, these diagnostic routines are performed without interrupting the primary safety function; therefore, the system operates seamlessly without requiring external calibration hardware. In other words, this design effectively minimizes manual maintenance requirements. Ultimately, the integration of these features provides the high-integrity performance that is required for complex safety-instrumented systems.

Frequently Asked Questions

Q: Does the FC-USI-0001 support hot-swapping under normal operating conditions?

A: The module is designed for hot-swapping within the Safety Manager rack; however, strict adherence to the system-specific replacement procedure is required to maintain the integrity of the safety loop and prevent an unintended trip.

Q: How does the module maintain synchronization in a redundant safety configuration?

A: The FC-USI-0001 utilizes a dedicated backplane bus for high-speed data exchange, which allows the interface to synchronize state data with redundant modules in the 2oo3 architecture, ensuring consistent execution across the safety cluster.

Field Installation Guidelines

  • Mounting: Ensure the module is seated squarely in the designated Safety Manager I/O rack. Verify the connector alignment to prevent pin deformation during insertion.
  • Cable Termination: Utilize shielded twisted-pair cabling for all signal inputs. Terminate the shield at the cabinet ground bus bar, ensuring a low-impedance path to earth to mitigate electromagnetic interference.
  • Segregation: Maintain physical separation between safety-critical signal wiring and high-voltage power lines or non-safety control cabling to reduce inductive coupling.
  • Environmental Sealing: Confirm that the cabinet housing the module provides sufficient protection against moisture and particulates as per the required IP rating for the installation site.
