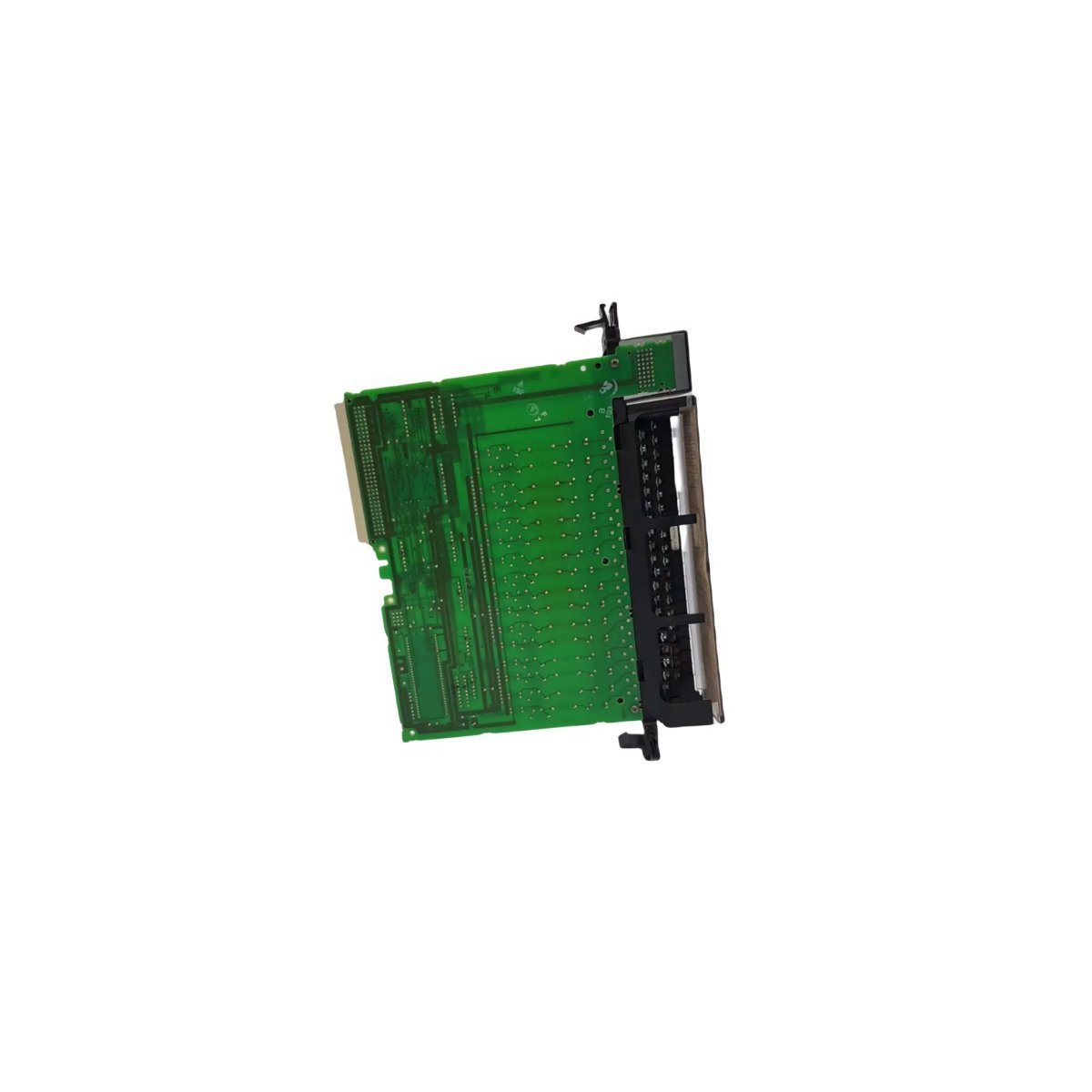

IC697MDL240 GE Fanuc PLC 120VAC Isolated 16-Channel Digital Input Card

The IC697MDL240 is a 16-point 120V AC discrete input module for the GE Fanuc Series 90-70 PLC. It features 16 isolated channels, a 20ms signal filter, and integrated LED diagnostics for reliable industrial signal monitoring.

Request a Quote

Product Overview

The GE Fanuc IC697MDL240 operates as a high-performance 16-point discrete input interface for the Series 90-70 PLC system. Engineers utilize this module to monitor 120V AC field signals from a variety of devices, including pushbuttons, limit switches, and proximity sensors. Because each of the 16 channels remains isolated from the others, the module accommodates signals from multiple power phases and disparate AC sources without interference. Consequently, this hardware acts as a critical link in process control environments—such as power plants and chemical refineries—where high-voltage signal integrity and deterministic response times are mechanical necessities.

Signal Processing and Diagnostic Logic

To maintain high data accuracy in electrically noisy plants, the IC697MDL240 employs a 20-millisecond input filter delay. This filtering logic effectively eliminates contact bounce and transient interference, ensuring the CPU receives clean logic transitions. Furthermore, the module utilizes capacitive input circuitry, which significantly improves heat dissipation and enhances the overall lifespan of the electronic components. For real-time troubleshooting, a row of 16 integrated LEDs provides immediate visual confirmation of the status for every individual input point. In addition, the hardware features a 0.25 Amp current draw from the 5V backplane bus, maintaining low thermal loading within the PLC chassis.

Integration and Secure Installation

Configuring the IC697MDL240 is efficient and straightforward via Proficy Machine Edition or standard legacy programming software. Operators execute the setup through an SNP or Ethernet TCP/IP connection, allowing for seamless remote or local commissioning. Moreover, the module incorporates a specialized mechanical key that locks into the backplane’s center rail. This safety mechanism prevents the accidental insertion of an incorrect module type during maintenance or replacement cycles. Because the hardware requires no physical jumpers or DIP switch settings, maintenance personnel can perform secure hot-swaps without risking configuration errors.

Technical Specifications

  • Manufacturer: GE Fanuc (Emerson)
  • Model Number: IC697MDL240
  • Product Series: Series 90-70
  • Input Points: 16 Isolated Points
  • Voltage Rating: 120 VAC
  • Input Filter Delay: 20 ms
  • On-State Current: 10 mA (Typical)
  • Off-State Leakage: 4 mA (Maximum)
  • Backplane Current Draw: 0.25 A at 5 VDC
  • Operating Temperature: 0 to 60 deg C
  • Weight: 0.62 kg
  • Dimensions: 4 cm x 21.8 cm x 29.3 cm
  • Origin: USA
