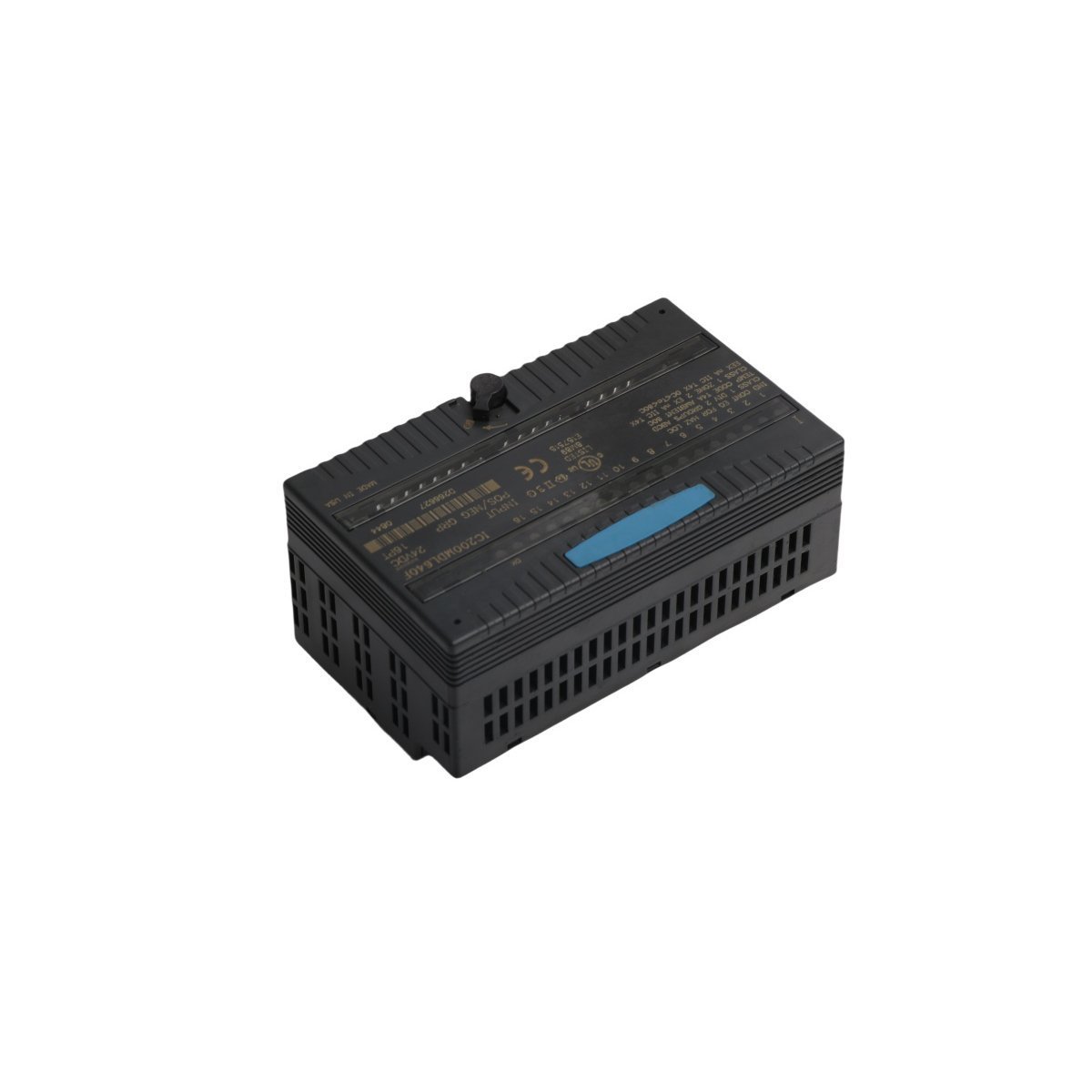

GE Fanuc IC200MDL640 VersaMax 24VDC 16-Point Discrete Input Module

The GE Fanuc IC200MDL640 is a 16-point, 24VDC discrete input module for the VersaMax PLC series. It features positive logic sensing, integrated signal filtering, and a compact modular design, providing reliable data acquisition for diverse industrial automation and process control applications.

Request a Quote

Technical Overview

The IC200MDL640 serves as a high-density discrete input interface within the GE Fanuc (Emerson) VersaMax PLC ecosystem. This specific module provides 16 distinct input points designed to detect state changes from field devices such as sensors, pushbuttons, and limit switches. By converting these 24VDC field signals into logic-level data, the module enables the central processing unit to execute real-time control decisions with high precision.

Engineered with a focus on signal integrity, the module incorporates robust input filtering. This feature effectively suppresses electrical noise and contact bounce, which prevents false triggering in high-interference industrial environments. Furthermore, its positive logic (sourcing) configuration ensures compatibility with standard industrial wiring practices, while the compact footprint optimizes DIN rail space within control cabinets.

Key Functional Characteristics

  • Input Density: 16 discrete points arranged for efficient wiring and high-density I/O configurations.
  • Operating Voltage: Supports a nominal 24VDC range with a maximum operational threshold of 30VDC.
  • Logic Type: Configured for positive logic (sink) inputs, responding to voltage applied to the input terminals.
  • Signal Stability: Integrated hardware filters minimize transient interference and signal fluttering.
  • Modular Integration: Features a hot-swappable design when used with appropriate VersaMax carriers, reducing downtime during maintenance.
  • Diagnostic Indicators: Includes front-facing LED status indicators that provide immediate visual confirmation of individual point activity.

Technical Specifications

  • Manufacturer: GE Fanuc / Emerson
  • Series: VersaMax I/O
  • Input Voltage Range: 0 to 30 VDC
  • Nominal Voltage: 24 VDC
  • Number of Points: 16 (single group)
  • On-State Voltage: 15 to 30 VDC
  • Off-State Voltage: 0 to 5 VDC
  • On-State Current: 2.0 to 5.5 mA
  • Filter Time: 1.0 ms (typical)
  • Power Consumption: 50mA @ 5VDC (Backplane current)
  • Dimensions: 110mm x 58mm x 65mm
  • Weight: 0.1 kg

Industrial Applications

Due to its versatile design, the IC200MDL640 frequently operates in automated assembly lines, material handling systems, and water treatment facilities. Its reliability in extreme temperatures makes it suitable for energy management and smart building infrastructure where consistent data acquisition is critical. Consequently, engineers often specify this module for projects requiring a balance of cost-efficiency and long-term durability.
