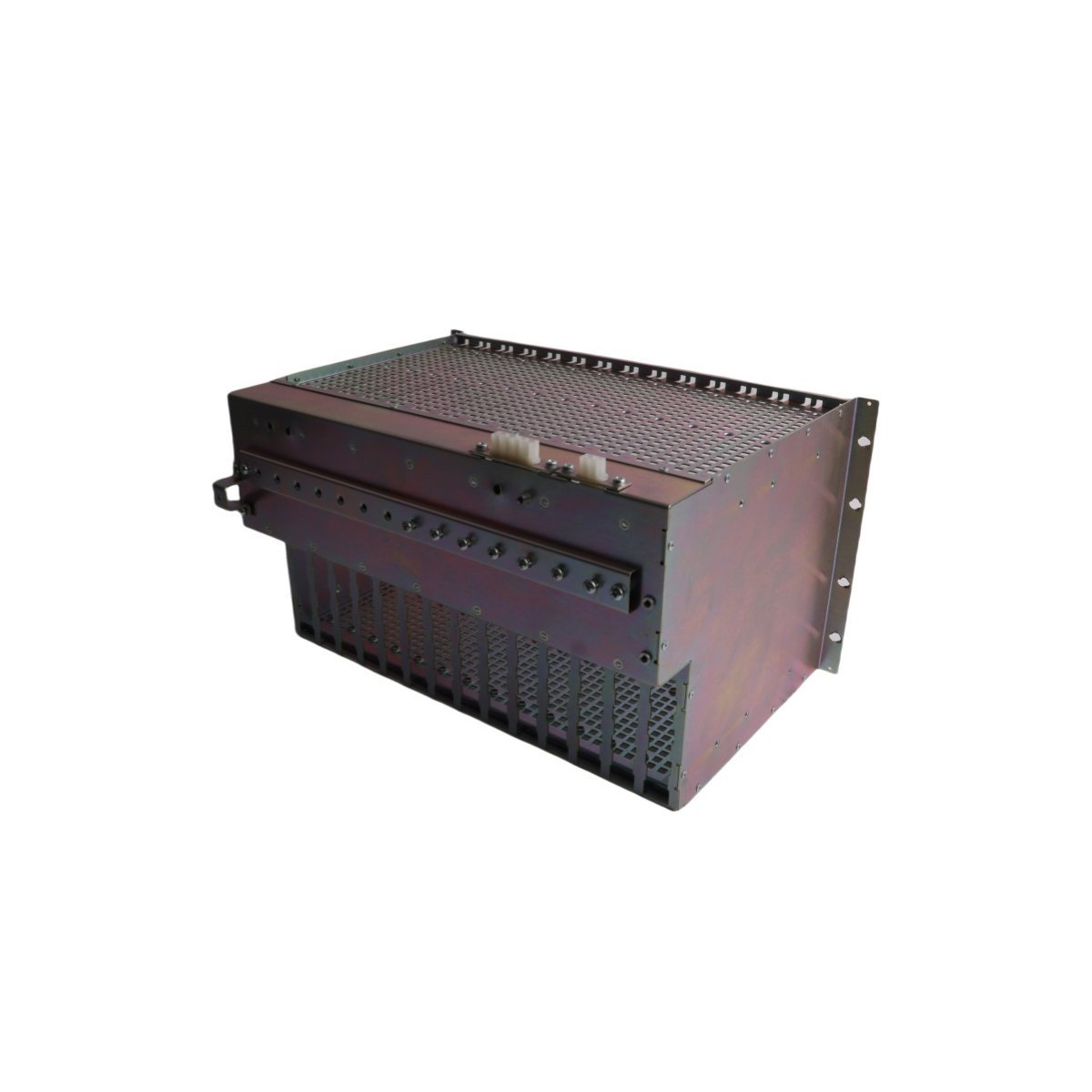

ICS Triplex T8300 Trusted Expander Processor

Technical Overview

The ICS Triplex T8300 operates as the foundational communication and control interface for the Trusted Expander Chassis. This module functions as a bridge that extends the high-speed, safety-critical backplane of a main controller rack to remote or secondary I/O racks. Because the Trusted system utilizes a Triple Modular Redundant (TMR) architecture, the T8300 ensures that the “voting” logic and data synchronization remain consistent across distributed hardware. By providing this seamless expansion capability, the processor allows for the integration of thousands of I/O points while maintaining the strict timing requirements of a SIL 3 safety-instrumented system.

Operational Logic and Data Synchronization

The T8300 manages the bi-directional flow of data between the main processor chassis and the expander rack’s I/O modules. To ensure maximum reliability, the module utilizes a specialized Expander Interface (EI) protocol that incorporates rigorous error-checking and fault-detection algorithms. Furthermore, the unit features three independent processing paths to match the TMR structure of the main controller. Consequently, even if a single communication path experiences interference or a hardware fault, the remaining two paths maintain the integrity of the safety loop.

In addition to its data routing functions, the T8300 facilitates comprehensive system diagnostics by monitoring the health of the expander backplane. Moreover, since the module supports the high-speed “Expander Bus,” it delivers near-instantaneous updates of field sensor states to the central processors. To further enhance system availability, the T8300 incorporates hot-swap capabilities. This design allows maintenance teams to replace a processor module without de-energizing the rack or tripping the safety process. As a result, the T8300 serves as a critical link that enables the scalability of safety systems in massive industrial complexes, such as ethylene plants or LNG terminals.

Key Technical Characteristics

• Brand: ICS Triplex (Rockwell Automation)
• Model Number: T8300
• Product Series: Trusted Safety System
• Module Type: Expander Processor / Interface Module
• Safety Integrity: SIL 3 (IEC 61508)
• Architecture: Triple Modular Redundant (TMR)
• Communication Interface: High-speed Trusted Expander Bus
• Diagnostic Support: Real-time monitoring of backplane and I/O health
• Mounting: Dedicated processor slots in the Trusted Expander Chassis
• Redundancy: Full hardware and signal path triplication

Primary Applications

• Extending safety-critical I/O capacity for large-scale offshore production platforms.
• Managing distributed emergency shutdown (ESD) loops in petrochemical facilities.
• Facilitating remote I/O placement for fire and gas (F&G) detection systems.
• Coordinating high-density safety interlocks in power generation utilities.
• Linking multiple hardware racks in centralized burner management systems (BMS).
