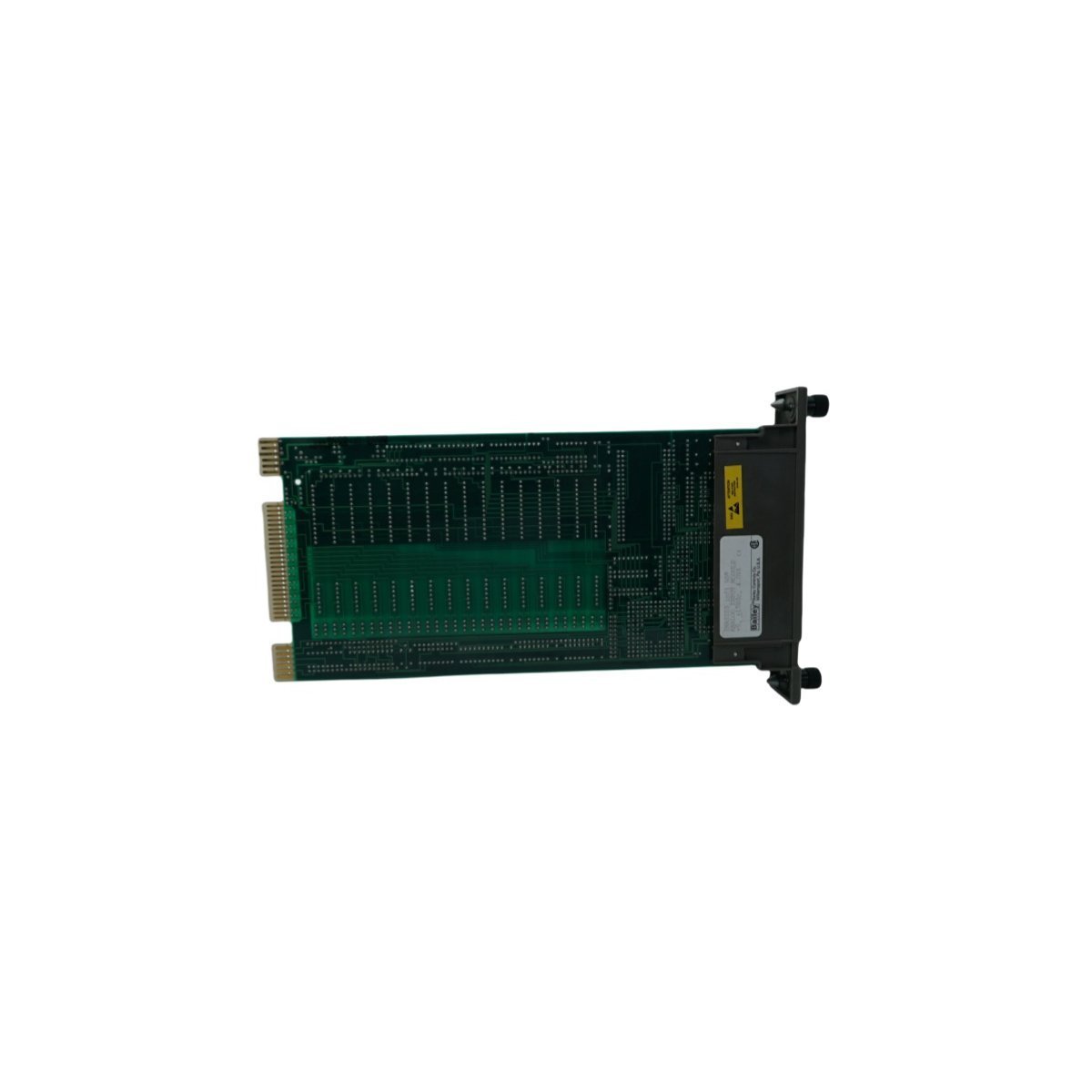

ABB IMASI03 Bailey Analog Input Slave Module

The ABB IMASI03, also known as the IMASI03 Analog Input Slave Module, is a critical component of the ABB Bailey Infi 90 / Harmony Rack (HR) Series DCS platform. This module functions as a high-density, high-precision slave interface that digitizes physical process transmitter signals and transfers them directly to a master controller across the rack’s internal backplane bus.

Hardware Specifications

Process Control & Multi-Signal Interfacing

The ABB IMASI03 Universal Analog Input Slave Module features software-configurable channel parameters that eliminate the need for analog hardware filtering or field signal conditioners. It supports an array of industrial sensors, providing galvanic isolation parameters across channel-to-channel and channel-to-system bus matrices to shield internal system-side microprocessors from high field common-mode voltages.

The onboard Sigma-Delta analog-to-digital converter executes continuous parallel sampling, tracking transient spikes while filtering high-frequency industrial noise. It works directly with standard Harmony Rack master units, executing real-time data serialization along the backplane bus without introducing latency.

Frequently Asked Questions

Q: Can the IMASI03 accept thermocouple inputs directly without an external cold junction compensation module?

A: Yes, the IMASI03 natively processes direct thermocouple and RTD terminations when paired with the corresponding Bailey termination unit (e.g., NTDI01 or NTDI02) containing a localized cold junction reference sensor.

Q: How is hardware diagnostics handled if an input channel experiences an open loop?

A: The module executes continuous diagnostics. A broken sensor wire or out-of-range current loop activates an immediate channel fault condition, flags the engineering workstation, and sets the system value to a configurable fail-safe status.

Field Installation Guidelines

• Harmony Rack ESD Protection: Always wear a grounded anti-static wrist strap when sliding the 3.5 cm card into the Harmony Rack slot. Do not touch the open rear edge connectors during insertion.
• Termination Unit Configuration: Verify the dip switch or jumper settings on the companion termination unit match the input signal type (e.g., 4-20 mA vs. Thermocouple) prior to applying external loop power.
• Backplane Bus Address Registration: Ensure the module slave address is explicitly defined via the onboard address switches before locking the card in place and executing system synchronization.
