Available brand new original stock ABB PM564-TP-ETH 1SAP120900R0071 Central Processing Unit. High-speed communication processing for AC500/800xA series. Global shipping on all industrial orders. Contact us today.

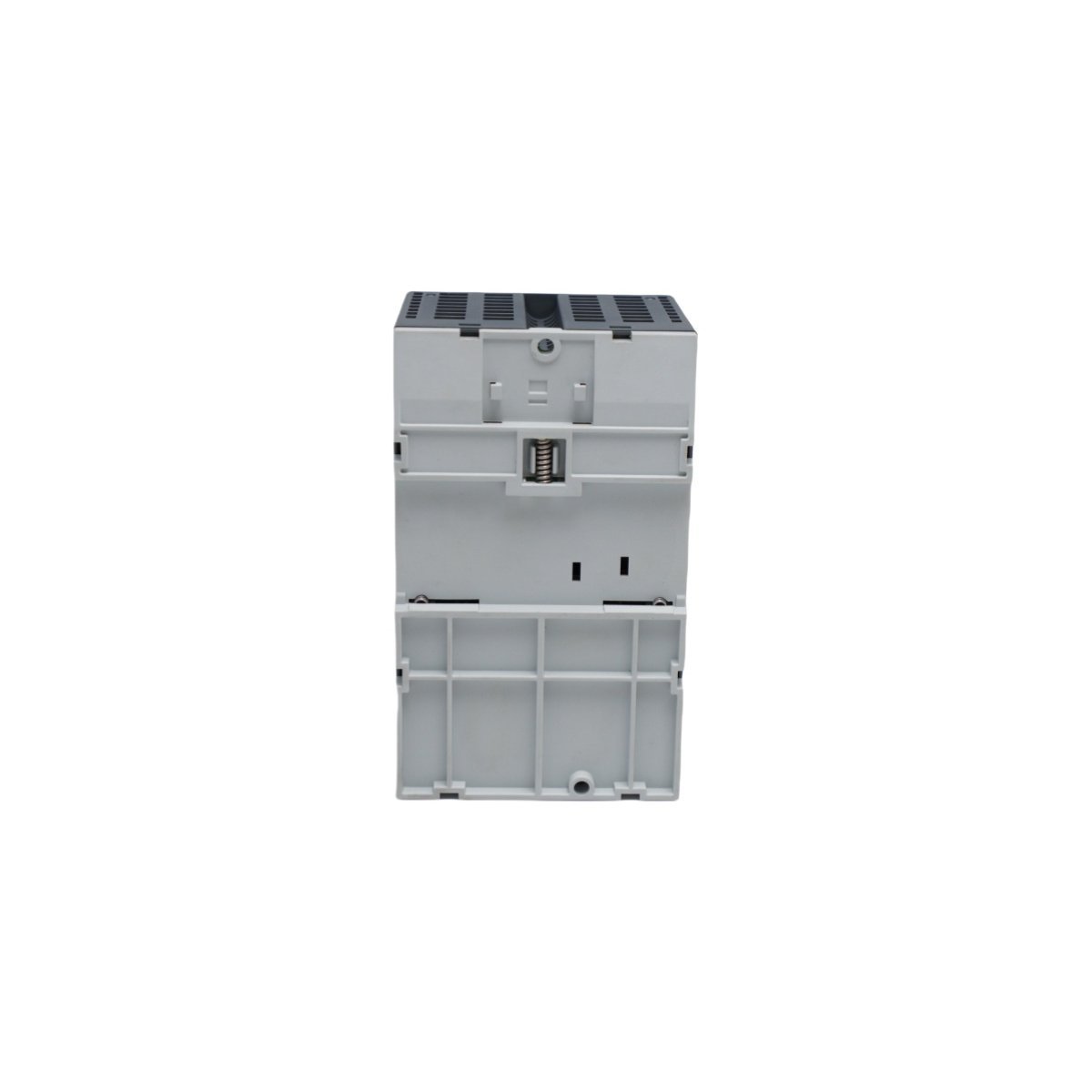

The ABB PM564-TP-ETH, also cataloged as the 1SAP120900R0071 Central Processing Unit, serves as the primary PM564-TP-ETH Central Processing Unit utilized to execute localized digital and analog logic operations across Advant OCS/800xA platforms.
| Parameter | Specification |
|---|---|
| Model | PM564-TP-ETH 1SAP120900R0071 |
| Brand | ABB |
| Origin | Sweden |
| Module Type | Central Processing Unit |
| System Platform | Advant OCS / 800xA / AC500 Family |
| Communication Service | Ethernet router interface support |
| HS Code | 8537101190 |
| Weight | 0.3 kg |
| Dimensions | 8.2 x 7.3 x 13.5 cm |
| Operating Temp | 0 to +60 deg C (Standard operational spectrum) |
| Power Consumption | Base unit draw depends on integrated I/O loading |
The PM564-TP-ETH 1SAP120900R0071 coordinates real-time processing tasks utilizing dedicated dual expansion slots for system scalability. The integrated onboard network hardware maintains stable backplane bus communication velocity and facilitates data encapsulation over Profinet / EtherNet/IP deterministic networks. This system layout ensures rapid execution of control loops while supporting direct I/O density scaling configuration limits without processing degradation.
Q: How is the firmware flash compatibility verified for the 1SAP120900R0071 CPU?
A: Firmware synchronization must match the active engineering software framework. Firmware binaries must be flashed via the localized Ethernet interface port or compatible memory card before application deployment.
Q: What are the backplane current consumption restrictions during full expansion slot usage?
A: Total backplane current load depends on the connected expansion I/O module profile. If the internal power bus limit is exceeded, an external 24 VDC auxiliary power line must be routed to the system rail.
Q: Does this Central Processing Unit support hot-swap extraction under power?
A: No. Removing the CPU card or its underlying terminal blocks while energized will disrupt the backplane communication loop and can induce hard failure states in adjacent I/O modules.
The Emerson DeltaV SISâ„¢ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
The Emerson Ovation 1P00028G01 Remote Node Transition Panel provides robust signal routing and high-integrity electrical isolation for legacy Ovation Distributed Control Systems (DCS). Operating at 220V AC across an ultra-wide temperature range of -40°C to +85°C, this compact transition panel eliminates field line noise and ensures reliable, deterministic peer-to-peer communication between remote I/O nodes and central controllers in demanding industrial environments.
