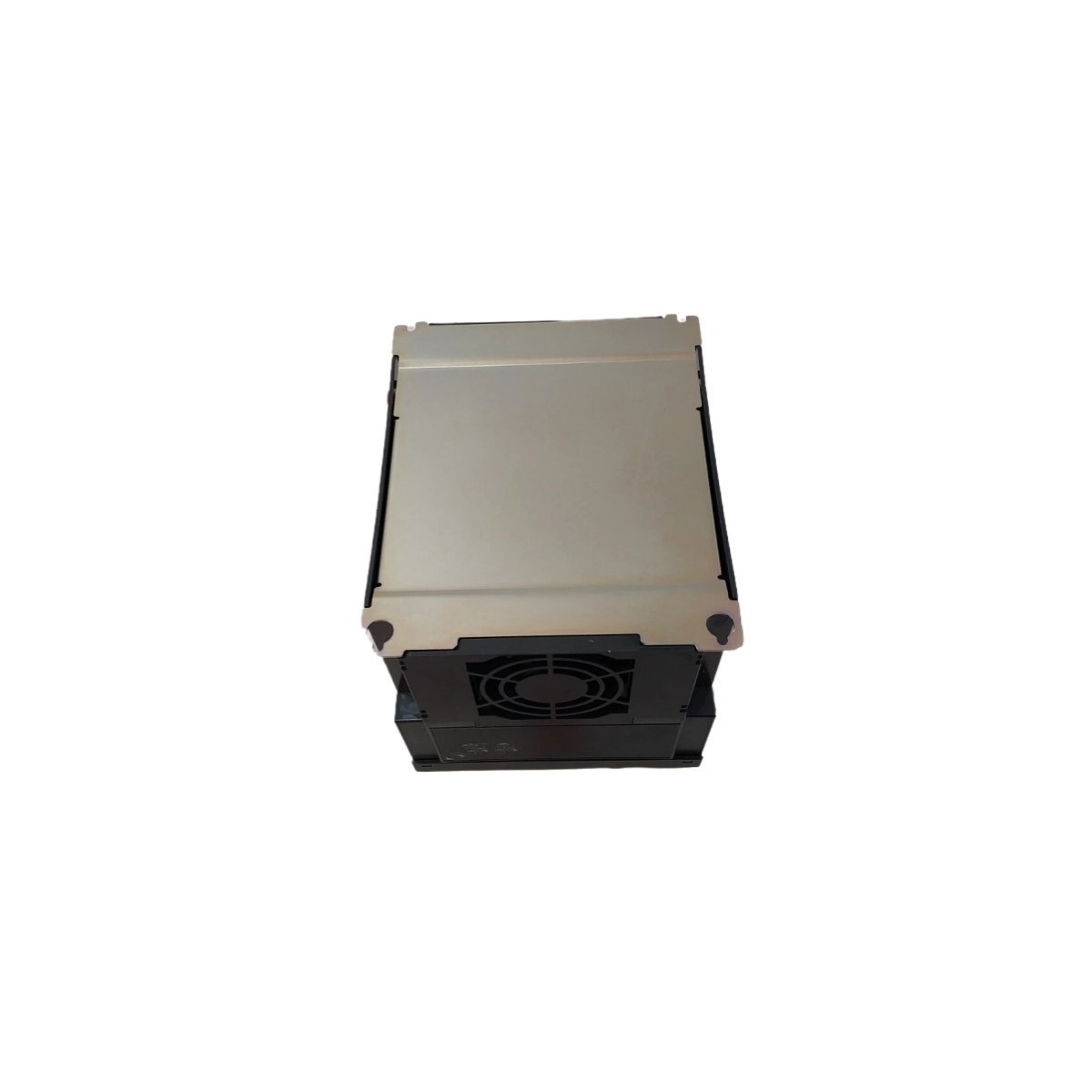

The Schneider Electric ATV212HU75N4 is a 7.5kW (10HP) Altivar 212 variable speed drive designed for HVAC fans and pumps. It features 380-480V three-phase input, native BACnet/Modbus support, and IP21 protection for high-efficiency building management applications.
The Schneider Electric ATV212HU75N4 functions as a dedicated variable speed drive (VSD) within the Altivar 212 series, specifically optimized for building management systems (BMS). This 7.5 kW (10 HP) drive focuses on fan and pump applications, where energy efficiency and integration into HVAC networks remain the highest priorities. Unlike general-purpose drives, the Altivar 212 utilizes specialized technology to reduce harmonic distortion without the need for additional filters, protecting sensitive electronics within the building.
Furthermore, the ATV212HU75N4 simplifies the automation of ventilation and pumping stations. It supports various communication protocols natively, allowing it to communicate directly with climate control systems. Consequently, facility managers can achieve significant energy savings by precisely matching motor speed to the actual demand of the HVAC system.
This drive utilizes a unique “Reduced Capacitance” technology that minimizes current peaks and extends the lifespan of internal components. To begin with, the ATV212HU75N4 features a comprehensive Monitoring mode. By utilizing the MODE key and navigating with the UP/DOWN interface, operators gain immediate access to over 30 diagnostic data points, including motor frequency and output current.
Additionally, the drive provides a simplified commissioning process. Technicians can quickly reset parameters to match a 50 Hz or 60 Hz motor nominal frequency, ensuring the drive aligns with local power standards. Moreover, the unit incorporates integrated protection against motor overloads and short circuits, which ensures long-term operational safety in unmanned mechanical rooms.
The ATV212HU75N4 excels in commercial infrastructure and industrial HVAC environments. For instance, in large office buildings, the drive regulates air handling unit (AHU) fans to maintain indoor air quality while reducing power consumption. Similarly, in water management, it controls centrifugal pumps to maintain constant pressure across various floor levels. Because the drive operates with low acoustic noise, it remains a preferred solution for installations in hospitals, schools, and hotels where silent operation is critical.
