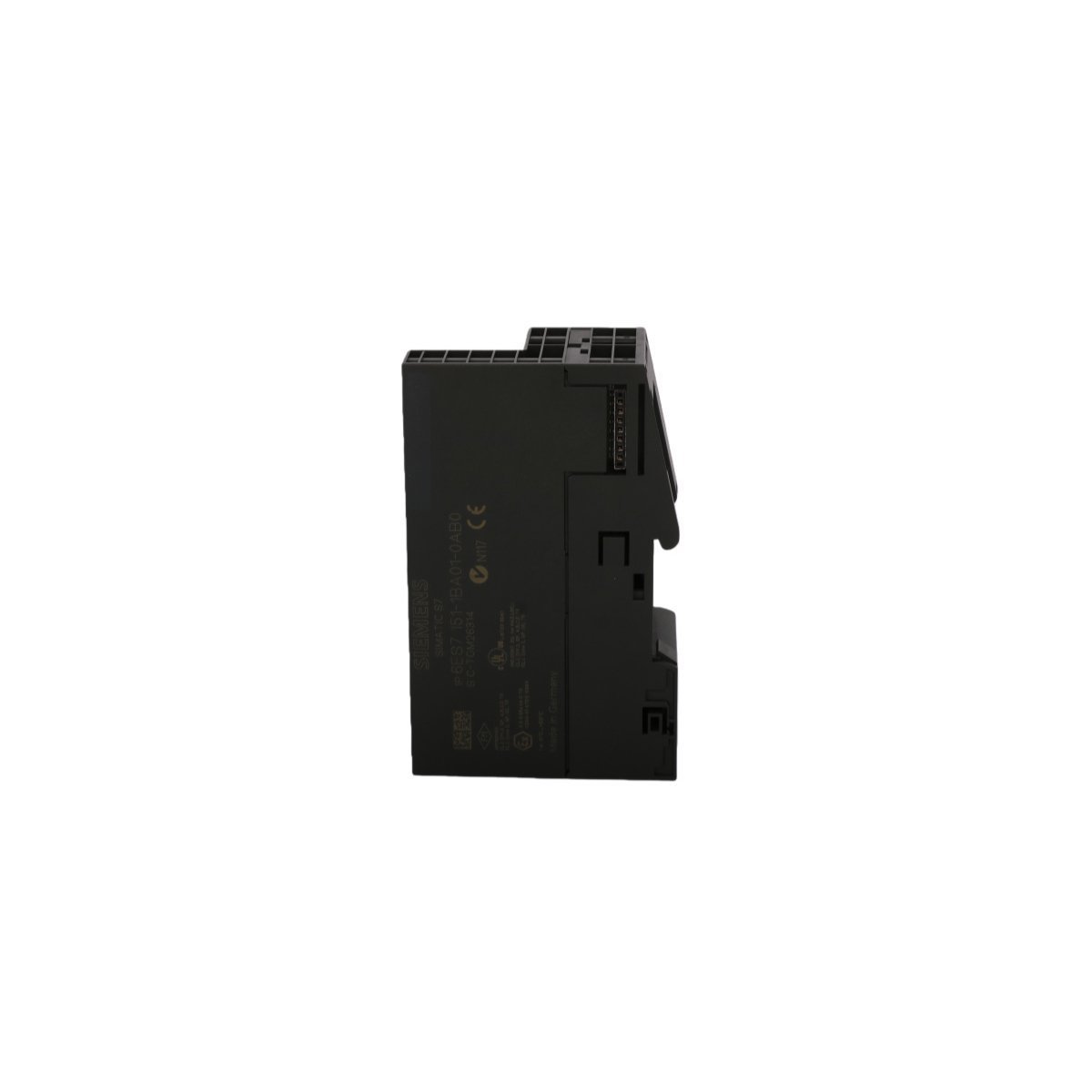

Siemens 6ES7151-1BA00-0AB0 SIMATIC ET 200S PROFIBUS DP Interface Module

Technical Product Overview

The Siemens 6ES7151-1BA00-0AB0 serves as the primary communication gateway for the SIMATIC ET 200S distributed I/O system. This Interface Module (IM 151-1 High Feature) connects the decentralized peripheral modules to a PROFIBUS DP master, such as an S7-300 or S7-400 controller. By managing the high-speed data exchange between the field level and the central PLC, the 6ES7151-1BA00-0AB0 enables flexible, modular automation architectures that reduce wiring costs and improve system scalability.

Operational Characteristics and Communication

This module utilizes the PROFIBUS DP V1 protocol to ensure rapid and deterministic data transmission across the industrial network. Because it supports a transmission rate of up to 12 Mbit/s, it handles time-critical automation tasks with ease. The 6ES7151-1BA00-0AB0 manages up to 63 peripheral modules on a single rack, including power modules, digital/analog I/O, and motor starters. Furthermore, the module facilitates extensive diagnostics; it reports channel-specific faults and module status directly to the master controller, allowing maintenance teams to pinpoint issues without physical inspection of every rack.

Key Technical Specifications

• Manufacturer: Siemens
• Model Number: 6ES7151-1BA00-0AB0
• Product Series: SIMATIC ET 200S (IM 151-1 HF)
• Interface Type: PROFIBUS DP
• Data Transfer Rate: 9.6 kbit/s to 12 Mbit/s (Automatic Detection)
• Address Volume: 244 bytes for both Input and Output data
• Module Capacity: Supports up to 63 I/O modules per station
• Maximum Bus Length: Up to 2 meters per station (internal backplane)
• Supply Voltage: 24 V DC
• Current Consumption: 200 mA typical
• Connection Technique: 9-pin Sub-D socket
• Dimensions: 45 mm x 119.5 mm x 75 mm

Strategic Industrial Applications

Industrial integrators deploy the 6ES7151-1BA00-0AB0 in decentralized environments where I/O points are distributed across large distances. Consequently, the module is essential for:

• Distributed Control Architectures: Linking remote sensors and actuators back to a central control room via a single PROFIBUS cable.
• Automated Logistics: Managing I/O for conveyor belts and sorting systems in large warehouses.
• Machine Tool Manufacturing: Providing a compact interface for localized I/O on CNC machines and robotic cells.
• Food and Beverage Processing: Operating in distributed wash-down areas where local control panels reduce the complexity of long-run cable trays.
