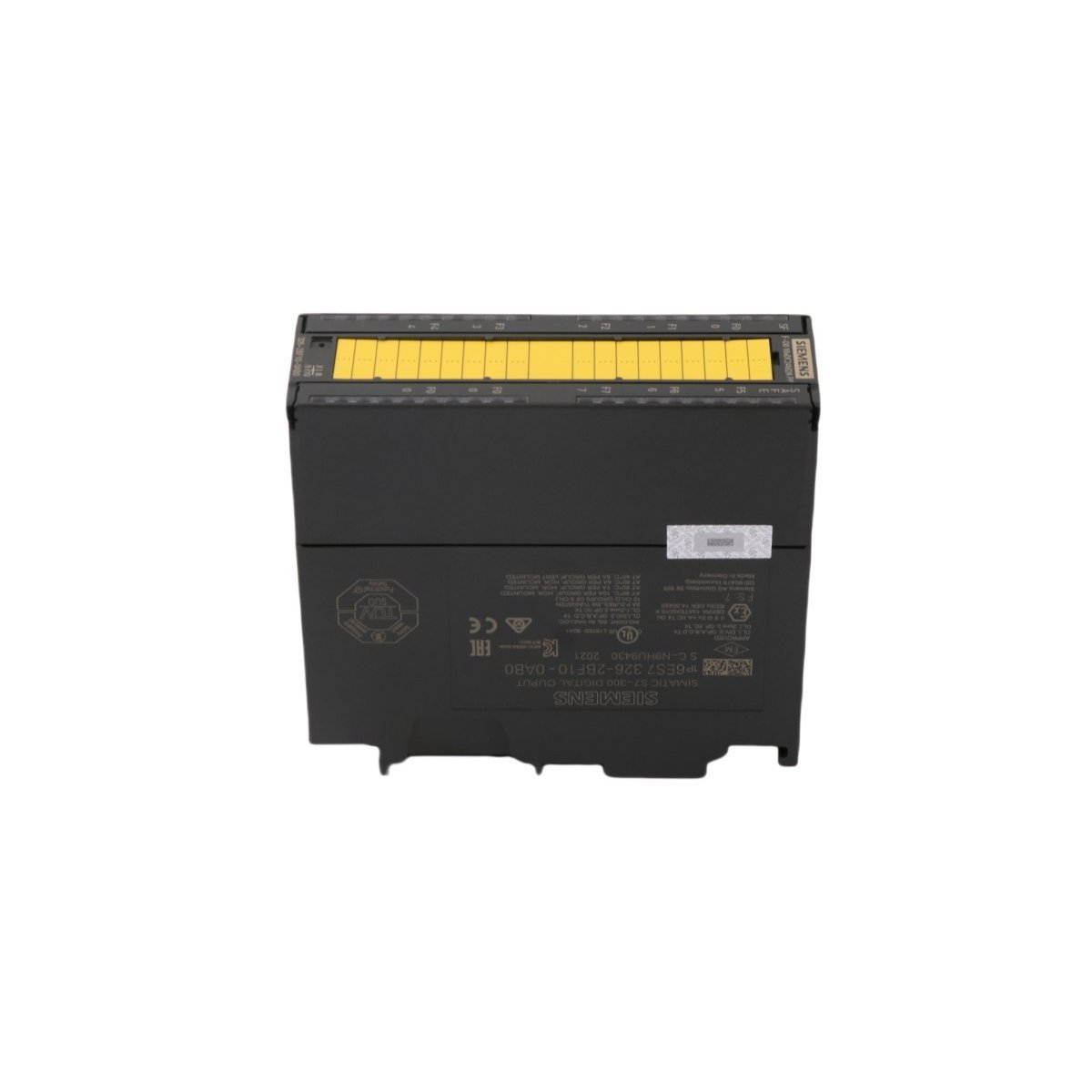

The Siemens 6ES7326-2BF10-0AB0 is a fail-safe digital output module for S7-300F systems. It features 10 channels at 24V/2A with SIL 3 safety certification.
Siemens 6ES7326-2BF10-0AB0 to establish fail-safe control within SIMATIC S7-300F systems. This module specifically provides ten transistor outputs for critical safety applications. Furthermore, each channel delivers up to 2 A at 24 V DC for driving actuators. The device achieves SIL 3 certification according to IEC 61508 standards for high-risk environments. Additionally, it meets Performance Level e (PL e) requirements under ISO 13849-1. Users benefit from integrated Load Voltage Monitoring (LVM) to detect supply failures instantly. The module also reports short-circuit and overvoltage conditions directly to the CPU. Operators can observe individual channel status through dedicated LED indicators on the front panel. Moreover, optoelectronic isolation protects the internal bus from external electrical disturbances. Facilities typically install this unit in emergency stop circuits or safety guard monitoring systems. The compact 40 mm width allows for dense configuration within control cabinets. Configuration occurs seamlessly via STEP 7 software with distributed safety functions. Consequently, this component ensures maximum availability and reliability for automated production lines.
| Parameter | Specification |
|---|---|
| Model Number | 6ES7326-2BF10-0AB0 |
| Product Type | F-Digital Output Module (SM 326) |
| Compatible System | SIMATIC S7-300F / F-System |
| Number of Outputs | 10 Channels |
| Output Type | Transistor (P-switching) |
| Rated Load Voltage | 24 V DC |
| Output Current | 2 A per channel |
| Safety Rating | SIL 3 (IEC 61508), PL e (ISO 13849-1) |
| Switching Frequency | Max 25 Hz (Resistive Load) |
| Isolation | Optoelectronic (Channel to Bus) |
| Diagnostics | Short-circuit, Overvoltage, LVM, Wire Break |
| Connector | 40-pin Front Connector Required |
| Module Width | 40 mm |
| Operating Temperature | -20°C to +60°C |
| Weight | Approx. 0.5 kg |
| Origin | Germany |
| HS Code | 8537101190 |
